Application:
Hydraulic lubrication system refueling and regular maintenance
Hydraulic lubrication system bypass filtration
Product Performance:
1. The oil filter cart is an ultra-portable fuel oil filter machine.
2. The machine is easily to carry, can fill oil to any hydraulic lubrication equipment in various circumstances and purify the oil.
3. The coarse filtration of suction port can protect the pump and extend the life of the main filter.
4. The precision filter chosen by different users for different precision, and can achieve the desired results.
Technical parameters:
| Model | BLYJ-6-*/** | BLYJ-10-*/** | BLYJ-16-*/** |
| Rated flow( L/min) | 6 | 10 | 16 |
| Temperature(°C) | 6-80 | ||
| Recommended viscosity (CSt) | 10-160 | ||
| Rated pressure (Mpa) | 0.4 | ||
| The original pressure loss (Mpa) | ≤0.02 | ||
| First filtration precision before pump (μm) | 40 | ||
| Secondary filtration accuracy after pump (μm) | 3,5,10,20,40 | ||
| Voltage (V) | Three-phase AC380V Two-phase AC220V | ||
| Motor Power (kw) | 0.18 | 0.25 | 0.35 |
| Weight kg) | 13 | 16 | 18 |
| Dimensions(mm) | 350x200x510 | 400x200x510 | 420x200x510 |
Note: * Secondary precision filter accuracy, such as 003 means 3 um
** The applicable media: generally hydraulic oil
BH: water, glycol
V: phosphate ester hydraulic fluids

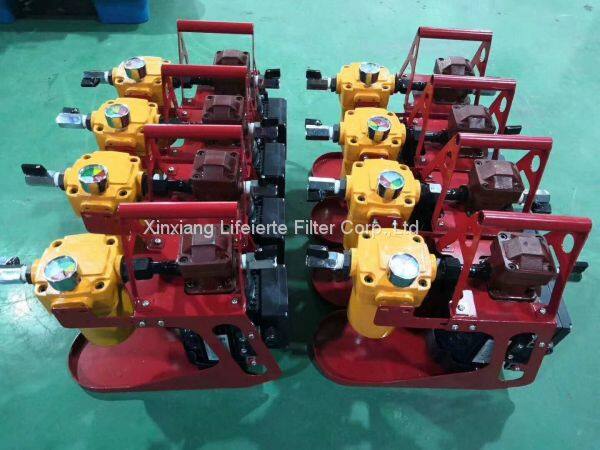

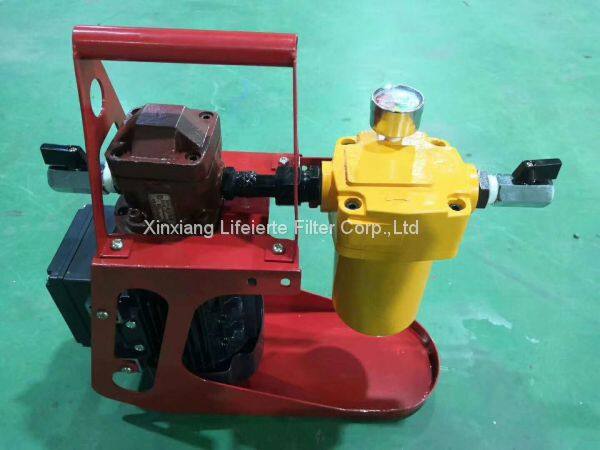

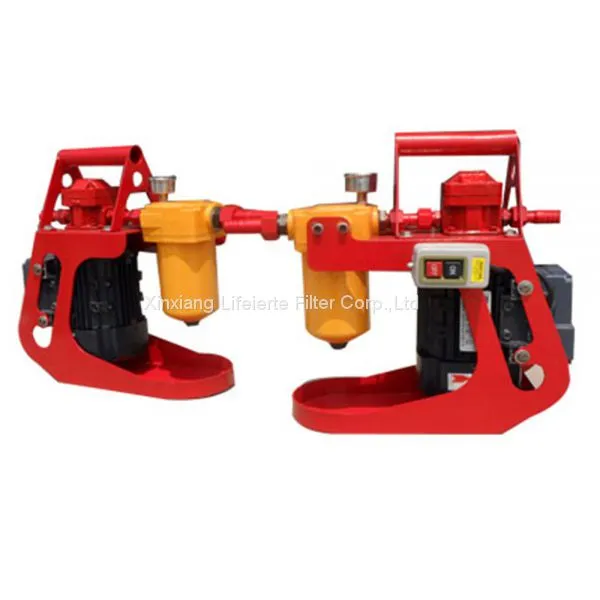

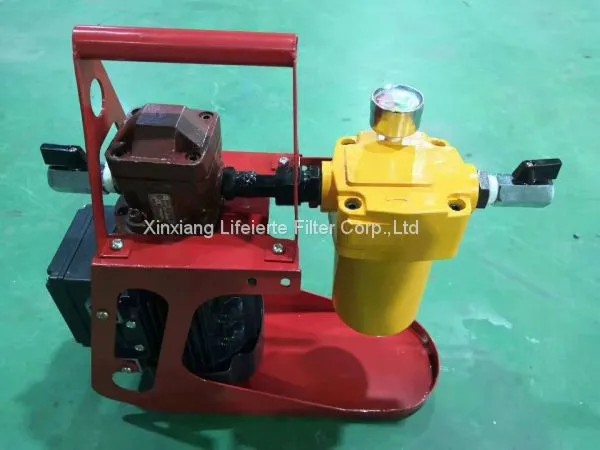

Exactly Pictures:
