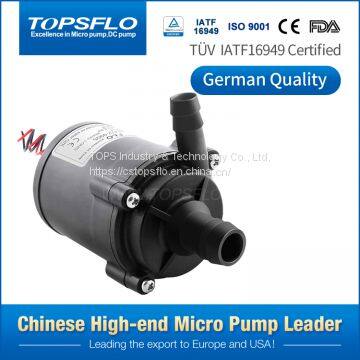

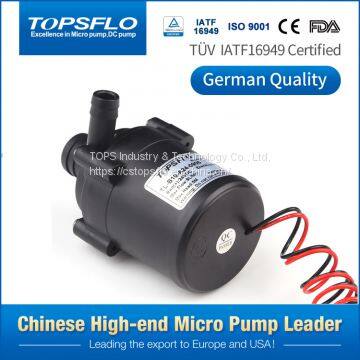

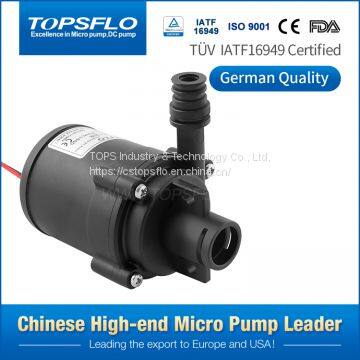

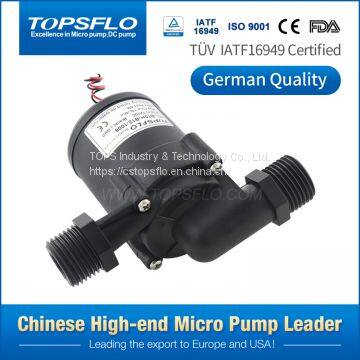

12v dc centrifugal pump,mini circulation 12v dc centrifugal pump

FOB Price

USD $11.78 - $17.88 / Piece

1 Piece(Min.Order)

Supply Ability 200000 Piece / Pieces per Month
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Other

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	TOPSFLO	Place of Origin:	China	Model Number:	TL-B10
Power:	Electric	Usage:	Water	Standard or Nonstandard:	Standard
Pressure:	High Pressure

Product Description

12v dc centrifugal pump,mini circulation 12v dc centrifugal pump

Applications

• Household battery water pump • Water dispenser, Water Coolers • Automotive air conditioning • Carbonation, Coffee Maker, Beverage Dispenser • Air-conditioner Drain • Chillers, Cooling Circulation,

• Home Appliance Boosting • Evaporative coolers • General application

Company Information

Product Description

Product Specification:

Model	Product Code	Max Water Flow (L/Min)	Rated Voltage(DC)	Rated Current (A)	Max Water Head(M)	Rated Power(W)
B10	TL-B10-A12-0703	7	12VDC	0.54	3	6.48
	TL-B10-A24-0703	7	24VDC	0.35	3	8.4
	TL-B10-B12-0703	7	12VDC	0.54	3	6.48
	TL-B10-B24-0703	7	24VDC	0.35	3	8.4
	TL-B10-C12-0703	7	12VDC	0.54	3	6.48
	TL-B10-C24-0703	7	24VDC	0.35	3	8.4
	TL-B10-A12-0905	9	12VDC	1.38	5	16.56
	TL-B10-A24-0905	9	24VDC	0.65	5	15.6
	TL-B10-B12-0905	9	12VDC	1.38	5	16.56
	TL-B10-B24-0905	9	24VDC	0.65	5	15.6
	TL-B10-C12-0905	9	12VDC	1.38	5	16.56
	TL-B10-C24-0905	9	24VDC	0.65	5	15.6
	TL-B10-A24-1208	12	24VDC	1.3	8	31.2
	TL-B10-B24-1208	12	24VDC	1.3	8	31.2
	TL-B10-C24-1208	12	24VDC	1.3	8	31.2

Characteristics:

Max Flow Rate	7L/min 9L/MIN 12L/MIN
Max Static Lift	3M 5 M 8 M
Rated Voltage	12V / 24V
Impeller Type	Closed impeller
Motor Type	brushless DC motor
Liquid Temperature	-40-100°C
Ambient Temperature	-40-70°C
Media	Pure Water,Beverage, antifreeze
Working Voltage Range	6~18V or 12~28V
Power Consumption	1~32W
Noise Class form 1M	40dB /Max
Ideal Life Time	20000 Hours
Working Mode	Continuous
Power Supply	DC power supply, battery
Protection Functions	1. Polarity protection 2. Blocked protection
Remarks	Can't dry-running, not Self-priming
customized functions	1.PWM, 0~5V speed control, 2.Submersible 3.Solar panel driven directly 4.FG(RPM) signal wire
The technical parameters above is only for your reference, for more details , please feel free to contact us

Get more Technical data, please click here

Product Features:

1.Advanced magnetic driving technology for static-seal, without any leakage forever
2.Durable permanent magnetic rotor with one-off injection incorporated impeller in smooth balance
3.Heavy duty work, can sustain continuous 24 hours work
4.Special designed high efficiency closed-type impeller
5.Sustain 100°C hot water circulation
6.All wetted materials FDA approved to be safety usage
7.Low or no maintenance
8.Can customized

Application

Typical Applications

• Household battery water pump • Water dispenser, Water Coolers

• Automotive air conditioning • Carbonation, Coffee Maker, Beverage Dispenser

• Air-conditioner Drain • Chillers, Cooling Circulation,

• Home Appliance Boosting • Evaporative coolers

Advantage:

Brushless Mini DC water pumps work Note:

1. Power to DC Power Supply, reverse polarity is strictly prohibited, generally red positive power supply, black to negative
2. pumps in addition to immersible work can be identified, the rest can not be immersed in water, or they will cause a short circuit burned.
3. pumps is prohibited by the strong shock, fall from a height on the ground and other external damage.
4. pumps can not take strong acid and other corrosive liquids and granular solids with a tiny hard. Can not cycle more thick viscosity liquids, such as oil, high concentrations of oil and other fluids vast.
5. pumps was not long-time stall, causing the motor burned.
6. pumps can not withstand high voltage shock.

Customers how to choose the pump?
1. first determine the voltage, current,water head and flow, diameter size, pump water head is generally the subject of the water does not flow when pumped up to the static head, if a customer requires pumping the water to a certain height and then to maintain a certain water flow, select the desired water head must be higher than the specified pumping height. This specific by the supplier according to the actual conditions. Can refer to lift flow graph.
2. to determine the dimension and form (threaded interface, inlet and outlet orientation, aperture size, etc.)
3. to determine the job requirements (temperature, medium, work time and frequency)
4. to determine the functional requirements (time control, pressure control, flow control, speed, etc
