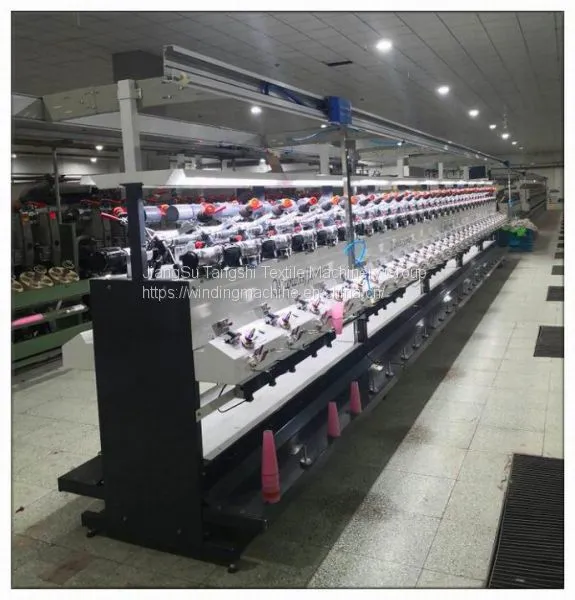

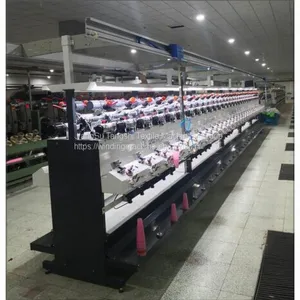

High speed Hard cone winding machine for paper cone/plastic cone rewinding
- SHANGHAI PORT
- T/T L/C
- 20 days
You May Like
-
Hank to cone winding machine for rewinding hank yarns like Cotton/Acrylic yarns
-
Mask earloop elastic cord making machine for making round and flat elastic tape
-
Precision Pineapple cone winding machine for filament yarn winding
-
High production Spandex air covering machine for making ACY yarn
-
Flat earloop tape making machine for N95 Mask using 4mm/5mm width
-
Round Mask ear elastic cord tape making machine 3mm diameter
Product Details
| Brand Name | TANGSHI | Place of Origin | China | |
| Model Number | TS008M | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 year | Weight | 400KG/SECTION | |
| Dimension(L*W*H) | 2.2 X 1.25 X 1.58 M/SECTION | Production Capacity | 300-1000 METER/MIN | |
| Voltage | 380V/3 PHASES | Certification | CE | |
| Application | THREAD CONE TO CONE REWINDING USING | Condition | New | |
| Power(W) | 0.09KW/SPINDLE | Automatic Grade | Semi-Automatic | |
| Memory Capacity | PLC |
Product Description
Application:

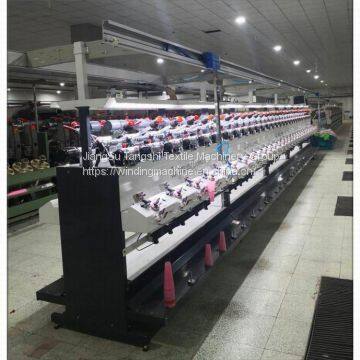

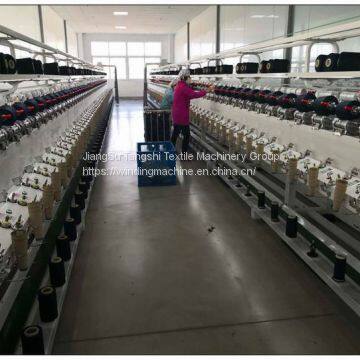

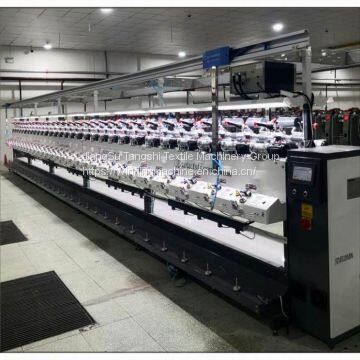

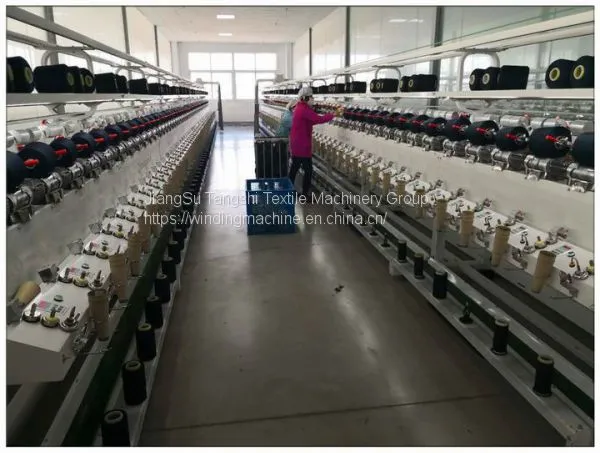

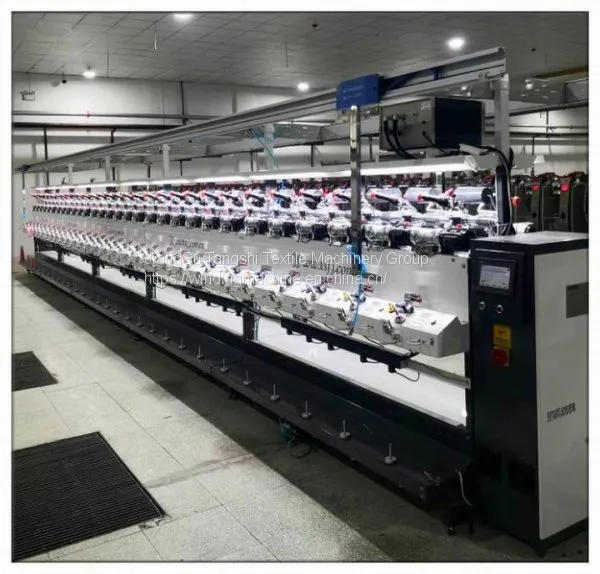

TS008M High Speed Hard Cone Winding Machine, it’s mainly for the yarn rewinding After yarn Dyeing, or Cone to Cone rewinding Directly using before knitting, suit for winding like Cotton yarns, Wool yarns, Acrylic yarns, DTY, Polyester yarns, Spun yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labor for next processing work.
Technical parameters：
Bobbin type: | 6’(170mm) |
Layout: | Double-side, can be 12-96 spindles |
Power Supply | Three phases 380V 50/60HZ |

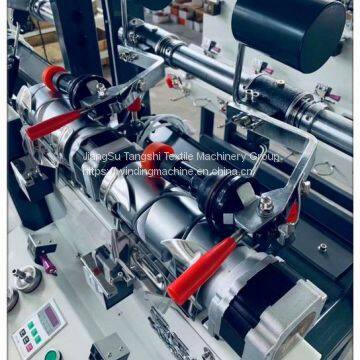

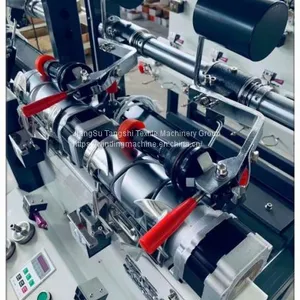

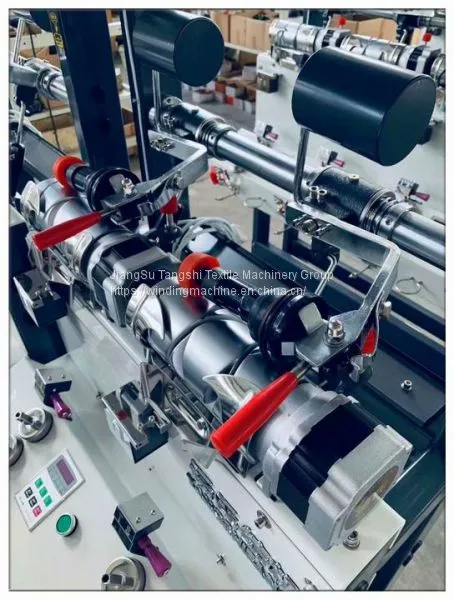

Driving | Every spindle per motor |
Power Consumption | 0.09KW/spindle |
Take-up package | Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
Yarn tension and waxing device | Every spindle has a yarn tension and waxing device |
Auto Stop Device | Each spindle install auto stop device |
Electronic Anti-Stack | Inverter Control |
Cleaner device | Every spindle has a Mechanical Knife yarn cleaner |
Electronic Yarn Cleaner | Optional installed |
Air Splicer | Optional installed |
Blower cleaner | Optional installed |
Lighting System | Optional installed |
Dimensions | L 13700 x W 1050 x H 1650 mm |
