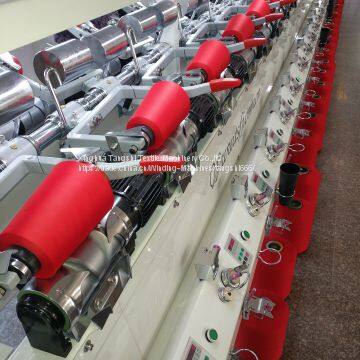

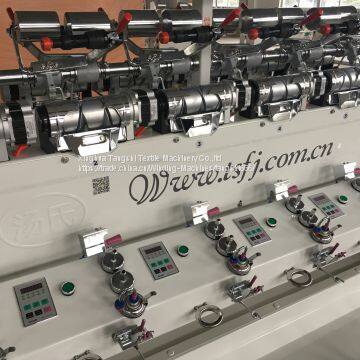

cone to cone winding machine
TS008M High-speed tight(hard) cone winding machine--it’s mainly used to take up cone after dyeing with waxing device or cone to cone directly for the processes of weaving,warp knitting and circular knitting, which is suitable for Fiber , Cotton yarn, Wool yarn,Nylon,FDY, Polyester yarn,etc. It has the feature of high efficiency and well take-up finished shape.
Base Info | Product Name | High-speed hard cone winding Machine/cone to cone winding machine |
Model Number | TS008M | |
Brand | TANGSHI | |
Place of Origin | Jiangsu, China (Mainland) | |
Application | winding yarn cones for the processes of weaving,warping or knitting | |
Yarn | cotton,wool,poy,nylon,etc | |
Automatic Grade | Semi-Auto | |
Production Ability | High Speed | |
Layout | Double Sides | |
Number of spindle | 12、24、36、48、60、72、84、96、108、120 | |
Winding Speed | 300-1000m/min | |
Drive | Individual | |
Take-up Tubes | 0° - 5°57´ | |
Bobbin Type | 6"(170mm) | |
Package Diameter | up to 250mm | |
Specification | Take-up Traverse | 152mm |
Voltage | 380V or 220V | |
Motor | AC or DC motor for choice | |
Motor power | 0.09kW/spindle | |
Weight | 500KG | |
Dimension(L*W*H) | 2250*1150*1600mm(12 spindles) | |
Auto stop device | Each spindle has motion sensor | |
Waxing Device (auto) | Optional | |
Electronic Yarn Clearer | Optional | |
Air Splicer | Optional | |
Blower cleaner | Optional | |
Lighting system | Optional | |
Warranty | 1 year | |
Certification | ISO9001:2008、CE | |
After-sales Service | Engineer available to service machinery overseas |
