25000CMH Fresh Air OEM/ODM Supported Heat Recovery Air Handling Unit

25000CMH Fresh Air OEM/ODM Supported Heat Recovery Air Handling Unit thumbnail-1
25000CMH Fresh Air OEM/ODM Supported Heat Recovery Air Handling Unit thumbnail-2
25000CMH Fresh Air OEM/ODM Supported Heat Recovery Air Handling Unit thumbnail-3
25000CMH Fresh Air OEM/ODM Supported Heat Recovery Air Handling Unit thumbnail-4
25000CMH Fresh Air OEM/ODM Supported Heat Recovery Air Handling Unit thumbnail-5
25000CMH Fresh Air OEM/ODM Supported Heat Recovery Air Handling Unit photo-1
25000CMH Fresh Air OEM/ODM Supported Heat Recovery Air Handling Unit photo-2
25000CMH Fresh Air OEM/ODM Supported Heat Recovery Air Handling Unit photo-3
25000CMH Fresh Air OEM/ODM Supported Heat Recovery Air Handling Unit photo-4
25000CMH Fresh Air OEM/ODM Supported Heat Recovery Air Handling Unit photo-5
US$ 6000 - 6500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MIA
Place of Origin:
China
Model Number:
MIA-AHE2500N
Contact Supplier Request Quote Chat Now
Suzhou Mia Intelligent Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MIA
Place of Origin China
Model Number MIA-AHE2500N
Certification CE, ROHS
Voltage (V) 380
Power (W) 14.5k
Installation Other, Ceiling Easy Installation
Overview
Quick Details

  • Warranty:

  • More than 5 Years, 10 Years

  • After-sale Service:

  • Online Technical Support

  • Project Solution Capability:

  • Graphic Design, 3D model design

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • MIA

  • Model Number:

  • MIA-AHE2500N

  • Air Flow:

  • 25000m3/h

  • Voltage:

  • 380V

  • Power:

  • 14.5KW

  • Heat recovery Rate:

  • 86%-90%

  • Size:

  • 2050*2585*2100mm

  • Tuyere Diameter:

  • 650*650mm

  • Weight:

  • 450kg

  • Pressure:

  • 450Pa

  • Certificate:

  • ISO9001, ISO14001, CE, SAA
Supply Ability

  • Supply Ability:

  • 8000 Set/Sets per Month

Packaging & Delivery

  • Packaging Details

  • Standard Package

  • Port

  • Shanghai port, Ningbo port, Shenzhen Port

  • Picture Example:

  • package-img



    package-img

  • Lead Time :

  • Quantity(Sets) 1 - 10 >10
    Est. Time(days) 15 To be negotiated
Product Details

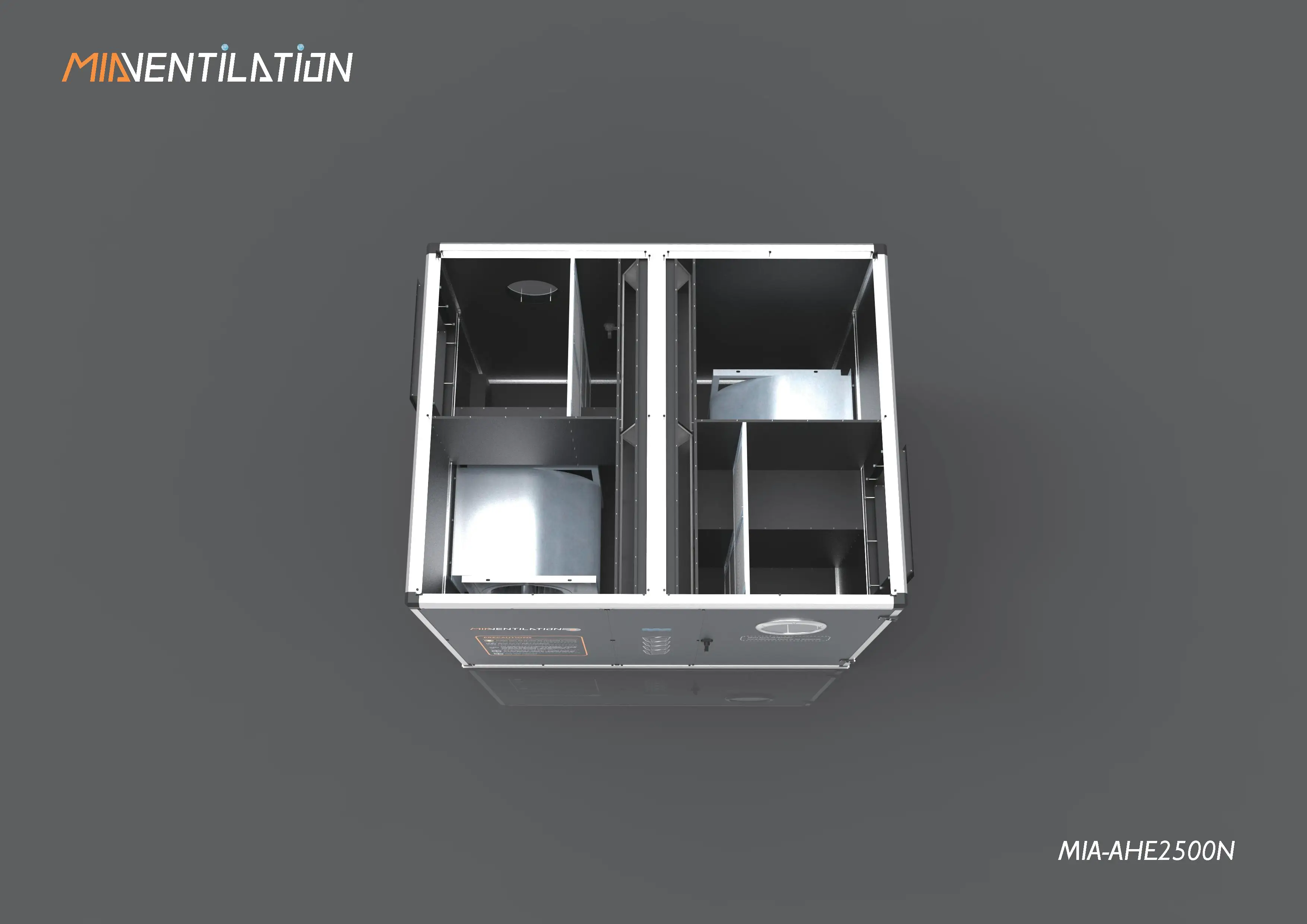

Inside Setting
Energy Recovery Exchanger Core

The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange; with the washable material, also can avoid the problem of bacteria and molds production.

Early Effect + Activated Carbon
The filter with composite fiber, sprayed with activated carbon powder, can ilter dust particle efficiently and the wind resistance is very small. This washable filter can be used repeatedly, greatly reduces the total cost of consumables.
High Efficiency H13 Hepa Filter (Optional)
The filter element that we use is 3M HEPA, meeting the European standard-Hl3, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.
High-voltage Electrostatic Dust Collection (Optional)
With pin type electric discharge way, the high- voltage electrostatic dust can replace the traditional tungsten filament high-voltage electrostatic dust collection. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. lt's washable, also can becleaned with brush, and will not increase the using cost.
Product ranges
Model
Voltage
Power
Volume
Pressure
Efficiency
Noise
MIA-AHE2000N
380V
13KW
20000m3/h
380~580Pa
80%~86%
73dB(A)
MIA-AHE2500N
380V
14.5KW
25000m3/h
380~570Pa
80%~86%
73dB(A)
MIA-AHE3000N
380V
16KW
30000m3/h
390~580Pa
78%~85%
73dB(A)
MIA-AHE3500N
380V
17.8KW
35000m3/h
390~585Pa
78%~84%
75dB(A)
MIA-AHE4000N
380V
21KW
40000m3/h
400~620Pa
79%~86%
75dB(A)
MIA-AHE4500N
380V
23.5KW
45000m3/h
400~620Pa
79%~86%
75dB(A)
MIA-AHE5000N
380V
26KW
50000m3/h
400~620Pa
79%~86%
76dB(A)
Product Packing
Why Choose Us
Certifications


Product Tags: Ventilation , HVAC Systems
