500m3/h Living Room Central Type Fresh Air Handling Unit Heat Recovery Ventilation System

500m3/h Living Room Central Type Fresh Air Handling Unit Heat Recovery Ventilation System thumbnail-1
500m3/h Living Room Central Type Fresh Air Handling Unit Heat Recovery Ventilation System thumbnail-2
500m3/h Living Room Central Type Fresh Air Handling Unit Heat Recovery Ventilation System thumbnail-3
500m3/h Living Room Central Type Fresh Air Handling Unit Heat Recovery Ventilation System thumbnail-4
500m3/h Living Room Central Type Fresh Air Handling Unit Heat Recovery Ventilation System thumbnail-5
500m3/h Living Room Central Type Fresh Air Handling Unit Heat Recovery Ventilation System photo-1
500m3/h Living Room Central Type Fresh Air Handling Unit Heat Recovery Ventilation System photo-2
500m3/h Living Room Central Type Fresh Air Handling Unit Heat Recovery Ventilation System photo-3
500m3/h Living Room Central Type Fresh Air Handling Unit Heat Recovery Ventilation System photo-4
500m3/h Living Room Central Type Fresh Air Handling Unit Heat Recovery Ventilation System photo-5
US$ 300 - 400 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MIA
Place of Origin:
China
Model Number:
MIA-AHE50N
Contact Supplier Request Quote Chat Now
Suzhou Mia Intelligent Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MIA
Place of Origin China
Model Number MIA-AHE50N
Certification CE, ROHS
Voltage (V) 220
Power (W) 120
Installation Other, Ceiling Easy Installation
Overview
Quick Details

  • Warranty:

  • More than 5 Years, 10 Years

  • After-sale Service:

  • Online Technical Support, Onsite Training

  • Project Solution Capability:

  • Graphic Design

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • MIA

  • Model Number:

  • MIA-AHE50N

  • Air Flow:

  • 500m3/h

  • Voltage:

  • 220V

  • Power:

  • 120W

  • Heat recovery Rate:

  • 86%-94%

  • Noise:

  • 30dB(A)

  • Size:

  • 1110*845*260mm

  • Tuyere Diameter:

  • 200mm

  • Weight:

  • 45kg

  • Pressure:

  • 160Pa

  • Application:

  • HOTEL, APARTMENT, OFFICE BUILDING
Supply Ability

  • Supply Ability:

  • 8000 Set/Sets per Month

Packaging & Delivery

  • Packaging Details

  • Carton + Wooden box

  • Port

  • Shanghai port, Ningbo port, Shenzhen Port

  • Picture Example:

  • package-img



    package-img

  • Lead Time :

  • Quantity(Sets) 1 - 10 >10
    Est. Time(days) 10 To be negotiated
Product Details
Inside Setting
Energy Recovery Exchanger Core

The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange; with the washable material, also can avoid the problem of bacteria and molds production.

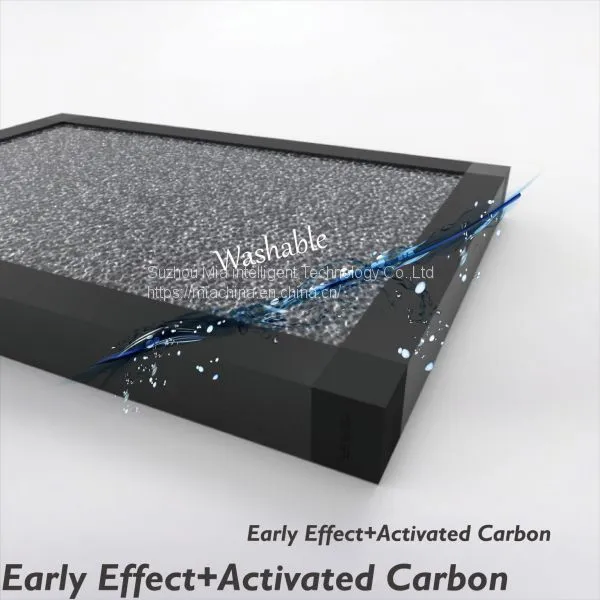

Early Effect + Activated Carbon
The filter with composite fiber,sprayed with activated carbon powder, can ilter dust particle efficiently and the wind resistance is very small.

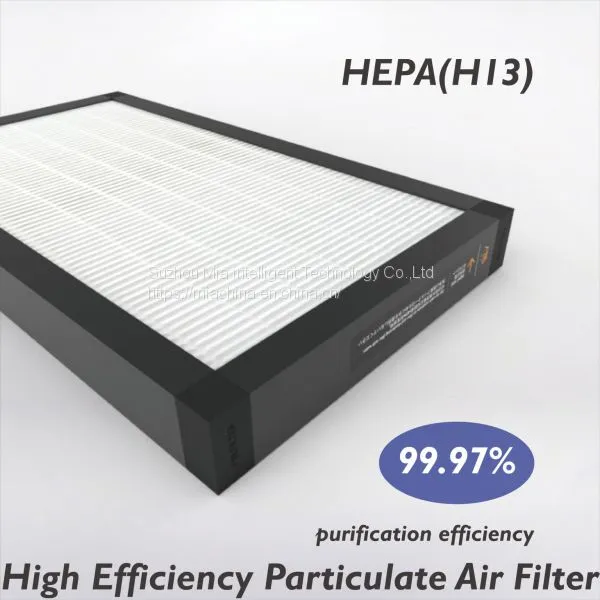

High Efficiency H13 Hepa Filter (Optional)
The filter element that we use is 3M HEPA, meeting the European standard-Hl3, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.
High-voltage Electrostatic Dust Collection (Optional)
The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. lt's washable, also can becleaned with brush, and will not increase the using cost.

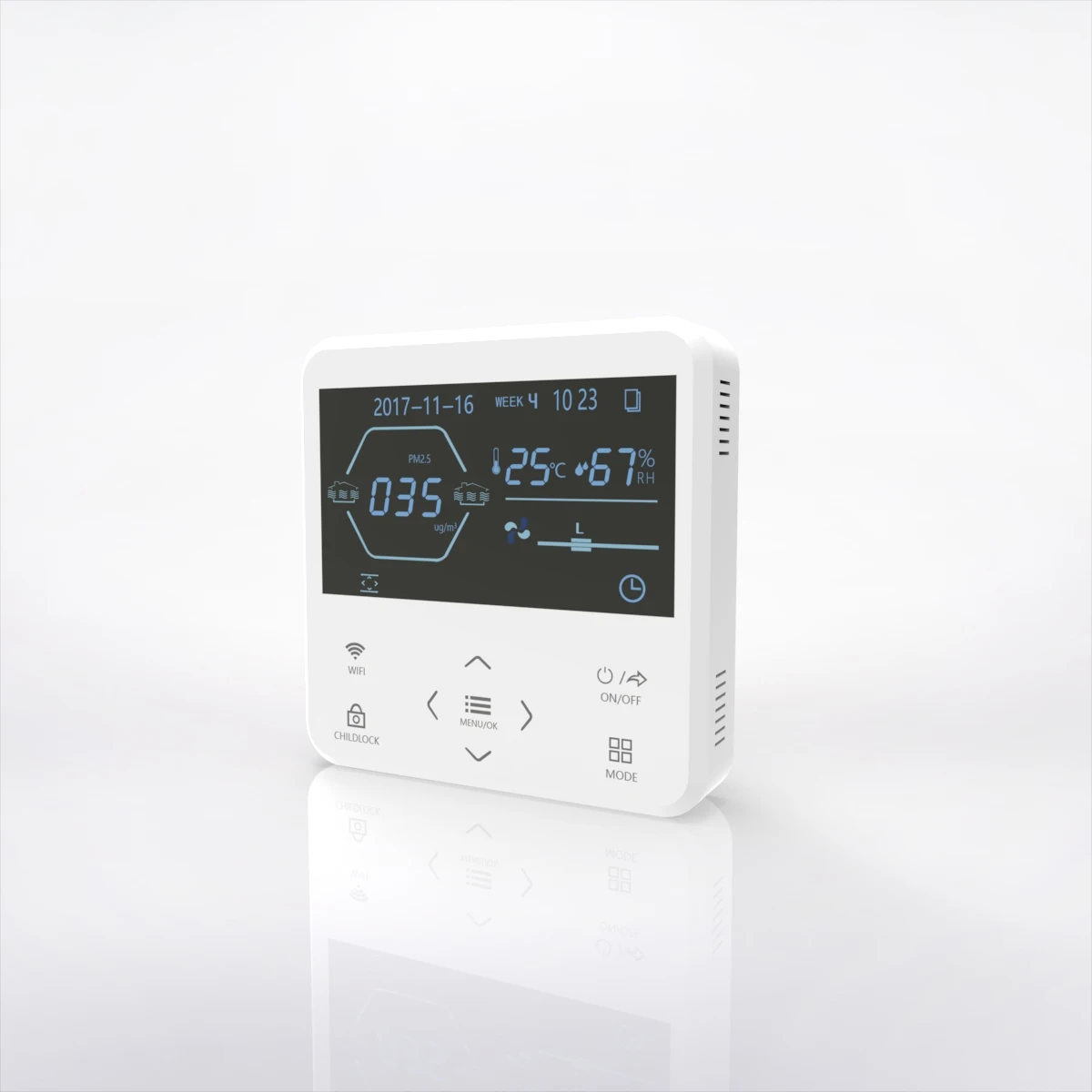

MIA-CAPP/AC
Three Speed Control +temperature display +time setting +PM2.5 display +CO2 display +APP & Wifi control

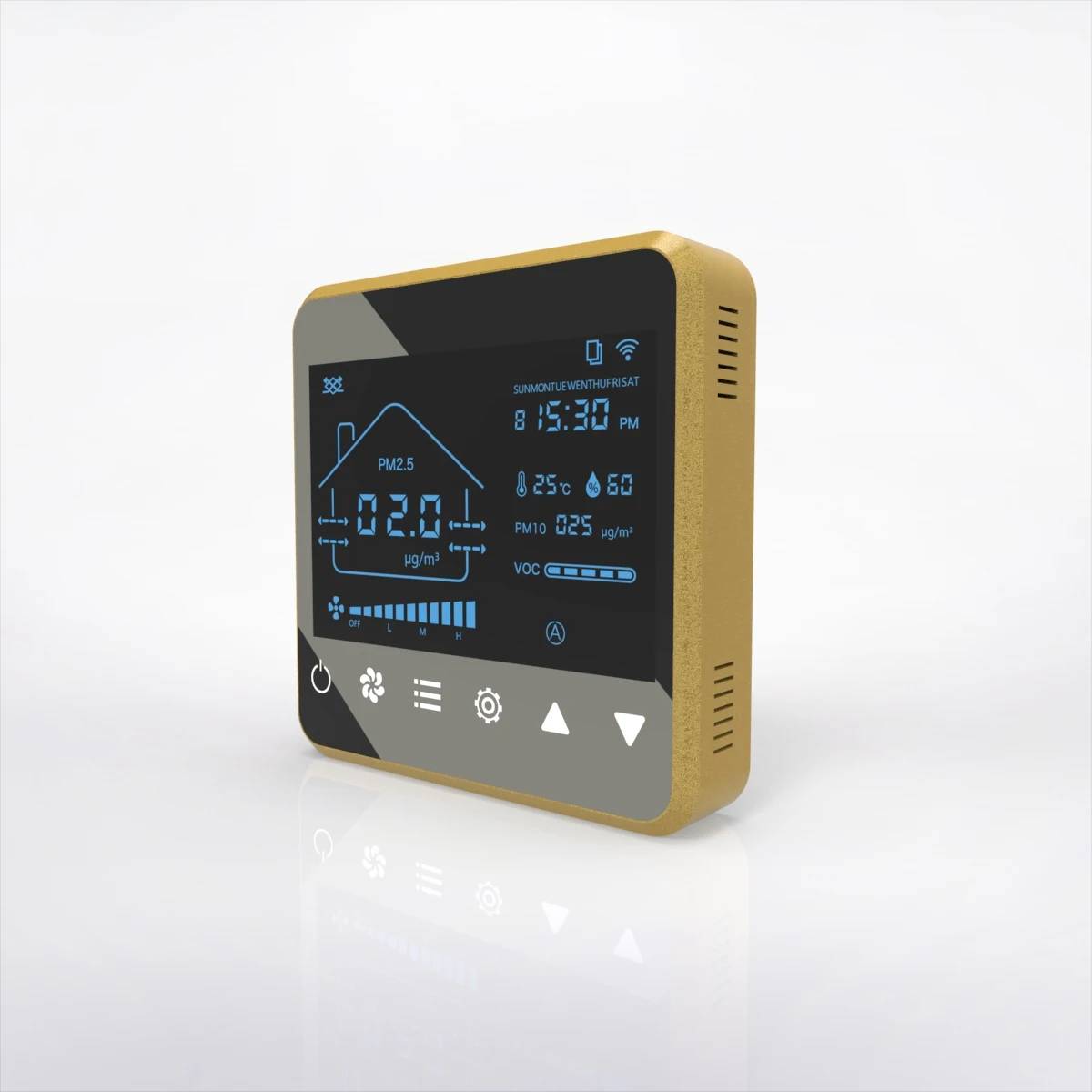

MIA-6G
Three Speed Control +temperature and humidity display
+time setting
+PM2.5 display
+CO2 display
+APP control

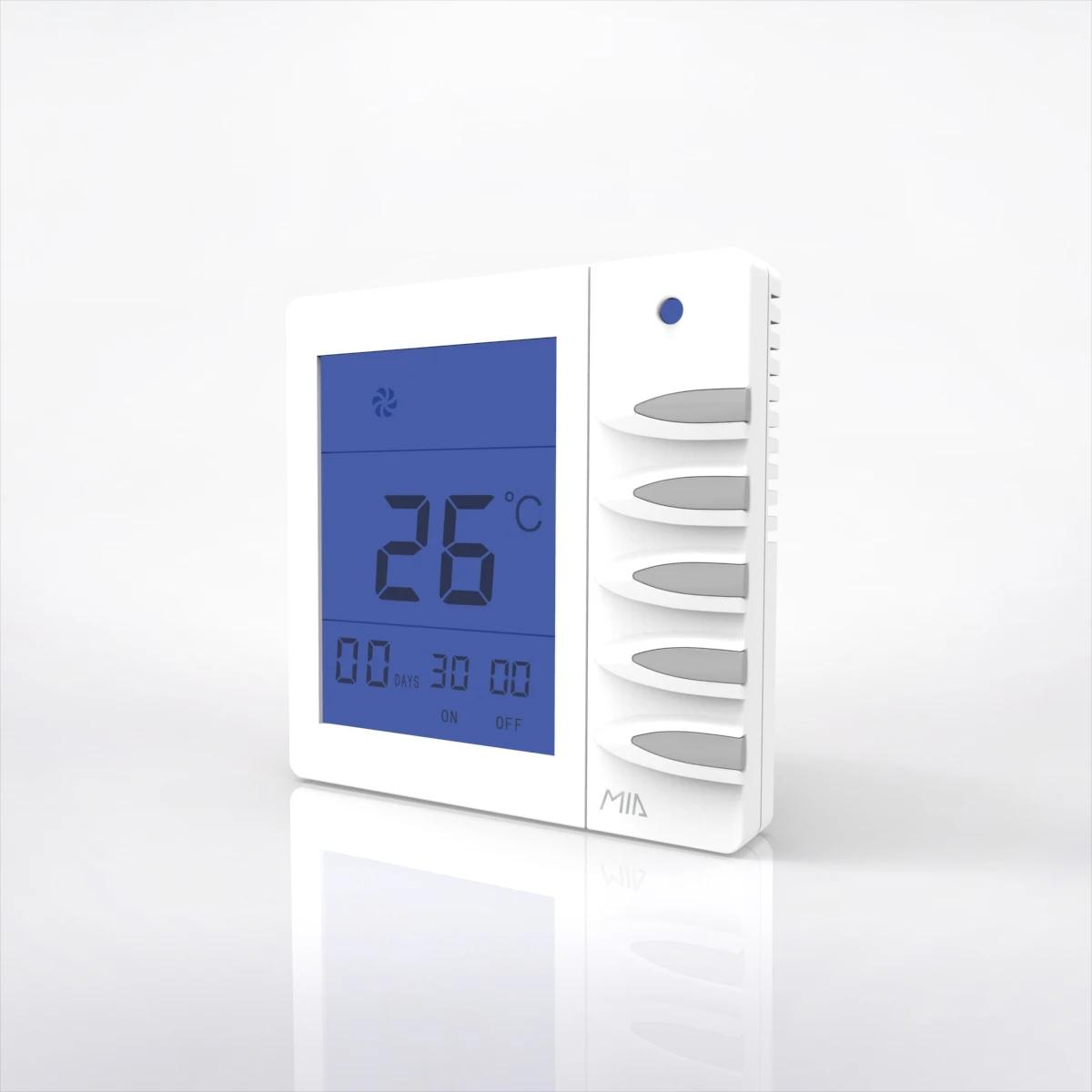

MIA-CA
Three Speed Control +temperature and hum display
+time setting
+PM2.5 display
+APP control
Product ranges
Model
Voltage
Power
Volume
Pressure
Efficiency
Noise
Diameter
Weight
MIA-AHE15N
220V
70W
150m3/h
115Pa
88%~96%
26dB(A)
120mm
19.5kg
MIA-AHE25N
220V
78W
250m3/h
132Pa
87%~95%
28dB(A)
150mm
26.5kg
MIA-AHE35N
220V
88W
350m3/h
140Pa
86%~94%
29dB(A)
150mm
31.5kg
MIA-AHE50N
220V
120W
500m3/h
160Pa
86%~94%
30dB(A)
200mm
45kg
MIA-AHE80N
220V
180W
800m3/h
160Pa
86%~91%
36dB(A)
200mm
52kg
MIA-AHE100N
220V
260W
1000m3/h
170Pa
86%~91%
36dB(A)
200mm
52kg
MIA-AHE150N
220V
285W
1500m3/h
175Pa
85%~88%
44dB(A)
200mm
53.5kg
MIA-AHE200N
220V
330W
2000m3/h
205Pa
85%~90%
48dB(A)
250mm
63kg
Selection Guide
In a room. area: S=65(m3), height: h=3(m), member: = 25 (people). calculated by the fresh air volume everyone needs,[the air volume everyone need: q=30(m3/h)]. so the total fresh air volume QI=n*q= 25*30=750(m3/h). If calculated by the fresh air changes rate, (the fresh air change rate P=4]. so the fresh air Q2=p*s*h=4*65*3= 780(m3/h);      Due to Q2>Ql. so here we take Q2 for the reference;      Combine with the products type, here we suggest MIA-AHE80N Energy Recovery Ventilation.
Select the diferent installation forms of air ventilation according to the characteristic of the bulding structure. Confirm the appropriate air volume according to the house' s use, area and containing people. Select the ventilation' s spedfication and amounts according to the confimed fesh air valume.
