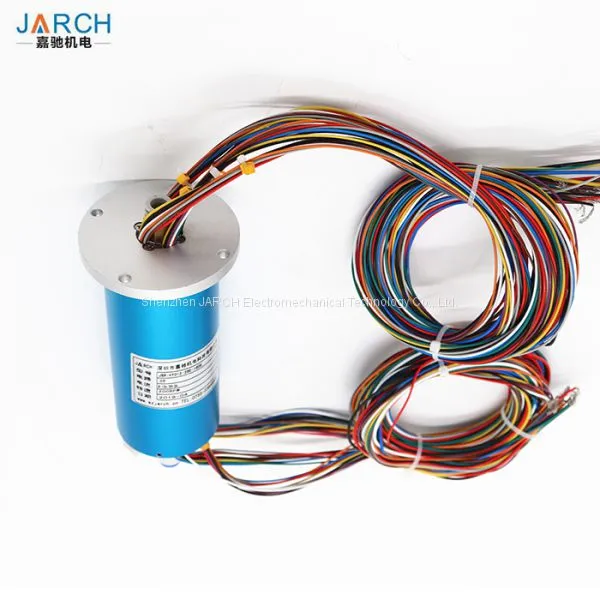

USB2.0 Slip Ring with Hole 12.7mm OD56mm with 2A Signal Transmission Combined with Power/Pneumatic/Hydraulic Sliprings
Ethernet Slip RIng Feature:
1.standard and on stock
2.Color-coded lead wires
3.Very low electric noise
4.Anti-jamming ,very low cost
5.Broadband:ethernet ( 1000 BaseT)
4 circuits 10A USB connector through bore electrical conductive slip ring for high speed signals
Ethernet Slip Ring Description:
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
The HE025 support 4 channel 1000M baseT ethernet slip rings, with through bore size 25.4mm(1.0"), overall diameter 78mm, are standard, off-the-shelf, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
Ethernet Slip Ring Benefits:
Unique signal handling performance with minimal electrical circuit noise
Very low electric noise
Anti-jamming ,very low cost
Very low contact resistance (Less than 1mΩ)
No maintenance and better reliability than traditional sling rings
Suitable for signal and power transfer of rotating devices or instruments
Dimensions:
| Ethernet Spec | |||
| Ethernet | 100M/1000M base T | Connector | RJ45/USB |
| Power/Signal | |||
| Rings | 2~36 | Current | Signal(2A) or 5A,10A, |
| Voltage | mV~200VDC/VAC | Max speed | 500RPM |
| Through bore size | 20.4mm(0.5") | Overall diameter | 78mm(2.2") |
| Housing Material | Aluminium Alloy | Torque | 0.05N.m;+0.03N.m/6rings |
| Working life | 50million | Contact material | Gold-Gold |
| Electrical noise | Contact Resistance | ||
| Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® Awg26,Awg22 |
| Insulation resistance | 500MΩ@600VDC | Lead Lengths | 300mm(12") |
| Operating Temp. | -40°C to 80°C | Protection | IP54 |
| Materials | Lead Free, ROHS | Certified | CE,FCC |
Ethernet Slip Ring Applications:
4 circuits 10A USB connector through bore electrical conductive slip ring for high speed signals
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
Installation Instructions
Flange Mounted:
| Q1: Are you a factory or a trading company? | ||||||||||
| A: We are a professional manufactory with High-level R & D team. | ||||||||||
| Q2: How many types of the slip rings do you have? | ||||||||||
|
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc. | ||||||||||
| Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals. | ||||||||||
| A: Yes, we can supply mixed signals slip rings as your request. | ||||||||||
| Q4: what's the working life of your slip rings. | ||||||||||
|
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones, We also can supply much higher revolutions as your special requirement. | ||||||||||
| Q5: Do you supply OEM and ODM ? | ||||||||||
A: Yes, we supply OEM and ODM. |
JARCH is a professional manufacturer of slip rings and rotary joints,founded in 1998,located in Bao’an,Shenzhen,with more than 80 employees and 1000m2 plant.
We have 8 types of patented products at present and have established extensive and long-term cooperation with many domestic research institutes(Beijing University,SAS,,Beihang University,etc), and own a skilled management team.To creat the brand and do famous brand,we carry out strict performance ISO9001 standard of CQC.
Our slip rings are widely used in civil and military fields ranging from robot,spacecrafts, industrial automation, electric power generation, measurement instruments, medial equipments to building construction. Our main products have fiber optic rotary joint / Electro optical slip ring/ through bore slip ring/ Pneumatic electric rotary union/ Hydraulic rotary union/through bore slip ring/ Pneumatic rotary joint,etc.
Our products are sold to more than thirty provinces in China and exported to more than 38 countries. Our main customers have Huawei,Foxconn,Sany Heavy Industry,BYD,etc.
OEM and ODM are highly welcome!
If you have any questions, please contact us without any hesitation.
|
