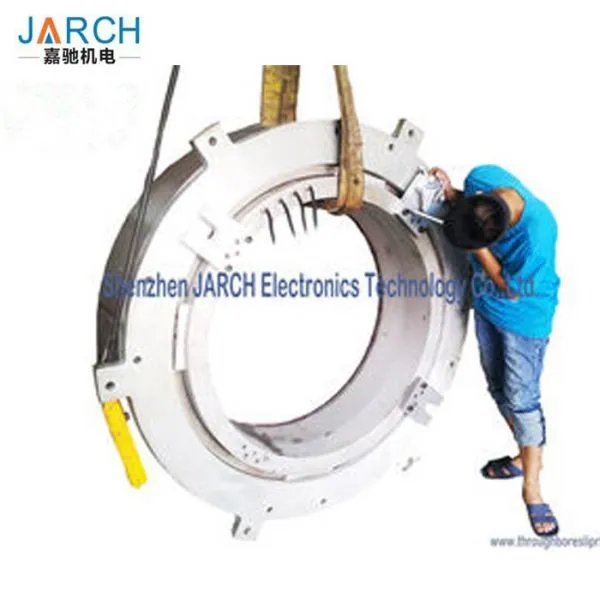

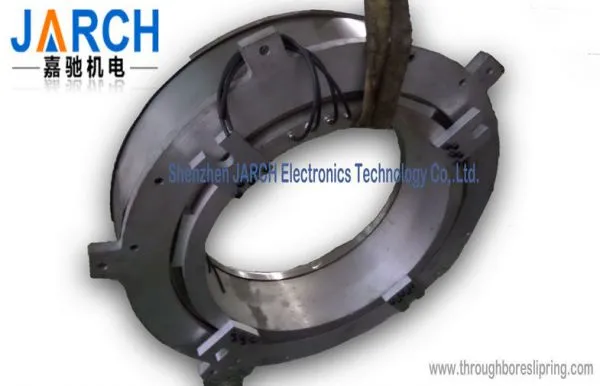

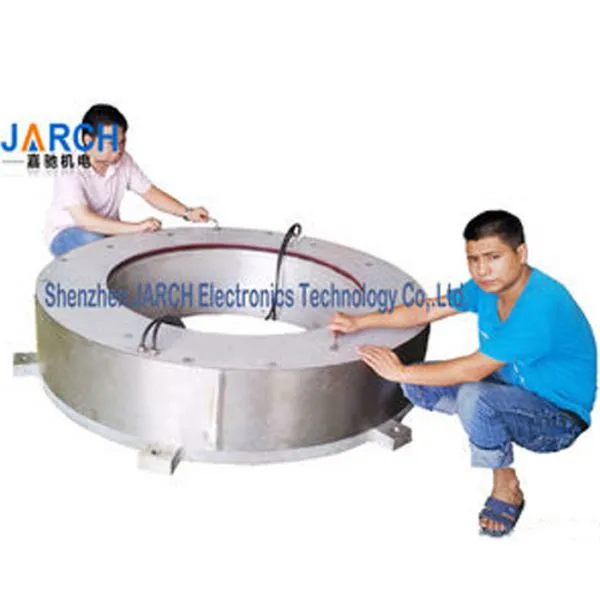

JARCH JARCH Through Hole Slip Ring 1000mm Industrial Slip Rings Large Bore electrical connectors
Large Bore slip rings is electric slip rings with lare bore size, up to 1000mm, Rion Electronic have the strong ability to build all types Large Bore Slip Rings, including bore size 300mm, 400mm, 500mm and so on.If you have any interest, pls request the solutions online or by Email as below:Contact us
| Slip Rings Specifications | |||
| Housing Material | Aluminium Alloy/Stainless steal | Torque | 0.05N.m;+0.03N.m/6rings |
| Working life | >100 million revolutions | Contact material | Precious Metal:Gold-Gold |
| Electrical noise | Contact Resistance | ||
| Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® Awg22,Awg16,CAT6 |
| Insulation resistance | 1000MΩ@600VDC | Lead Lengths | 300mm(12") |
| Operating Temp. | -40°C to 80°C | Storage Temp. | -55°C to 85°C |
| Bearing. | Deep groove ball | Protection | IP54 (IP68 Optional) |
JARCH Through Hole Slip Ring 1000mm Industrial Slip Rings
Feature:
Bore size is up to 1000mm
Speed is only 10RPM
Long-distance transmission
Precision ball bearings for long life
Rugged anodized aluminum construction

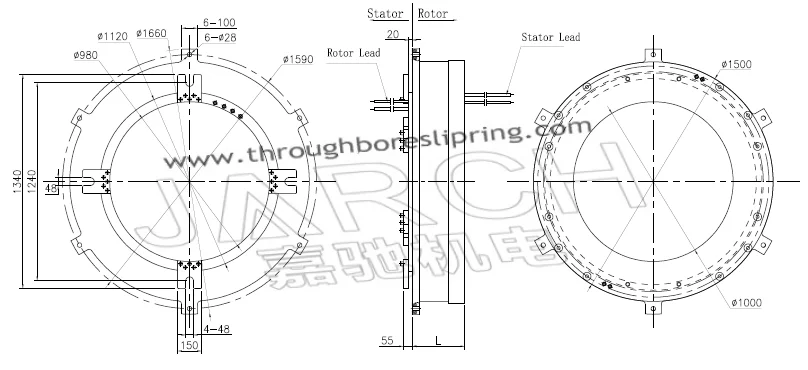

Installation Instructions:Shaft/Flange Mounted
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery
Applications:
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
JARCH Through Hole Slip Ring 1000mm Industrial Slip Rings
Medical Equipment 65mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Pancake Slip Ring
JARCH Company is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
Blue Hybrid Slip Rings 2 ~ 36 Circuits / Sealed Air Rotary Joint With 5A Power
Medical Equipment 65mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Pancake Slip Rin
JARCH Through Hole Slip Ring 1000mm Industrial Slip Rings
For a detailed outline drawing/3D modal files of a specific model number, or to request a quotation, please contact your local sales representative or send an email as below:
