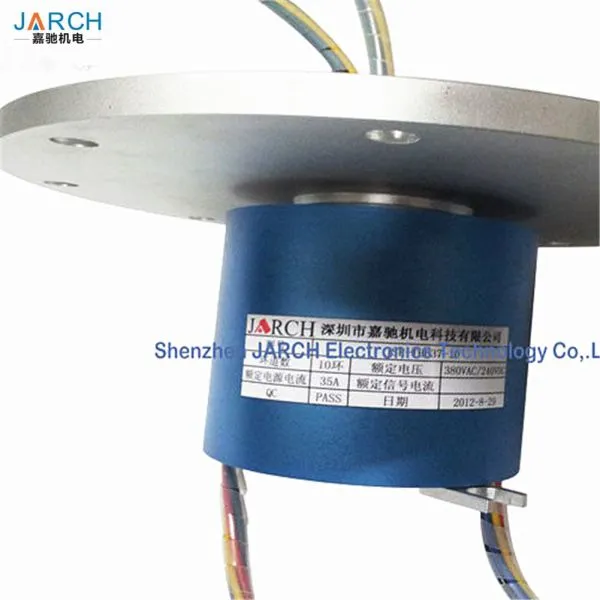

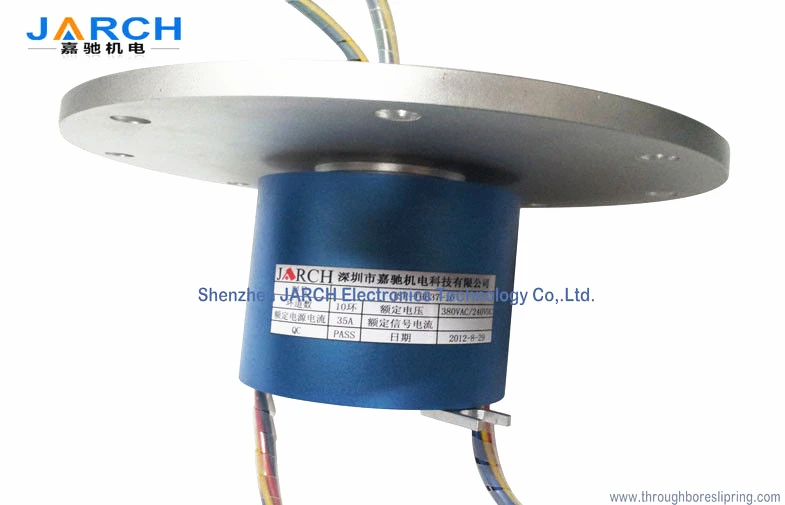

JARCH Flange Mounting Thermocouple Slip Ring Temperature 150℃ For Heating Roller Machinery
JARCH TH Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.
The TH020-FL Thermocouple Slip Ring provide 2 ~ 3 circiuts 15A ~ 30A for heater power, 2 circiuts for thermocouple signal . It uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides a flange mounting model .
Benefits
JARCH Flange Mounting Thermocouple Slip Ring Temperature 150℃ For Heating Roller Machinery
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery
JARCH Flange Mounting Thermocouple Slip Ring Temperature 150℃ For Heating Roller Machinery
Notice
1 Use no more than 60 temperature.
2 The vertical direction when installed, to keep U P upward, preservation needs to keep up also.
3 Not for rotating connector itself or copper terminal welding heat.
4 Dedicated terminals should not be reused many times.
5 Revolver such as vibrations will reduce service life.
6 This connector can in shell or plastic parts into axis, a floating pull in external fixation department, but
never can withstand weight.

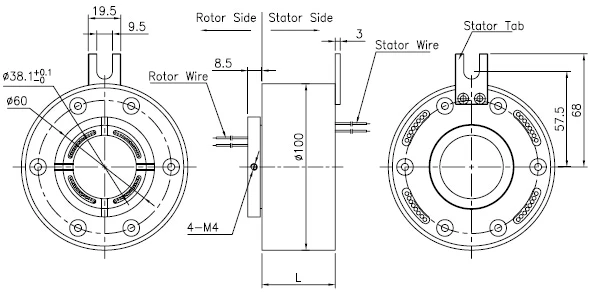

Installation Instructions:Flange Mounted
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery
Applications:
• Electrical heating roller.
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
JARCH Flange Mounting Thermocouple Slip Ring Temperature 150℃ For Heating Roller Machinery
| Q1: Are you a factory or a trading company? | ||||||||||
| A: We are a professional manufactory with High-level R & D team. | ||||||||||
| Q2: How many types of the slip rings do you have? | ||||||||||
|
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc. | ||||||||||
| Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals. | ||||||||||
| A: Yes, we can supply mixed signals slip rings as your request. | ||||||||||
| Q4: what's the working life of your slip rings. | ||||||||||
|
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones, We also can supply much higher revolutions as your special requirement. | ||||||||||
| Q5: Do you supply OEM and ODM ? | ||||||||||
| A: Yes, we supply OEM and ODM. |
If you have any questions, pls contact us without any hesitation.
