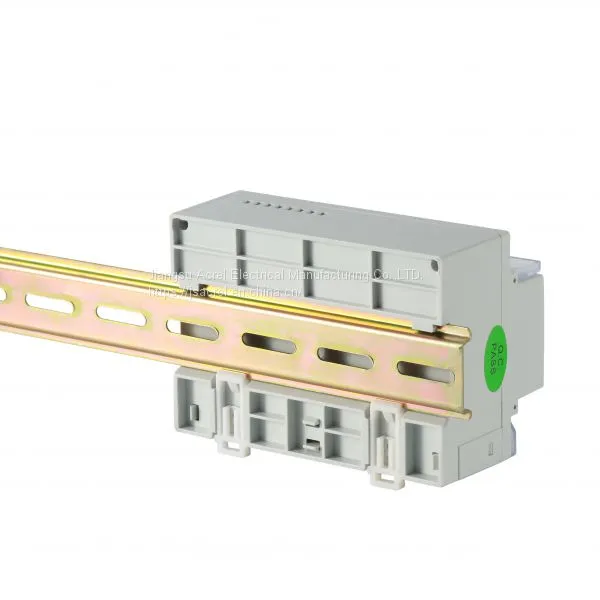

Acrel ADL3000-E Three Phase AC Multifunction Energy Meter

Acrel ADL3000-E Three Phase AC Multifunction Energy Meter thumbnail-1
Acrel ADL3000-E Three Phase AC Multifunction Energy Meter thumbnail-2
Acrel ADL3000-E Three Phase AC Multifunction Energy Meter thumbnail-3
Acrel ADL3000-E Three Phase AC Multifunction Energy Meter thumbnail-4
Acrel ADL3000-E Three Phase AC Multifunction Energy Meter thumbnail-5
Acrel ADL3000-E Three Phase AC Multifunction Energy Meter photo-1
Acrel ADL3000-E Three Phase AC Multifunction Energy Meter photo-2
Acrel ADL3000-E Three Phase AC Multifunction Energy Meter photo-3
Acrel ADL3000-E Three Phase AC Multifunction Energy Meter photo-4
Acrel ADL3000-E Three Phase AC Multifunction Energy Meter photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
Southeast Asia
Contact Supplier Request Quote Chat Now
Jiangsu Acrel Electrical Manufacturing Co.,LTD.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Technical Parameters
Voltage
Reference voltage
3*57.7/100V, 3*220/380V, 3*100V, 3*380V
Reference frequency
45-65 Hz
Consumption
Current
Maximum
6A,80A
Starting current
Direct connect:0.004 Ib
Connect via:0.001 In
Consumption
Measurement performance
Accuracy of active kWH
Class 0.5S
Standards complicant
IEC 62053-21:2003
Pulse
Pulse width
80+20 ms
Pulse constant
400 imp/kWH
6400 imp/kWH
Communication
Interface
RS485
Protocol
Modbus-RTU
Outling
L*W*H(mm)
127*88*70
Environment
Temperature
Operating:-25℃~55℃；Storage:-40℃~70℃
Humidity
≦95% (No condensation)
Altitude
