LX-6EL Design Output Rate: 7200/bph(1500ml)

LX-6EL Design Output Rate: 7200/bph(1500ml) thumbnail-1
LX-6EL Design Output Rate: 7200/bph(1500ml) thumbnail-2
LX-6EL Design Output Rate: 7200/bph(1500ml) thumbnail-3
LX-6EL Design Output Rate: 7200/bph(1500ml) thumbnail-4
LX-6EL Design Output Rate: 7200/bph(1500ml) photo-1
LX-6EL Design Output Rate: 7200/bph(1500ml) photo-2
LX-6EL Design Output Rate: 7200/bph(1500ml) photo-3
LX-6EL Design Output Rate: 7200/bph(1500ml) photo-4
US$ 130000 - 150000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Longsun
Place of Origin:
China
Model Number:
LX-6EL
Contact Supplier Request Quote Chat Now
Dongguan Longsun Machinery Co.,LTD.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Longsun
Place of Origin China
Model Number LX-6EL
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 11000KG
Dimension(L*W*H) 5800×2600×2600mm
Application Bottle
Condition New
Automatic Yes
Blow Moulding Type Stretch Blow Moulding
Plastic Processed PET

Accurate preform-divided

l Servo driven equidistance preform-divided, safe, fast and precise

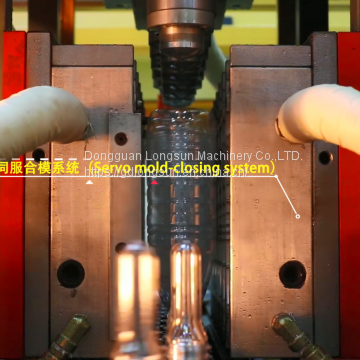

Servo mold-Clamping

l Servo driven mold clamp, bottom mold and mold clamping linkage

l High-pressure mold-locked guarantee the bottle blowing speed and quality



Stable main transmission

l Servo driven stretch rods and main transmission

l Double limits

l Stretch rods can be auto adjusted, flexible and high precise



Safety mold framework structure

l Adopts drawer type structure, mold change and installation are more safe and time-saving with special auxiliary tools

Intelligent operation system

l Human-machine interface control system, high automation, easy operation and safe



Standardized spare parts

l High-quality standardized spare parts guarantee the reliable and stability of the machines

Item

LX－6EL

Main machine

Maximum Bottle capacity

2L

Maximum output rate (bph)

7,200

Maximum bottle diameter

Φ106mm

Neck diameter

Φ18~38mm

Maximum bottle height under neck

330mm

Maximum preform height under neck

55mm

Number of molds

6

Heating part

Number of heating modules

5

Number of heating lamps

10

Number of preform bases

100

Air source

Low pressure

1Mpa

Low pressure air consumption

2m³/min

High pressure

3.5Mpa

High pressure air consumption

8m³/min

Weight

G.W.

Around 10,000kg

Dimension

Main machine (L×W×H)

5800×2600×2600mm

Preform unscrambler(L×W×H)

4500×3500×3500mm
