LX-4EL Design Output Rate: 4800/bph(1500ml)

FOB Price

US$ 90000 - 200000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Longsun	Place of Origin	China
Model Number	LX-4EL	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	1 year	Application	Bottle
Condition	New	Automatic	Yes
Blow Moulding Type	Stretch Blow Moulding	Plastic Processed	PET

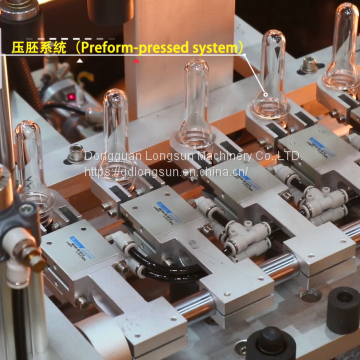

Accurate preform-divided

l Servo driven equidistance preform-divided, safe, fast and precise

Servo mold-Clamping

l Servo driven mold clamp, bottom mold and mold clamping linkage

l High-pressure mold-locked guarantee the bottle blowing speed and quality

Stable main transmission

l Servo driven stretch rods and main transmission

l Double limits

l Stretch rods can be auto adjusted, flexible and high precise

Safety mold framework structure

l Adopts drawer type structure, mold change and installation are more safe and time-saving with special auxiliary tools

Intelligent operation system

l Human-machine interface control system, high automation, easy operation and safe

Standardized spare parts

l High-quality standardized spare parts guarantee the reliable and stability of the machines

	Item	LX－4EL
Main machine	Maximum Bottle capacity	2L
	Maximum output rate (bph)	4,800
	Maximum bottle diameter	Φ106mm
	Neck diameter	Φ18~38mm
	Maximum bottle height under neck	<330mm
	Maximum preform height under neck	<155mm
	Number of molds	4

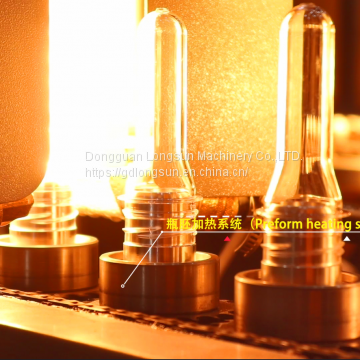

Heating part	Number of heating modules	4
	Number of heating lamps	8
	Number of preform bases	72
Air source	Low pressure	1Mpa
	Low pressure air consumption	2m³/min
	High pressure	3.5Mpa
	High pressure air consumption	6m³/min
Weight	G.W.	Around 7,000kg
Dimension	Main machine (L×W×H)	4500×2300×2600mm
Dimension	Preform unscrambler(L×W×H)	2800×2800×3200mm
