Help CenterRubber Guide Wheel
Related Products
-
Chrome Corundum Grinding WheelNegotiableMOQ: 100 Pieces -
Single Crystal Corundum Wheel-Groove-Double End FaceNegotiableMOQ: 5 Pieces
-
White Corundum Bowl Grinding WheelNegotiableMOQ: 5 Pieces
-
Resin Green Carbon PVA Double Concave Polishing WheelNegotiableMOQ: 5 Pieces
-
Brown Fused Alumina Parallel Grinding WheelNegotiableMOQ: 5 Pieces

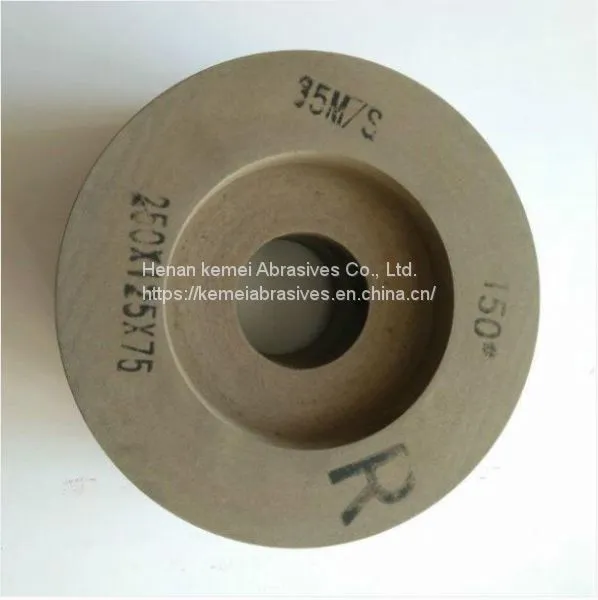

The rubber guide wheel series is a kind of special grinding tool made of brown corundum and white corundum natural rubber bond, which is pressed by plastic mixture lamination and vulcanized with mold. Rubber centerless grinding machine guide wheel is a special product of centerless grinding machine. This guide wheel has the characteristics of uniform structure, compactness, good guiding performance, long service life, certain elasticity and polishing effect, and can perfectly cooperate with the grinding wheel to complete centerless grinding.
Rubber guide wheel is the matching grinding wheel of 1040 centerless grinder.
Model: double concave grinding wheel,
Specification: psa350125127 is rubber,
Material: medium corundum, linear speed 35m / s, widely used in bearing, auto parts and other metal workpiece processing industry, high efficiency, high precision, durable, high finish, not afraid of moisture and other advantages.
Material, hardness and granularity can be customized according to your requirements.
Rubber bonded abrasive tools have high elasticity and plasticity. They are mostly used to make centerless grinding machine guide wheel, bearing fine grinding wheel, soft polishing wheel, cutting wheel, grinding head, etc
Applicable abrasive selection factors:
1、 For materials with high tensile strength, abrasive with high toughness shall be selected.
2、 For materials with low grinding hardness and large ductility, the brittle abrasive shall be selected.
3、 For materials with high hardness, abrasive with higher hardness shall be selected.
4、 Abrasive materials that are not easy to be processed are selected; oxide abrasive materials are easy to react with silicate, carbide abrasive materials are easy to react with iron
