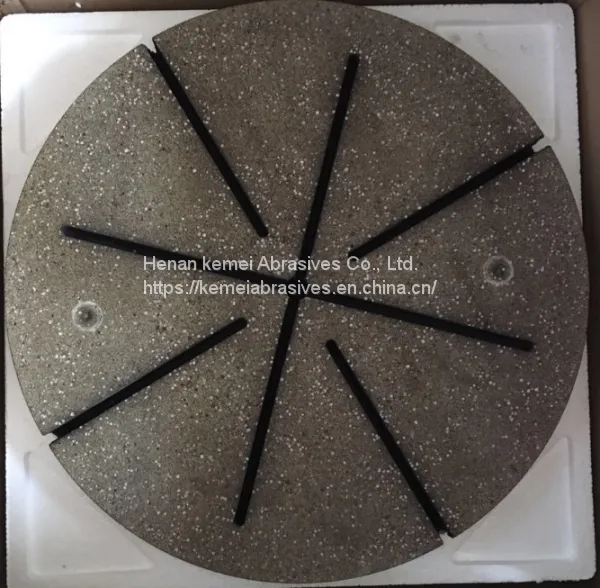

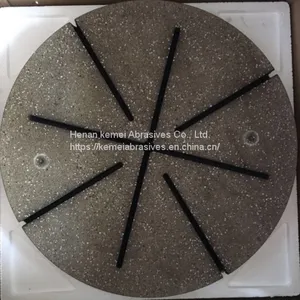

Single Crystal Corundum Wheel-Groove-Double End Face

Color:light yellow or off-white

Applied to:It is used for grinding stainless steel, high vanadium high speed steel and other materials with high toughness and hardness, and easy to deform and burn workpiece.

Features of double end grinding wheel:

1. High grinding efficiency: both end faces of the workpiece are ground at the same time, and the machine is highly automated, so the grinding productivity is more than 50% higher than that of the general end face.

2. High grinding precision: in the double end grinding, the surface is the positioning surface. One - time grinding of two end faces of the workpiece avoids the addition of positioning error and machining error. For medium size workpiece, the parallel difference between two sides can be improved from 6-10U grinding on vertical axis to 4-8U precision.

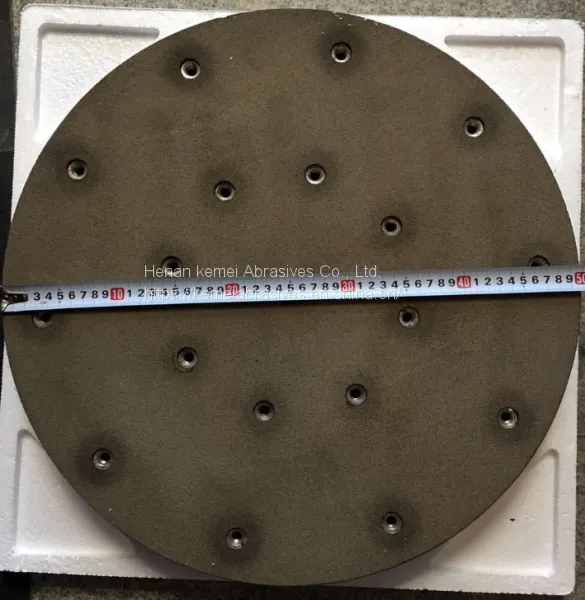

The key to double face grinding is to adjust the machine and select the grinding wheel. Such as grinding crankshaft ring, bearing roller, piston ring and other two ends of grinding. Most grinding wheels are bolted with resin binder. There are many types of bolted grinding wheels.

Product introduction

Double end surface grinding machine is a kind of high-efficiency plane processing machine, grinding out two parallel end surface at the same time in the process of one processing, according to the structure can be divided into horizontal and vertical two, according to the feeding way, can also be divided into through-type, rotary type, reciprocating. Because of high precision and high production efficiency, the products are widely used in automobile, bearing, magnetic material and many other industries. Piston pin, piston ring, valve washer, connecting rod, cross shaft, valve plate, fork, hydraulic pump blade, rotor, stator, compressor slide, bearing inner and outer ring and roller, magnetic ring, magnetic steel sheet, graphite plate and other materials of the industry are suitable for processing.
