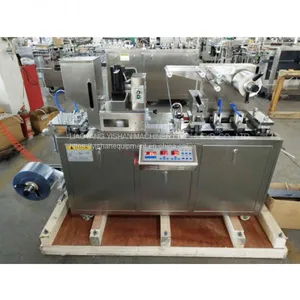

Features
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.
It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
Blister Packing Machine can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
The Packing Machine is suitable for packing in foodstuff, medicine, medical instruments, hardware, electronics industries.
Model |
DPP-80 |
Punch frequency |
10-33times/min |
Production capacity |
2400plates/hour |
Max. Forming area & Depth |
105x70(standard depth ≦15mm), Max. Depth 25mm( As adjusted |
Standard Stroke range |
30-80mm(can be designed as per user’s required) |
Standard plate size |
80x70mm (can be designed as per user’s required) |
Air pressure |
0.4-0.6Mpa |
Compressed air required |
Air compressor≥0.3m3/min |
Total power supply |
380V/220V 50Hz 2.8Kw |
Main motor |
0.75Kw |
PVC hard Film |
0.15-0.5*110 (mm) |
PTP Aluminum film |
0.02-0.035*110 (mm) |
Dialysis Paper |
50-100g*110（mm） |
Mould cooling |
Tap water or Recycling water |
Overall Dimension |
1840x590x1100 (mm)(LxWxH) |
Weight |
Net 450kg Gross weight: 520kg |
Noise index |
More information you can click here
