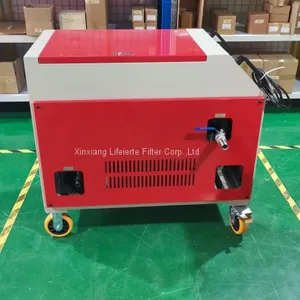

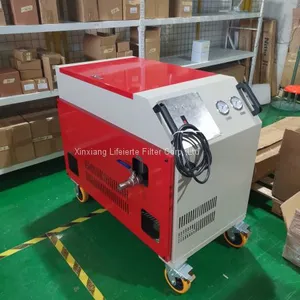

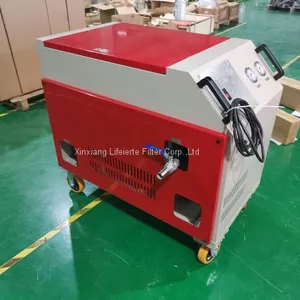

Box-type Mobile Oil Filter Cart,High Efficiency EH Oil Filter Cart
Applications
1.Fuel filtration of when filling to the hydraulic lubrication system
2.Bypass filtration when hydraulic lubrication system at work
3.Loop filtration before the hydraulic lubrication system into operation.
4.Access hydraulic lubrication system, comprehensively improve the cleanliness of the system
Features:
1. Medium: general hydraulic oil, water/glycol, phosphate hydraulic fluid
2. Medium viscosity: ≤160 cSt
3. Flux: 32-100 L/min
4. Pressure: 0.6Mpa
5. Filter accuracy: 3-40um
LYC-C series models:
Model |
LYC-32C-*/** |
LYC-40C-*/** |
LYC-50C-*/** |
LYC-63C-*/** |
LYC-100C-*/** |
Rated flow (L/min) |
32 |
40 |
50 |
63 |
100 |
Temperature (°C) |
5-80 |
||||
Recommended viscosity (CSt) |
10-160 |
||||
Rated pressure (Mpa) |
0.6 |
||||
The original pressure loss (Mpa) |
≤0.01 |
||||
First coarse filtration accuracy (μm) |
100 |
||||
Secondary precision filtration accuracy( μm) |
10、20、40 |
||||
Secondary precision filtration accuracy (μm) |
3、5、10、20 |
||||
Voltage (V) |
Three-phase AC380V Two-phase AC220V |
||||
Motor Power (kw) |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
Weight (kg) |
135 |
145 |
150 |
156 |
182 |
Dimensions (mm) |
950×560×900 |
950×560×900 |
950×560×900 |
950×560×900 |
1100×660×1000 |

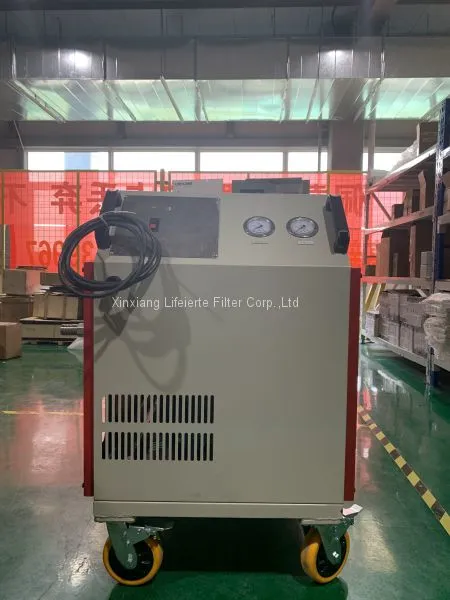

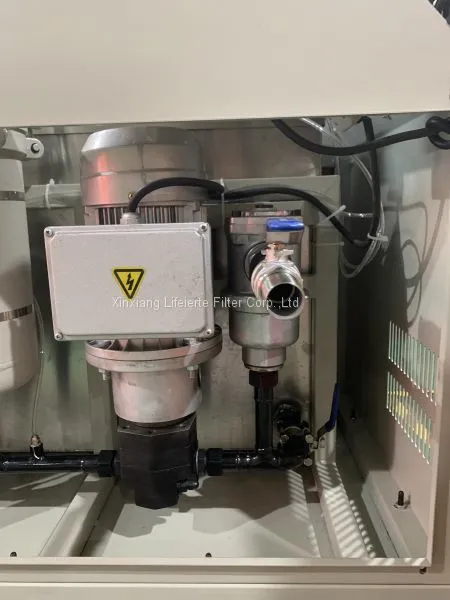

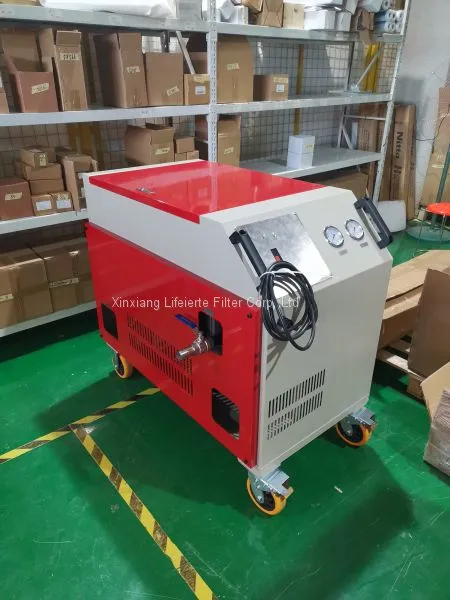

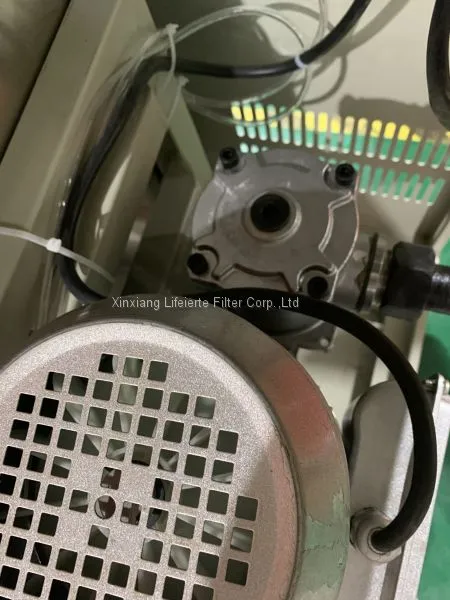

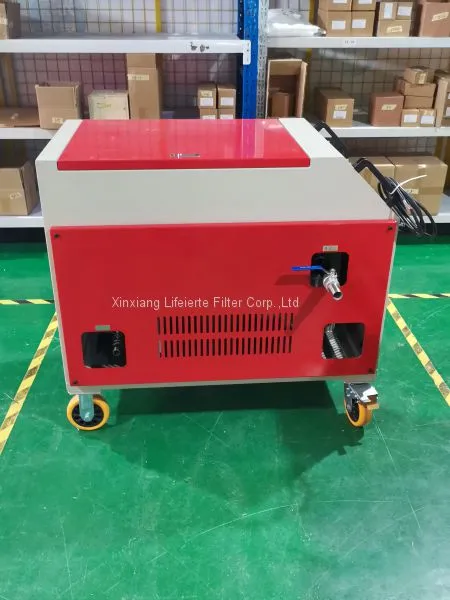

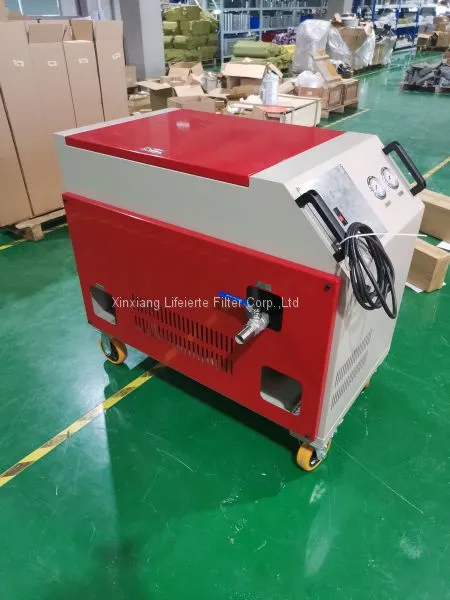

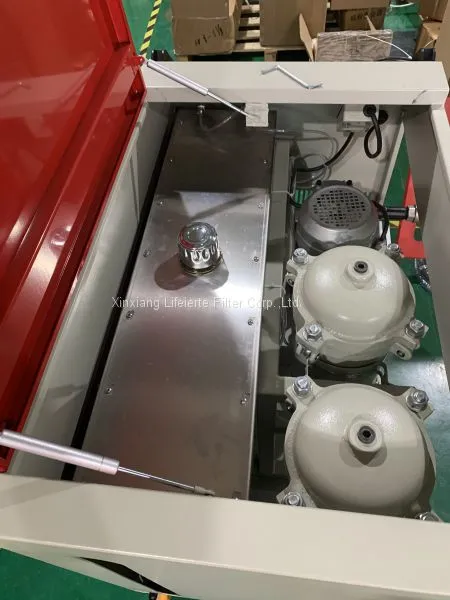

Filter Photo
