100L/min High viscosity oil filter machine 3um oil filter machine for Power plant
Applications
● Filtration of high viscosity oil
● The filling of high viscosity oil
● The bypass filtration when high viscosity oil system at work
Product Description
This machine has five filtration systems, combining precise filtration and dewatering two functions into one efficient. The introduction of the US "coalescing separation" technology for dehydration, which has high efficient dehydration, especially is adapted to the large amount of water separation from oil, dehydration ability is far better than the centrifugal method, you can get rid of all of the oil-water emulsion medium structure ; by filtration, particle filtration system, the cleanliness of the medium can be controlled in a stable state of the system requirements to ensure the cleanliness; the oil does not change the physical and chemical properties, to extend the service life of the oil; energy small, low operating costs; excellent system configuration, continuous strong performance for online operation.
GLYC Technical Data:
Model | GLYC-25B- | GLYC-40B- | GLYC-50B- | GLYC-63B- | GLYC-100B- | GLYC-160B- | ||
Rated flow(L/min) | 25 | 40 | 50 | 63 | 100 | 160 | ||
Temperature( °C) | 5-100 | |||||||
Recommended viscosity(CSt) | 10-760 | |||||||
Rated pressure(MPa) | 1.0 | |||||||
The original pressure loss(MPa) | ≤0.2 | |||||||
First class filtration micron(μm) | 100 | |||||||
Secondary class filtration micron(μm) | 10、20、30 | |||||||
Third class filtration micron(μm) | 3、5、10、20、40 | |||||||
Voltage(V) | Three-phase AC380V Two-phase AC220V | |||||||
Motor Power(kw) | 1.1 | 1.2 | 3.0 | 3.0 | 4.0 | 5.5 | ||
Weight(kg) | 160 | 232 | 240 | 265 | 400 | 540 | ||
Dimensions(mm) | 1080x600x980 | 1200x600x980 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | ||

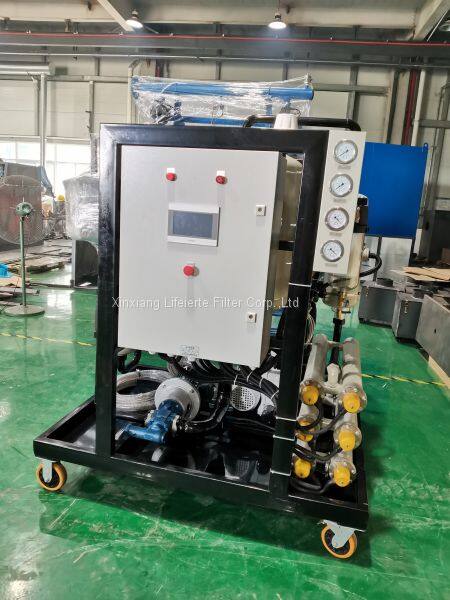

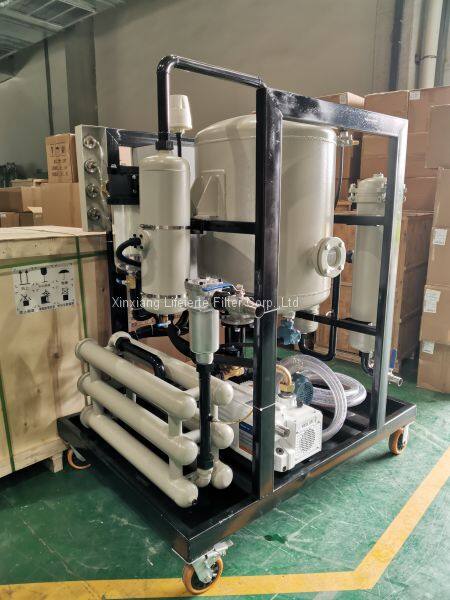

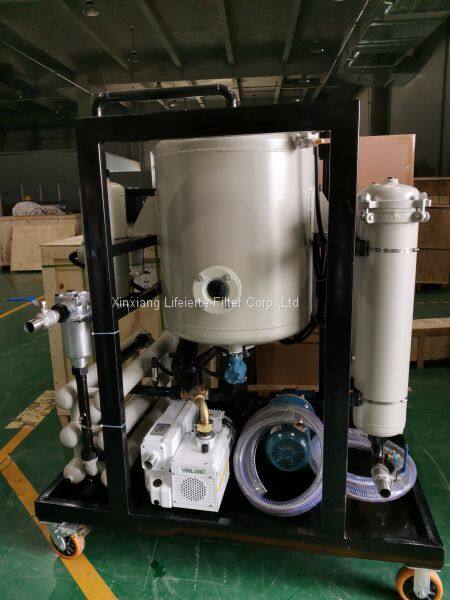

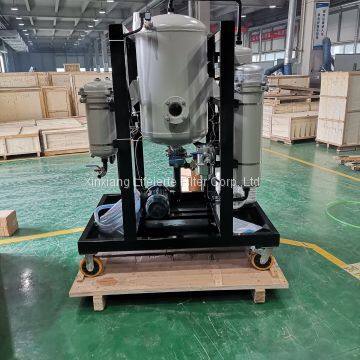

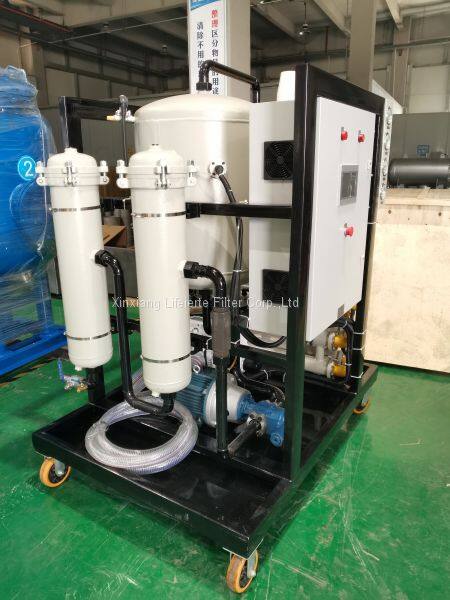

Exactly Pictures:
