ZLYC Transformer Oil Vacuum Purifier,High quality Coalescence Dehydration Oil Filter Cart
Applications
● Oil purifier of turbine oil and transformer
● In addition to water, hydraulic and lubricating oil filter impurities
● Comprehensively improve the cleanliness of hydraulic lubrication system
● Various types of oil regeneration purifier
Product Description
This machine has five filtration systems, combining precise filtration and dewatering two functions into one efficient. The introduction of the US "coalescing separation" technology for dehydration, which has high efficient dehydration, especially is adapted to the large amount of water separation from oil, dehydration ability is far better than the centrifugal method, you can get rid of all of the oil-water emulsion medium structure ; by filtration, particle filtration system, the cleanliness of the medium can be controlled in a stable state of the system requirements to ensure the cleanliness; the oil does not change the physical and chemical properties, to extend the service life of the oil; energy small, low operating costs; excellent system configuration, continuous strong performance for online operation.
ZLYC Technical Data:
Model |
ZLYC-25- */** |
ZLYC-32- */** |
ZLYC-50- */** |
ZLYC-100- */** |
ZLYC-150- */** |
ZLYC-200- */** |
||||
Rated flow |
25L/min |
32L/min |
50L/min |
100L/min |
150L/min |
200L/min |
||||
Pressure |
0.6Mpa |
|||||||||
Rated vacuum |
≤-0.095 |
|||||||||
Water content |
5-30ppm |
|||||||||
Air content |
≤0.2% |
|||||||||
First class micron |
100μm |
|||||||||
Second class micron |
10μm,20μm |
|||||||||
Third class micron |
3μm,5μm |
|||||||||
Voltage |
Three-phase AC380V , 50Hz |
|||||||||
Power |
18kw |
26kw |
36kw |
65kw |
65kw |
135kw |
||||
Weight( kg) |
360 |
470 |
680 |
840 |
960 |
1500 |
||||
Dimensions(cm) |
125x92x160 |
135x98x140 |
150x106x180 |
160x108x210 |
180x120x220 |
200x120x220 |
||||

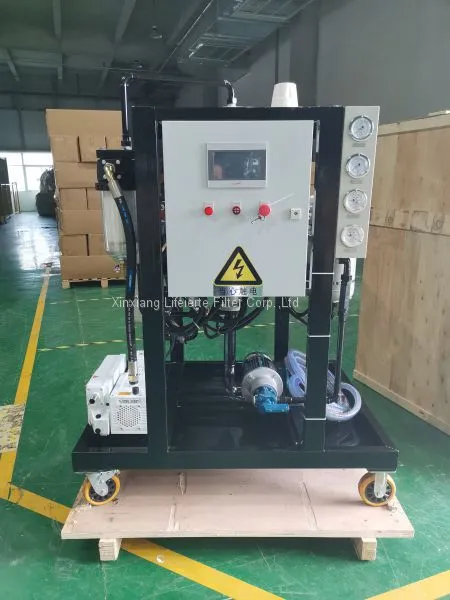

Exactly Pictures:
