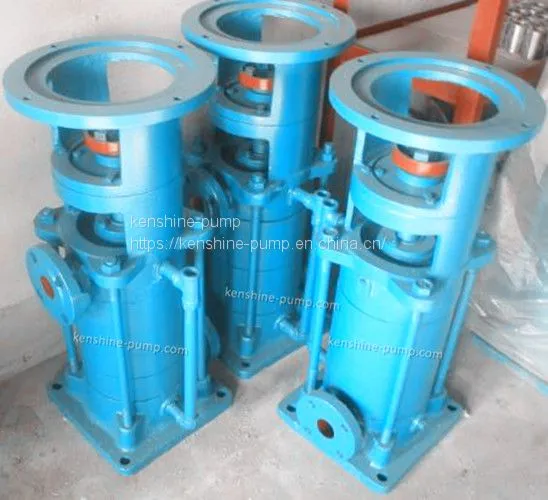

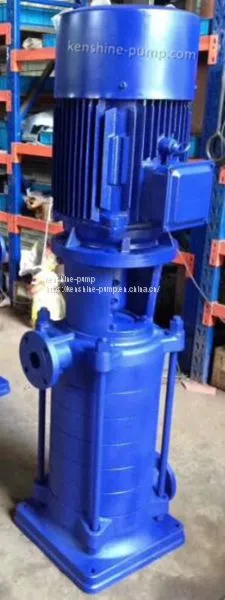

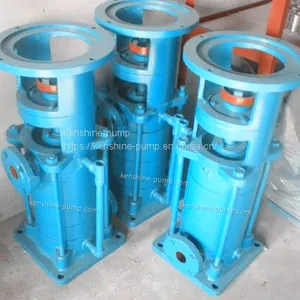

Vertical multistage centrifugal feeding water pump for high-rise building
LG series vertical, single suction, multistage disassembly type centrifugal pump meets the standard JB/T2727-93 of Vertical Multistage single suction Centrifugal pump Type and Basic Parameters. Its suction and discharge outlet are located on the inlet and outlet sections respectively. The rotor parts are composed of shaft, impeller, impeller spacer sleeve, shaft sleeve and other parts. The inlet section, middle section and outlet section are connected with tensioning bolts. Shaft seals can be for soft packed seal or mechanical seal and lubricated and cooled by the pressure water into the balance chamber.
Features
It is easy to install, compact structure, small floor space, high efficiency and energy saving, low noise. The liquid temperature is below 80℃
Application
It is suitable for living water for high-rise buildings, fire water for high-rise buildings, water for factories and mines, enterprises, drainage and circulating water for low-pressure boilers. The temperature of the medium is 0℃~80℃.Pump is used to convey clean water or liquids with physical properties similar to water.
| model | flow | head | speed | power(kw) | efficiency | NPSHr | impeller outer Dia. | |
| (m3/h) | (m) | (r/min) | shaft | motor | (%) | m | (mm) | |
| 25LG3-10×2 | 3 | 20 | 2900 | 0.39 | 0.75 | 42 | 2 | 98 |
| 25LG3-10×3 | 3 | 30 | 2900 | 0.58 | 1.1 | 42 | 2 | 98 |
| 25LG3-10×4 | 3 | 40 | 2900 | 0.78 | 1.5 | 42 | 2 | 98 |
| 25LG3-10×5 | 3 | 50 | 2900 | 0.97 | 1.5 | 42 | 2 | 98 |
| 25LG3-10×6 | 3 | 60 | 2900 | 1.17 | 2.2 | 42 | 2 | 98 |
| 25LG3-10×7 | 3 | 70 | 2900 | 1.36 | 2.2 | 42 | 2 | 98 |
| 25LG3-10×8 | 3 | 80 | 2900 | 1.56 | 2.2 | 42 | 2 | 98 |
| 25LG3-10×9 | 3 | 90 | 2900 | 1.75 | 2.2 | 42 | 2 | 98 |
| 25LG3-10×10 | 3 | 100 | 2900 | 1.95 | 3 | 42 | 2 | 98 |
| 25LG3-10×11 | 3 | 110 | 2900 | 2.14 | 3 | 42 | 2 | 98 |
| 25LG3-10×12 | 3 | 120 | 2900 | 2.33 | 4 | 42 | 2 | 98 |
| 25LG3-10×13 | 3 | 130 | 2900 | 2.53 | 4 | 42 | 2 | 98 |
| 25LG3-10×14 | 3 | 140 | 2900 | 2.72 | 4 | 42 | 2 | 98 |
| 25LG3-10×15 | 3 | 150 | 2900 | 2.92 | 4 | 42 | 2 | 98 |
| 32LG6.5-15×2 | 6.5 | 30 | 2900 | 1 | 1.5 | 53 | 2.4 | 116 |
| 32LG6.5-15×3 | 6.5 | 45 | 2900 | 1.5 | 2.2 | 53 | 2.4 | 116 |
| 32LG6.5-15×4 | 6.5 | 60 | 2900 | 2 | 3 | 53 | 2.4 | 116 |
| 32LG6.5-15×5 | 6.5 | 75 | 2900 | 2.5 | 4 | 53 | 2.4 | 116 |
| 32LG6.5-15×6 | 6.5 | 90 | 2900 | 3 | 4 | 53 | 2.4 | 116 |
| 32LG6.5-15×7 | 6.5 | 105 | 2900 | 3.5 | 5.5 | 53 | 2.4 | 116 |
| 32LG6.5-15×8 | 6.5 | 120 | 2900 | 4 | 5.5 | 53 | 2.4 | 116 |
| 40LG12-15×2 | 12 | 30 | 2900 | 1.63 | 2.2 | 60 | 2.9 | 120 |
| 40LG12-15×3 | 12 | 45 | 2900 | 2.45 | 3 | 60 | 2.9 | 120 |
| 40LG12-15×4 | 12 | 60 | 2900 | 3.27 | 4 | 60 | 2.9 | 120 |
| 40LG12-15×5 | 12 | 75 | 2900 | 4.08 | 5.5 | 60 | 2.9 | 120 |
| 40LG12-15×6 | 12 | 90 | 2900 | 4.9 | 5.5 | 60 | 2.9 | 120 |
| 40LG12-15×7 | 12 | 105 | 2900 | 5.72 | 7.5 | 60 | 2.9 | 120 |
| 40LG12-15×8 | 12 | 120 | 2900 | 6.54 | 7.5 | 60 | 2.9 | 120 |
| 50LG24-20×2 | 24 | 40 | 2950 | 3.79 | 5.5 | 69 | 3.15 | 134 |
| 50LG24-20×3 | 24 | 60 | 2950 | 5.68 | 7.5 | 69 | 3.15 | 134 |
| 50LG24-20×4 | 24 | 80 | 2950 | 7.58 | 11 | 69 | 3.15 | 134 |
| 50LG24-20×5 | 24 | 100 | 2950 | 9.47 | 11 | 69 | 3.15 | 134 |
| 50LG24-20×6 | 24 | 120 | 2950 | 11.37 | 15 | 69 | 3.15 | 134 |
| 65LG36-20×2 | 36 | 40 | 2950 | 5.41 | 7.5 | 72.5 | 3.4 | 136 |
| 65LG36-20×3 | 36 | 60 | 2950 | 8.11 | 11 | 72.5 | 3.4 | 136 |
| 65LG36-20×4 | 36 | 80 | 2950 | 10.82 | 15 | 72.5 | 3.4 | 136 |
| 65LG36-20×5 | 36 | 100 | 2950 | 13.52 | 18.5 | 72.5 | 3.4 | 136 |
| 65LG36-20×6 | 36 | 120 | 2950 | 16.23 | 22 | 72.5 | 3.4 | 136 |
| 80LG50-20×2 | 50 | 40 | 2950 | 7.26 | 11 | 75 | 3.8 | 135 |
| 80LG50-20×3 | 50 | 60 | 2950 | 10.89 | 15 | 75 | 3.8 | 135 |
| 80LG50-20×4 | 50 | 80 | 2950 | 14.52 | 18.5 | 75 | 3.8 | 135 |
| 80LG50-20×5 | 50 | 100 | 2950 | 18.16 | 22 | 75 | 3.8 | 135 |
| 80LG50-20×6 | 50 | 120 | 2950 | 21.78 | 30 | 75 | 3.8 | 135 |
