CHL Horizontal Stainless Steel Booster Centrifugal Pump

Kenshine-pump Business license
CHL Horizontal Stainless Steel Booster Centrifugal Pump thumbnail-1
CHL Horizontal Stainless Steel Booster Centrifugal Pump thumbnail-2
CHL Horizontal Stainless Steel Booster Centrifugal Pump thumbnail-3
CHL Horizontal Stainless Steel Booster Centrifugal Pump thumbnail-4
CHL Horizontal Stainless Steel Booster Centrifugal Pump thumbnail-5
CHL Horizontal Stainless Steel Booster Centrifugal Pump photo-1

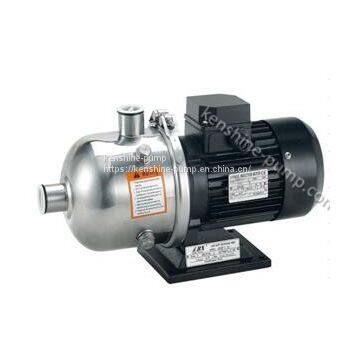

CHL Horizontal Stainless Steel Booster Centrifugal Pump photo-2

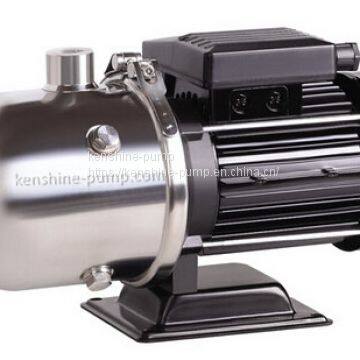

CHL Horizontal Stainless Steel Booster Centrifugal Pump photo-3

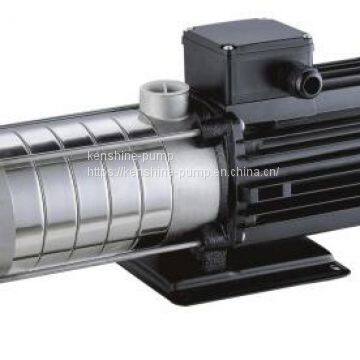

CHL Horizontal Stainless Steel Booster Centrifugal Pump photo-4

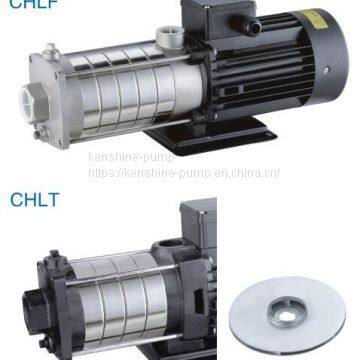

CHL Horizontal Stainless Steel Booster Centrifugal Pump photo-5
US$ 200 - 5000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
CHL2-35
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kenshine-pump
Place of Origin China
Model Number CHL2-35
Application Other, feed water,booster
Fuel Other, electric motor
Power Electric
Usage Water
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Multistage Pump
Pressure High Pressure

CHL horizontal stainless   steel centrifugal pump

CHL Horizontal Stainless steel booster centrifugal Pump adopts   stainless steel AISI304 or 316L, special in high pressure. Impeller, guide   vane and all parts contact with liquid are of stainless steel punched and   welded, so the flow road is very smooth and prevent producing second   pollution. Shaft and sleeve are of hard alloy and adopt wear resistant   mechanical seal, having super service time and no-leakage. Electrical motor   adopt Y2 aluminum motor, importing bearing, insulation grade.

Pumped Medium:

Hot and cold clean, non-flammable and non-explosive liquid without solid grain and fiber. If for explosive liquid should choose explosion-proof motor.

Mineral water, soft water, pure water, edible oil and other light chemical mediums

When the density or viscosity of liquid is larger than that of water, it is necessary to select a driving motor of high-power

CHL Pump Application:

Urban water supply and pressure boosting

Industrial circulating system and processing system

Water supply for boiler, condensing system, high-rise building or fire fighting system.
Water treatment and infiltration system

Cooling water system

Many other domestic and industrial special applications

Motor:

Full-enclosed fan-cooled two-pole standard motor, 50HZ or 60HZ

Phase: Single-phase or three-phase, standard voltage or special voltage is available.

Protection class: IP55, Insulation class: F

Model

Head(m)

Flow rate (m3/h)

Motor power  (KW)

Speed (r/min)

CHL2-20

14

2

0.37

2900

CHL2-30

21

2

0.55

2900

CHL2-40

28

2

0.55

2900

CHL2-50

35

2

0.55

2900

CHL2-60

42

2

0.75

2900

CHL4-20

15

4

0.55

2900

CHL4-30

22

4

0.75

2900

CHL4-40

30

4

0.75

2900

CHL8-10

8.5

8

0.75

2900

CHL8-20

17

8

0.75

2900

CHL8-30

25.5

8

1.1

2900

CHL8-40

34

8

1.5

2900

CHL8-50

42.5

8

2.2

2900

CHL12-10

9.5

12

0.75

2900

CHL12-20

19.5

12

1.2

2900

CHL12-30

29.5

12

1.8

2900

CHL12-40

39.5

12

2.4

2900

CHL12-50

50

12

3

2900

CHL16-10

10

16

1.1

2900

CHL16-20

21

16

2.2

2900

CHL16-30

32

16

3

2900

CHL20-10

9.5

20

1.1

2900

CHL20-20

21

20

2.2

2900

CHL20-30

33

20

4

2900

CHLF(T)2-20

14

2

0.37

2900

CHLF(T)2-30

21

2

0.55

2900

CHLF(T)2-40

28

2

0.55

2900

CHLF(T)2-50

35

2

0.55

2900

CHLF(T)2-60

42

2

0.75

2900

CHLF(T)4-20

15

4

0.55

2900

CHLF(T)4-30

22

4

0.55

2900

CHLF(T)4-40

30

4

0.75

2900

CHLF(T)4-50

38

4

1.1

2900

CHLF(T)4-60

45

4

1.1

2900

CHLF(T)8-10

8.5

8

0.75

2900

CHLF(T)8-20

17

8

0.75

2900

CHLF(T)8-30

25.5

8

1.1

2900

CHLF(T)8-40

34

8

1.5

2900

CHLF(T)8-50

42.5

8

2.2

2900

CHLF(T)12-10

9.5

12

0.75

2900

CHLF(T)12-20

19.5

12

1.2

2900

CHLF(T)12-30

29.5

12

1.8

2900

CHLF(T)12-40

39.5

12

2.4

2900

CHLF(T)12-50

50

12

3

2900

CHLF(T)16-10

10

16

1.1

2900

CHLF(T)16-20

21

16

2.2

2900

CHLF(T)16-30

32

16

3

2900

CHLF(T)16-40

43

16

4

2900

CHLF(T)20-10

9.5

20

1.1

2900

CHLF(T)20-20

21

20

2.2

2900

CHLF(T)20-30

33

20

4

2900

CHLF(T)20-40

44.5

20

4.4

2900


Product Tags: centrifugal pump , booster pump , multistage pump , circulation pump , supply water pump , pressure pump
