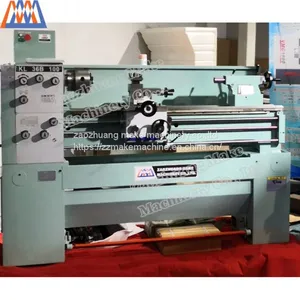

High Precision Horizontal Lathe Model (KL36B-60)

Name: High Precision Horizontal Lathe Model (KL36B-60)
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port qingdao
Payment Terms:T/T L/C

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:

New

Product Description

Model	KL36B-60	KL36B-80	KL36B-100
Center height	180	180	180
Max.center distance	800	1000	1200
Width of bed	220	220	220
Hole diameter of spindle	40	40	40
Spindle head form	A 5	A 5	A 5
Taper of spindle speed	MT5	MT5	MT5
Step of spindle speed	9	9	9
Range of spindle speed	60-2000	60-2000	60-2000
Max.travel of cross slide	235	235	235
Max.travel of compound rese	80	80	80
Leadscrew pitch	4	4	4
Maximum tool section	20*16	20*16	20*16
Range of metric threads	33Nos.4.75-72T.P.I	33Nos.4.75-72T.P.I	33Nos.4.75-72T.P.I
Range of inch threads	20Nos.0.25-9M.P	20Nos.0.25-9M.P	20Nos.0.25-9M.P
Range of metric longitudinal feeds	9Nos.0.0006-0.0925″/rev	9Nos.0.0006-0.0925″/rev	9Nos.0.0006-0.0925″/rev
Range of inch longitudinal feeds	9Nos.0.015-0.2345mm/rev	9Nos.0.015-0.2345mm/rev	9Nos.0.015-0.2345mm/rev
Range of metric cross feeds	9Nos.0.0012-0.185″/rev	9Nos.0.0012-0.185″/rev	9Nos.0.0012-0.185″/rev
Range of inch cross feeds	9Nos.0.03-0.469mm/rev	9Nos.0.03-0.469mm/rev	9Nos.0.03-0.469mm/rev
Travel of tailstock sleeve	115	115	115
Morce taper of tailstock sleeve	MT3#	MT3#	MT3#
Max.drilling dia.
Drilling spindle taper
Main motor power	2.2KW	2.2KW	2.2KW
Packing size	150011401415MM	170011401415MM	190011401415MM
N.W./G.W.	700/780KG	730/800KG	755/825KG

· Dealing directly with the manufacture- no middle man!
· The most competitive pricing in the market.
· High quality control standards, such as ISO, CE
· Guaranteed delivery time.
· Prompt attention to the customer inquiries.
· Diverse services for your needs, including sourcing other machinery, inspection goods for you by our engineers, product process tracking and good.

standard accessories

3-jaw chuck

Tool box
Lathe center
Center sleeve
wrench
Spanner
Hex key
Screwdriver
change gear
Oil brush
Center frame
Knife holder
