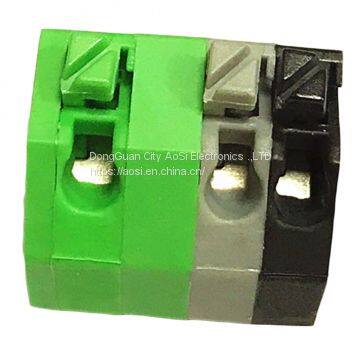

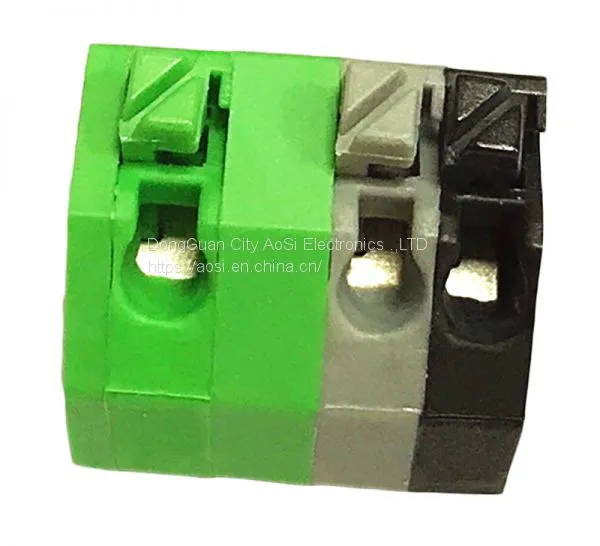

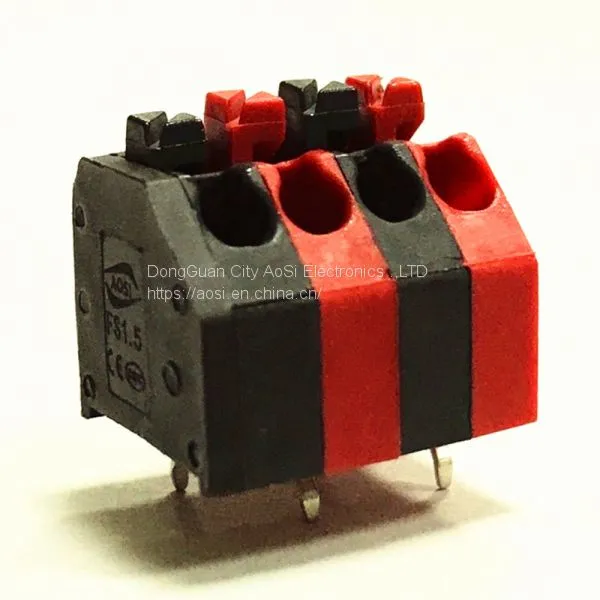

Help CenterReplace DINKLE 0136-20 Push Button Terminal Block 3.5mm Pitch Ballast Terminal Block
Related Products
-
PCB Terminal Block With Pin Header Inside, UL License, RoHS Directive-compliantNegotiableMOQ: 100 Pieces -
Screw 3.81mm 5.0mm 5.08mm Pitch PCB Terminal Block Connector Angle Pin Green Color Pluggable TypeNegotiableMOQ: 100 Pieces
-
PCB Plug in Socket Cable Connector Terminal Block 3.5mm Pitch Female Power Connector With Screw Hole 30A UL EC381VMNegotiableMOQ: 100 Pieces
-
Spring Terminal BlocksNegotiableMOQ: 1
-
JHN5 Spring Terminal BlockUS$ 0.14 - 0.2MOQ: 20000 Pieces

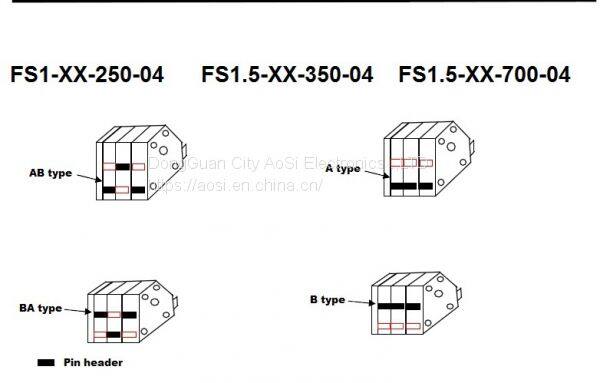

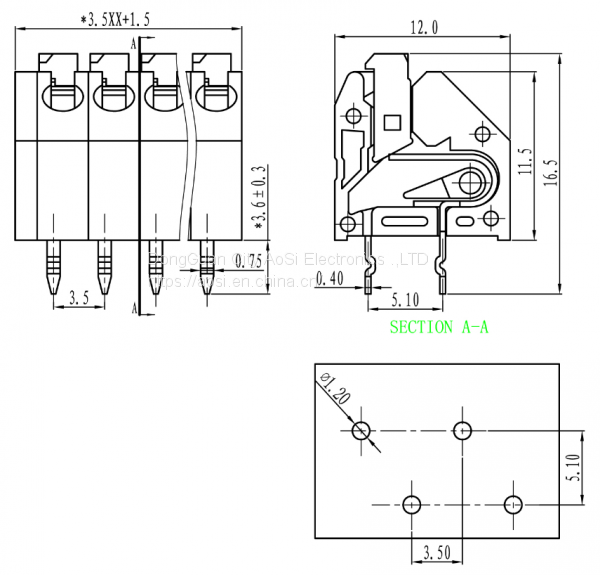

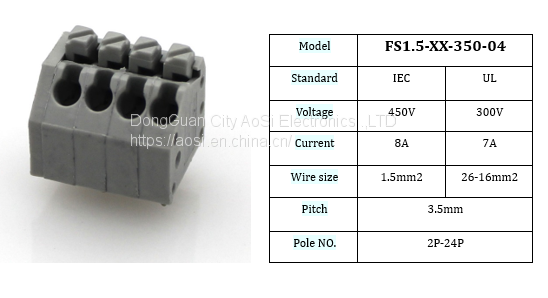

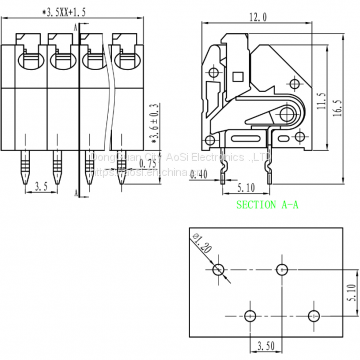

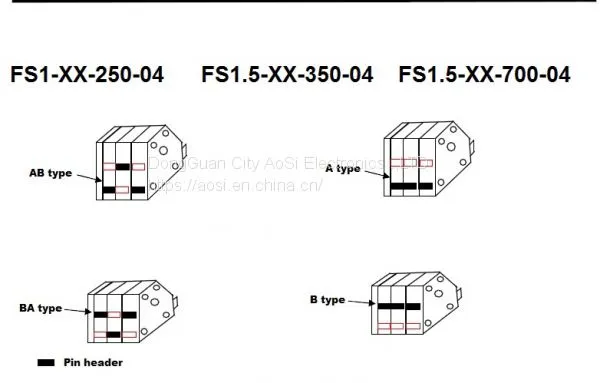

MODEL:FS1.5-XX-350-04
Electrical:
Rated voltage: 300V
Rated current: 6A
Wire range: 22-18AWG(0.2-1.0mm2)
Withstanding voltage: AC2500V/1Min
Ambient temperature: -40°C~+105°C
Strip length: 8.0-9.0mm
Pitch：3.5mm
Poles：1P-36P
Housing：PA66 UL94V-0
Pin header：Cupper alloy
AOSI Electronics company is the collection development,production,sales in one of the specialized terminal block.
AOSI has always strived to provide our customers with high quality products which always meet their needs.
We consider that we are a customer-oriented company and that much of our success is as direct result of this philosophy.
Whether you require a simple modification to an already existing standard product or you want something designed and built especially for you.AOSI is your companion every step of the way.
We strictly implement the ISO9001 quality system through production links，the products are UL,VDE,CQC,CE,ROHS,REACH approved.We constantly improve our innovation ability of the production process,and strive to provide customers with shorter production cycle,more competitive product unit price,but also make you lead the peers get long-term development.
