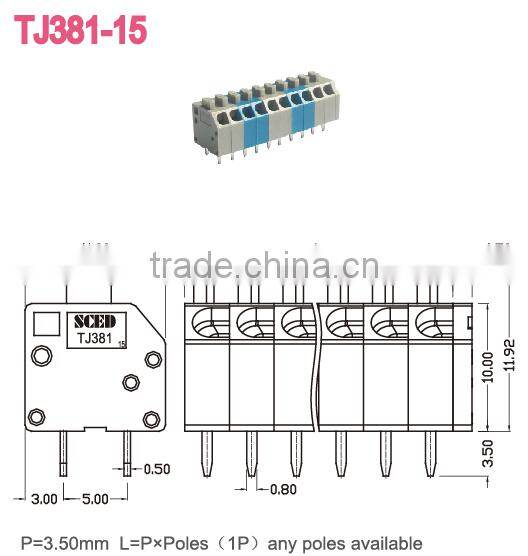

Help CenterPCB Spring Terminal Blocks
Related Products
Parameters:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300/10 |
|
300/10 |
Wire Range AWG |
14-26(sol)/16-26(str) |
|
14-26(sol)/16-26(str) |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
125/10 |
250/10 |
320 /10 |
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
Rated Connecting Capacity mm2 |
1.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Spring / Plating |
Stainless Steel/- |
||
Terminal / Plating |
Brass/Tin plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.2 |
||
Stripping Length mm |
8-9 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
