Home > Products > High flow rate water filter > Pall Hfu640uy020j High Flow Rate Water Filter

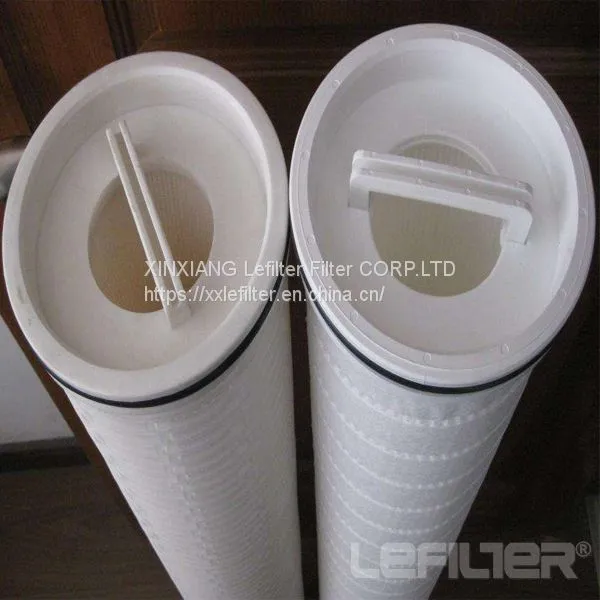

Pall Hfu640uy020j High Flow Rate Water Filter
- 50000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A PayPal Other
- 10 days
Product Details
Brand Name: | PALL | Place of Origin: | China | Model Number: | HFU640UY020J |
Use: | Other, Water treatment | Certification: | CB, CE, CSA, GS, ROHS, UL | Type: | Other, pressure filter |
Product Description
The characteristics of the Pall high-flow foldable filter element:
1. The filter element has a large dirt holding capacity and a long service life.
2. The number of replacements is less, which reduces operating costs.
3. The design of the sealed interface reduces the risk of side flow and improves the filtering effect and efficiency.
4. A wide range of chemistry Applicability can be applied to various fields
Advantages of PALL large flow filter element:
1. Large flow means using a smaller number of filter elements, reducing labor and operating costs;
2. Large flow means using a smaller size filter housing, reducing investment costs and saving floor space;
3. The replacement of the filter element is faster, easier and safer;
4. O-ring ensures the reliability of the filter;
5. The folding surface design makes the pressure drop of the high-flow filter element lower than other filter elements and has a longer service life;
6. Allow high-flow media to pass through the filter material, which has the advantages of high efficiency, low pressure loss and long life;
7. The inside and outside structure of the filter element makes it easy to replace the filter element, while keeping pollutants blocked inside the filter element;
8. The β value of the filter element reaches 3000.
9. Multiple filter elements can be installed in the filter housing, which can use a wide range of flow, whether it is starting or continuous operation;
10. The filter element is durable, and the filter can be configured in the least and economical way.
PALL HFU640UY020J Large Flow Rate Water Filter Parameter:
Filter material | Folded deep polypropylene (PP), or melt blown polypropylene |
Support / diversion layer | polypropylene |
End cover | glass fiber reinforced polypropylene |
O-ring seal material | EPDM, Buna N |
Filter precision | 1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm |
Length | 20inch (508mm) / 40inch (1016mm) / 60inch (1524mm) |
Filter element size | outer diameter: 6 inch (152mm) |
Pall large flow rate water filter applations
1.Water Systems
2.Chemicals
3.Petrochmical
4.Food and Beverage
5.Pre RO
Other High Flow Rate Water Filter models:
HFU620UY020J HFU640UY020J HFU660UY020J
HFU620UY045J HFU640UY045JHFU660UY045J
HFU620UY100J HFU640UY100J HFU660UY100J
HFU620UY200JHFU640UY200J HFU660UY200J
HFU620UY400J HFU640UY400J HFU660UY400J
HFU620UY700J HFU640UY700J HFU660UY700J
HFU620CAS010JUWHFU640CAS010JUW HFU660CAS010JUW
HFU620UY020H13 HFU640UY045H13 HFU660UY400H13
HFU620GF100H13 HFU640GF200H13 HFU660GF050H13
HFU620GF100H13 HFU640GF200H13 HFU660GF100H13
