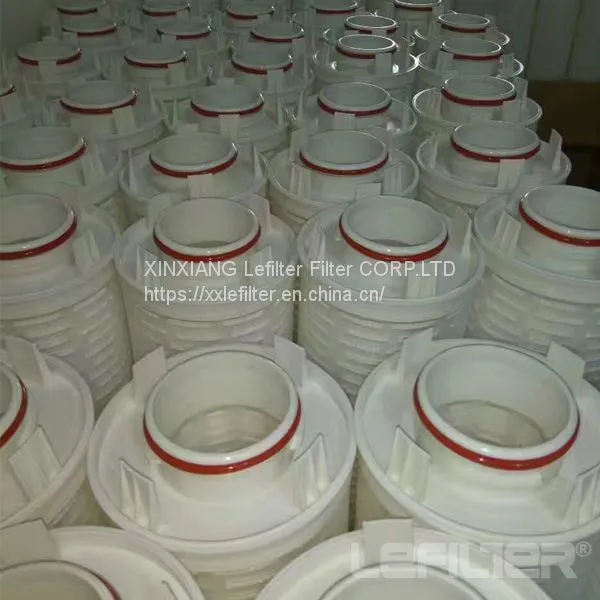

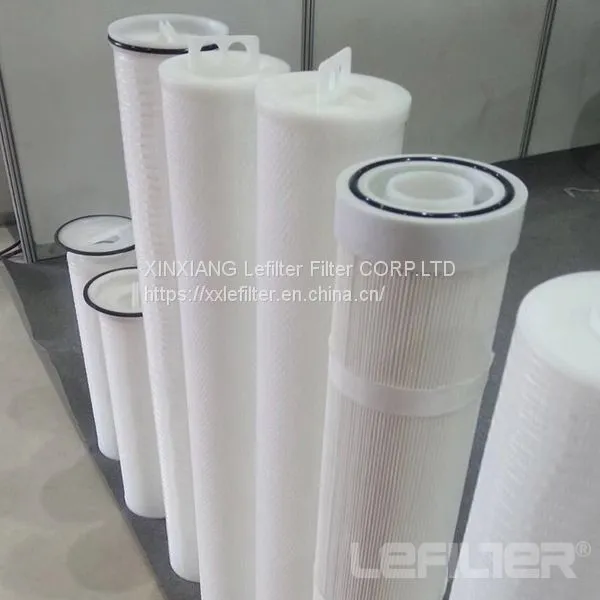

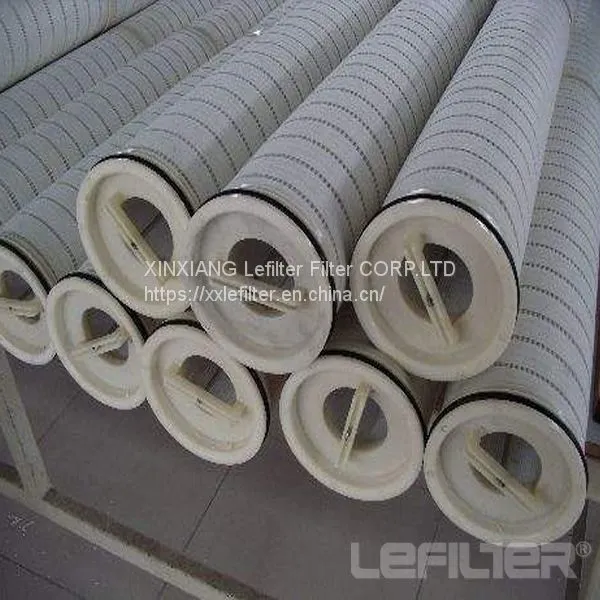

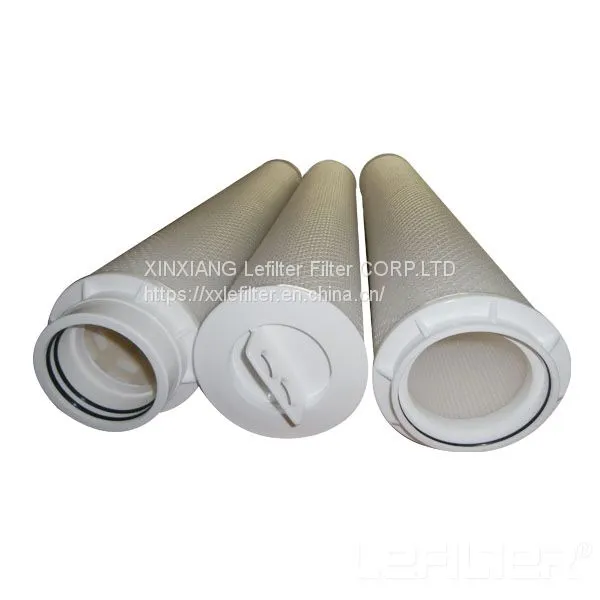

3M HF40PP040C01 High Flow Rate Water Filter profile:
The 3M high-flow filter element is the latest patented product launched by 3M in the United States that integrates advanced technologies such as non-woven technology, micro-replication technology, and patent discounts.
The maximum flow rate of a single filter element can reach 110 tons/hour.
Endow the filter element with the characteristics of high precision, high efficiency, high flow, deep filtration and long service life.
The filter element has an absolute filtration efficiency of 99.9% in the range of 1-70μm.
The filter element adopts an "O" ring seal and a unique design of the draft tube, which is easy to use, can ensure the filtration efficiency and prevent side leakage.
3M HF40PP040C01 High Flow Rate Water Filter feature:
1. High performance filter material
2. Patented horizontal pleating design and technology
3. 20 times more flux than conventional filter elements
4. Absolute filtering accuracy
5. Ultra-long life filter element
6. Humanized design
3M HF40PP040C01 High Flow Rate Water Filter parameter:
Brand |
Lefilter |
Name |
High Flow Rate Filter |
Filter layer material |
Polypropylene |
Frame material |
Polypropylene |
End cover material |
Polypropylene |
Replace the pressure drop |
2.4Bar |
Length dimension |
10 ", 20 ", 30 ", 40 ", 60 " |
Operating temperature
|
80℃ |
|
Sealing material
|
Ethylene propylene rubber, nitrile rubber, fluorine rubber, neoprene
|
Filter element surface form
|
1.Polypropylene outer skeleton 2. Outer winding belt 3. Outer plastic net
|
Filtration accuracy |
1μm, 5μm, 10μm, 20μm, 40μm |
||
Working medium |
Domestic drinking water, biopharmaceutical industry water filtration, industrial water filtration |
||
3M HF40PP040C01 High Flow Rate Water Filter application field:
1.RO security filtration, seawater desalination pretreatment
2. Power plant condensate filtration
3. Filtration of raw materials, solvents and water in the biopharmaceutical industry
4.Bottled water, sugar liquid, edible oil, fruit juice, soft drink, milk filtration
5. Paint, ink, CD, magnetic medium, petrochemical industry, refining
6. Microelectronics, film, fiber, resin
High Flow Rate Water Filte models:
PALL |
HFU620UY200H4、HFU620UY200H4W、HFU620UY400H、HFU620UY400H1、HFU620UY400H4、HFU620UY400H4W、HFU620UY700H1、HFU620UY700H13 HFU640UY200H4、HFU640UY200H4W、HFU640UY200HW、HFU640UY200J、HFU640UY400H、HFU640UY400H1、HFU640UY400H13、HFU640UY400H13W HFU660UY200H4W、HFU660UY200HW、PFTM1-20U-HFH13、PFTM1-40U-HFH13、PFTM1-60U-HFH13 ect |
3M |
HF40PP005、HF40PP010、HF40PP040、HF40PP070、HF40PP100 HF30PP005、HF30PP010、HF30PP030、HF30PP070、HF30PP100 HF20PP005、HF20PP010、HF20PP020、HF20PP070、HF20PP100 ect |
PAKER |
RFP010-40、RFP050-40、RFP100-40、RFP500-40、RFP1000-40、RFP010-30、RFP050-30、RFP100-30、RFP500-30、RFP1000-30、RFP010-20、RFP050-20、RFP100-20、RFP500-20、RFP1000-20 ect |
