Home > Products > self priming pump > JMZ Stainless steel self-priming chemical centrifugal pump

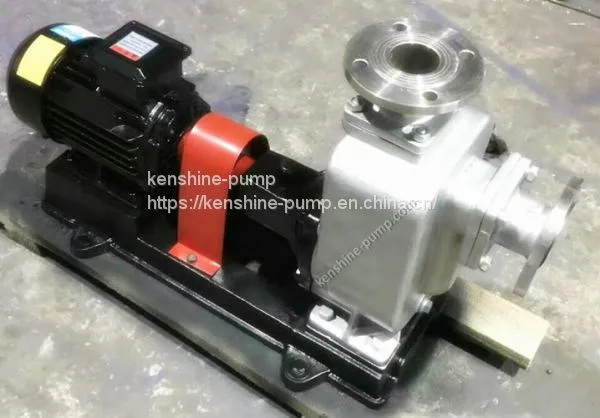

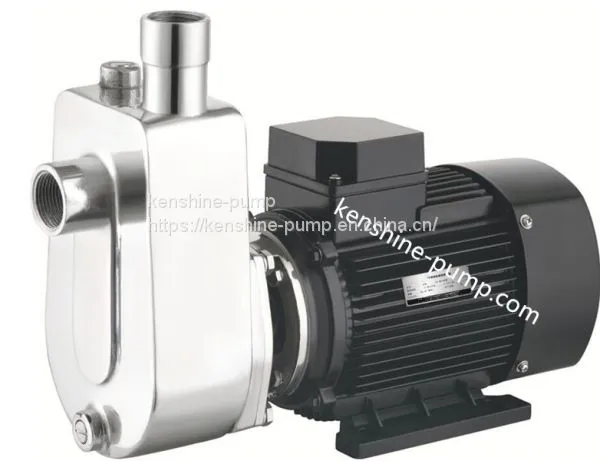

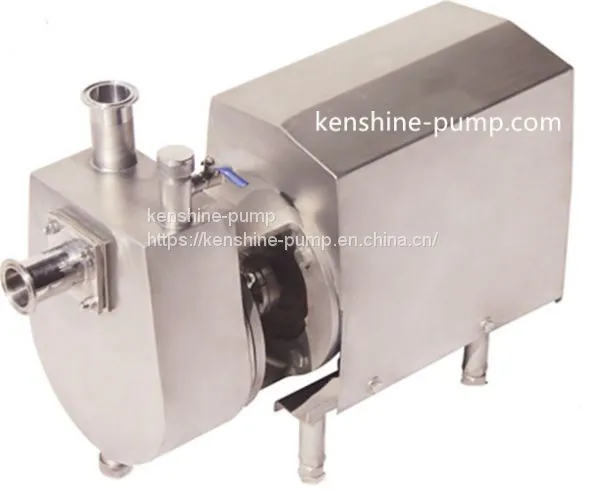

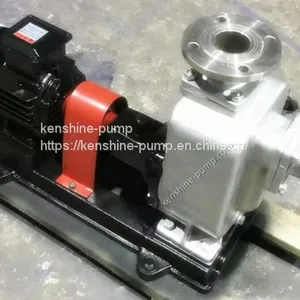

JMZ Stainless steel self-priming chemical centrifugal pump
- 800 Set / Sets per Month
- Shanghai
- T/T
- 10 days
Product Details
Brand Name: | kenshine-pump | Place of Origin: | China | Model Number: | 25JMZ-8 |
Application: | Other, alcohol,syrup,beverage pump | Fuel: | Other, electric motor | Power: | Electric |
Usage: | Other, alcohol,syrup,beverage,dairy,drinks pump | Theory: | Centrifugal Pump | Standard or Nonstandard: | Standard |
Structure: | Single-stage Pump | Pressure: | Low Pressure |
Product Description
JMZ stainless steel self-priming alcohol centrifugal pump
Pumped fluids:
JMZ, FMZ stainless steel self-priming centrifugal chemical pump is in accordance with the new requirements of users. The pump is with new mechanical seal assembly (no leakage) and can be driven by explosion-proof motor.
JMZ self-priming alcohol pump is suitable to convey (-35 ~ +120℃) all kinds of alcohol, beverage, dairy products, pharmaceutical, gasoline, solvent oil, syrup and other industries. FMZ self-priming chemical pump is suitable for conveying (-35 ~ +120℃) concentrated slurry, acid, alkali, salt and other chemical liquids.
Self-priming performance
JMZ, FMZ Stainless steel self-priming chemical pump does not need bottom valve and irrigation liquids and suck the liquids. Suction height is up 5m. The pump has the advantages of compact structure, small volume, good self-priming performance and convenient operation etc.
Structure:
The pump has the main parts of pump body, impeller, mechanical seal, bracket. Rotation direction: anticlockwise from pump inlet. Installation way: fixed installation or movable installation. Pump inlet and outlet: flange or screw type
Performance range:
Flow rate:2-400m3/h
Head: 8-60m
Pump inlet and outlet: 20mm-200mm
Pump material: stainless steel SS304, SS316 etc.
Model | INLET | OUTLET | Q | H | Suction height | speed | MODEL | power |
mm | mm | m3/h | m | m | r/min | (KW) | ||
25JMZ-8 | 25 | 20 | 2.2 | 8 | 3 | 2900 | 25FMZ-8 | 0.75 |
25JMZ-16 | 25 | 25 | 3.6 | 16 | 4 | 2900 | 25FMZ-16 | 1.1 |
25JMZ-22 | 25 | 25 | 3 | 22 | 5 | 2900 | 25FMZ-22 | 1.5 |
25JMZ-26 | 25 | 25 | 4.5 | 26 | 4 | 2900 | 25FMZ-26 | 2.2 |
25JMZ-42 | 25 | 25 | 6 | 42 | 5 | 2900 | 25FMZ-42 | 3 |
40JMZ-16 | 40 | 25 | 7.2 | 16 | 4 | 2900 | 40FMZ-16 | 1.5 |
40JMZ-22 | 40 | 25 | 7.2 | 22 | 4 | 2900 | 40FMZ-22 | 2.2 |
40JMZ-42 | 40 | 25 | 7.2 | 42 | 5 | 2900 | 40FMZ-42 | 3 |
40JMZ-22X | 40 | 40 | 10 | 22 | 4 | 2900 | 40FMZ-22X | 3 |
40JMZ-42X | 40 | 40 | 10 | 42 | 5 | 2900 | 40FMZ-42X | 4 |
50JMZ-22 | 50 | 40 | 12 | 22 | 4 | 2900 | 50FMZ-22 | 3 |
50JMZ-40 | 50 | 40 | 10 | 40 | 5 | 2900 | 50FMZ-40 | 4 |
50JMZ-22X | 50 | 50 | 20 | 22 | 4 | 2900 | 50FMZ-22X | 4 |
50JMZ-40X | 50 | 50 | 20 | 40 | 5 | 2900 | 50FMZ-40X | 5.5 |
65JMZ-22 | 65 | 50 | 28.8 | 22 | 4 | 2900 | 65FMZ-22 | 4 |
65JMZ-38 | 65 | 50 | 28.8 | 38 | 5 | 2900 | 65FMZ-38 | 7.5 |
65JMZ-22X | 65 | 65 | 35 | 22 | 4 | 2900 | 65FMZ-22X | 5.5 |
80JMZ-22 | 80 | 65 | 50 | 22 | 4 | 2900 | 80FMZ-22 | 7.5 |
80JMZ-38 | 80 | 65 | 50 | 38 | 5 | 2900 | 80FMZ-38 | 11 |
80JMZ-65 | 80 | 65 | 50 | 65 | 5 | 2900 | 80FMZ-65 | 18.5 |
100JMZ-24 | 100 | 80 | 100 | 22 | 4 | 2900 | 100FMZ-24 | 11 |
100JMZ-32 | 100 | 80 | 100 | 32 | 4 | 2900 | 100FMZ-32 | 15 |
100JMZ-38X | 100 | 100 | 110 | 38 | 5 | 2900 | 100FMZ-38X | 22 |
100JMZ-50 | 100 | 80 | 100 | 50 | 5 | 2900 | 100FMZ-50 | 37 |
125JMZ-40 | 125 | 100 | 200 | 40 | 5 | 2900 | 125FMZ-40 | 37 |
125JMZ-55 | 125 | 100 | 200 | 55 | 5 | 2900 | 125FMZ-55 | 45 |
150JMZ-40 | 150 | 125 | 300 | 40 | 5 | 2900 | 150FMZ-40 | 55 |
150JMZ-55 | 150 | 125 | 300 | 55 | 5 | 2900 | 150FMZ-55 | 75 |
200JMZ-18 | 200 | 150 | 400 | 18 | 4 | 1450 | 200FMZ-18 | 37 |
200JMZ-25 | 200 | 150 | 400 | 25 | 4 | 1450 | 200FMZ-25 | 45 |
