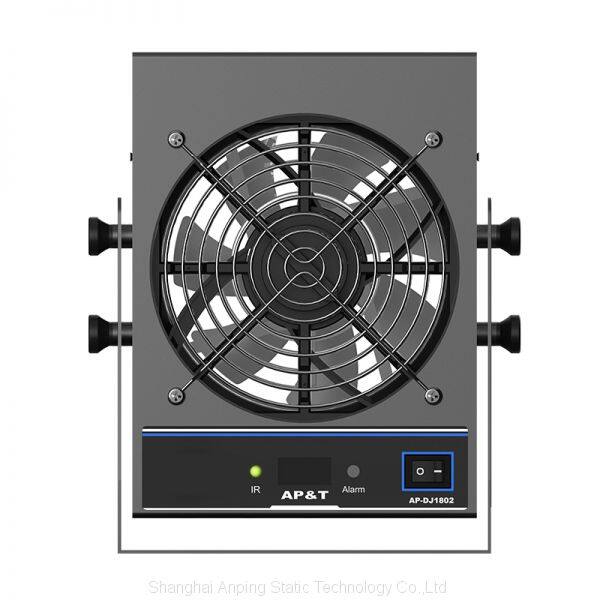

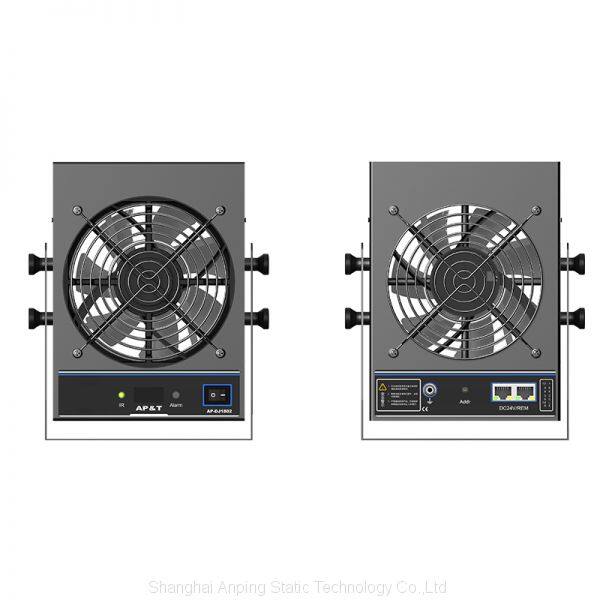

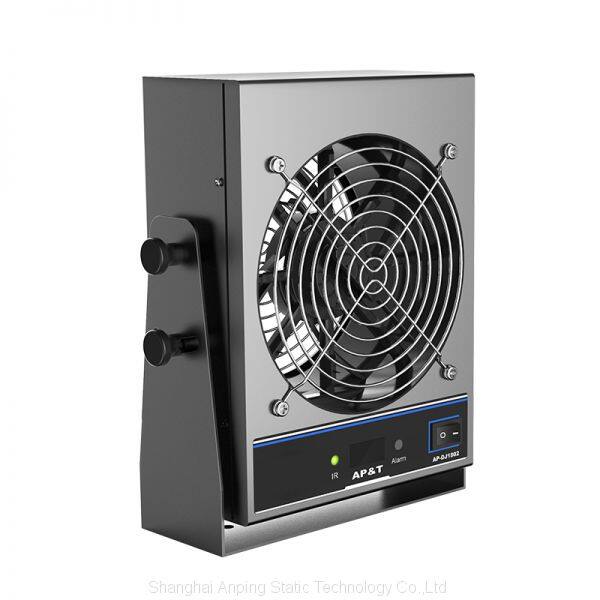

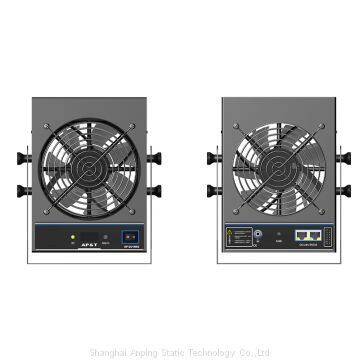

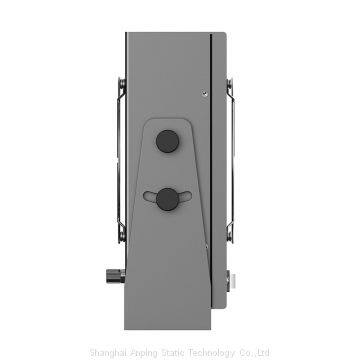

Mini desk top ionizing air blower anti static eliminator

Input voltage

DC 24V (dual RJ45 interface)

Input current

＜0.6A

Output voltage

DC±5KV→±5.5KV

Power

＜14.5W

Ion emission

DC

Emitter electrode

Tungsten

Discharge range

750*300mm（L*W）

Air volume

＜179CFM

Noise

＜75dBA（150mm from air outlet）

Ozone thickness

≤0.05ppm（150mm from air outlet）

Ion balance

≤|±10V|

Discharge speed

≤1.5S（300mm from air outlet）

Alarm indication

Boot instant-blue light

Normal working -Green light(Under monitoring)

Fan alarm -Red light flash with beeping

Ionization abnormal-Red light slow flash with beeping

Blue light blinks when infrared debugging

Working temperature

0℃-50℃

Working humidity

＜70%RH

Dimension

177*81*205.5mm（L*W*H）

Power adaptor

1. Interface power supply (default configuration):

INPUT: AC100—240V 50 / 60Hz;

OUTPUT: DC24V 2A (dual RJ45 interface)

2. Jack-type power supply (customized):

INPUT: AC100—240V 50 / 60Hz;

OUTPUT: DC24V 2A (5.5 * 2.5 single male head)

Integrated power supply

(Optional)

INPUT：AC100—250V  50/60Hz

OUTPUT: DC24V 2A (16 RJ45 interfaces)

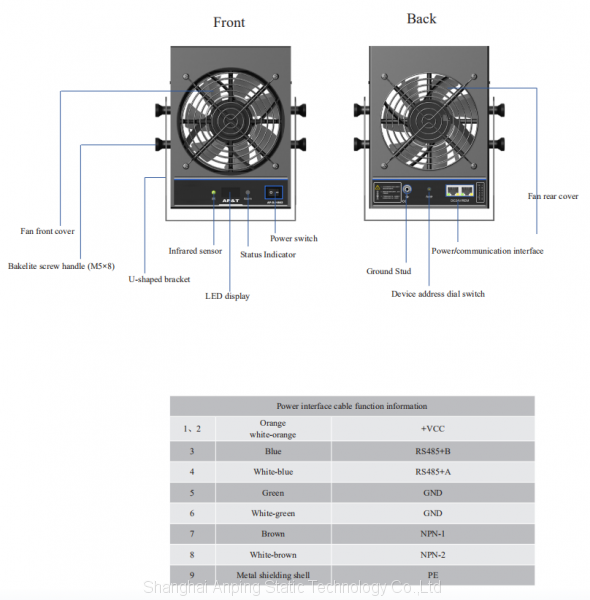

Communication method

RS485

Shell material

Aluminum dusting

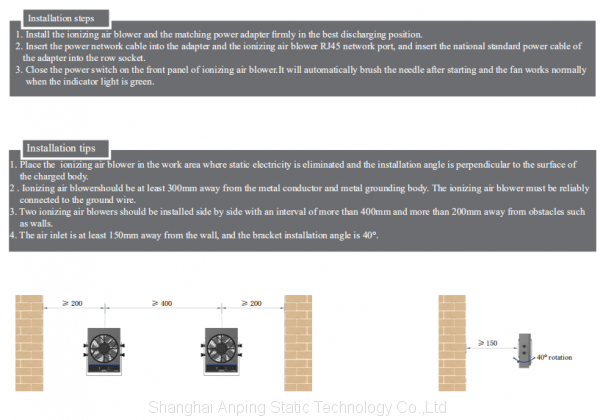

Installation accessories

1 pair of U-shaped aluminum powder spraying mounting bracket, 2 pairs of stainless steel screw handles (M5 × 8)

Weight

Bare metal (including bracket) 1125g

Net weight (network cable, power cord, adapter, remote control) 1590g

Gross weight 2080g

Quality assurance

1Year

Certificate

CE
