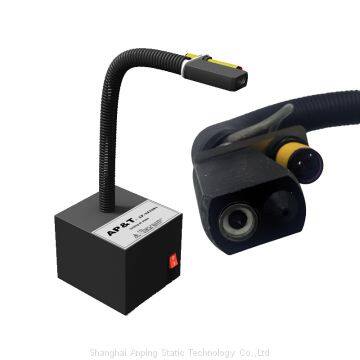

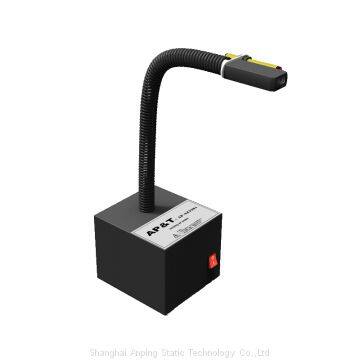

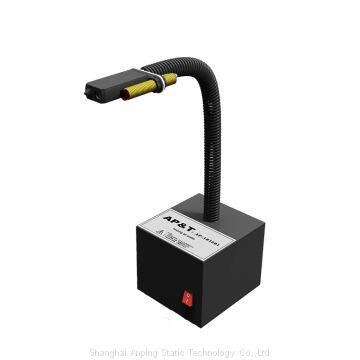

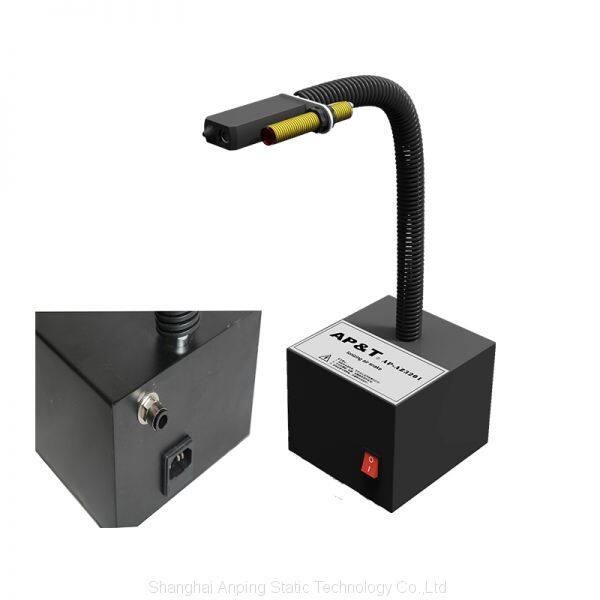

Help CenterAP-AZ3201 Inductive Antistatic Dust Removal Ionizing Air Snake
Related Products
-
Static Elimination Device AP-AZ5203 Anti-shock Ion PenNegotiableMOQ: 1 Piece -
Anti Static Brush AP-AC0001 Passive Carbon Brush Static EliminatorNegotiableMOQ: 10 Pieces
-
Static Eliminator Ionizing Air NozzleUS$ 158 - 198MOQ: 1 Piece
-
Mini Desktop Ionizing Air Blower Anti Static EliminatorUS$ 98 - 128MOQ: 1 Piece
-
DC Ionizing Air Blower Mini Ionizer FanUS$ 98 - 128MOQ: 1 Piece
General
AP-AZ3201 Ionizing air snake is one of the ionizing air snake series products manufactured by Shanghai Anping Static Technology Co.,Ltd (AP&T) .

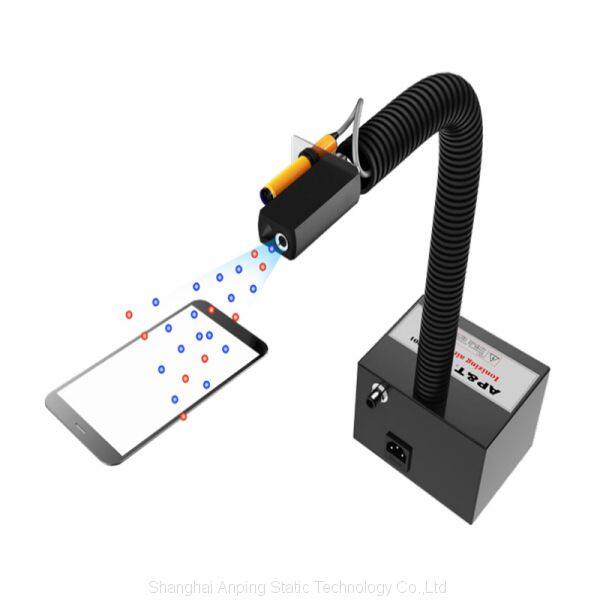

AP-AZ3201 adapts AC high voltage acting on the special emitters to ionizer the air and generate positive and negative high voltage ion. With the help of compressed air to convey positive and negative ions to the object surfaces and neutralize the positive and negative ions to achieve the goal of efficient and reliable static removing.
It is widely used in electronics, plastics, chemical, printing, electro-optical industries.
◆ Features
l Small dimension, flexible & reliable.
l Fast static & dust removal.
l The induction control part is integrated with the power supply.
l Auxiliary far infrared automatic sensor switch to avoid manual operation.
l Longer distance of static removing by compressed air assistance.
l Work under High voltage and micro current(μA level)
l Clean the dust at the mean time of static removing.
◆ Specification
Model |
AP-AZ3201 |
Input Voltage |
AC220V 50Hz or AC110V 60Hz |
Power |
26W |
Working distance |
150－300mm |
Ion balance |
≤|±50V|（150mm from air snake） |
Discharge speed |
≤1.5S（150mm from air snake） |
Noise |
（150mm from the air outlet） |
Medium used |
clean compressed air |
Air pressure |
0.2 - 0.6MPa |
Working temperature |
0°C - 50°C |
Compressed air connector |
ф8mm(customize available) |
Dimension |
156*127*113mm（L*W*H） |
Net weight |
3350g（including power cord, optoelectronic switch and clamp ring） |
Gross weight |
3780g |
