Product Details
Brand Name: | Yuanyao | Place of Origin: | China | Model Number: | YSDT-1000 |
Type: | Control Box | External Size: | 1600*2030*1750mm | Protection Level: | Other |
Product Description

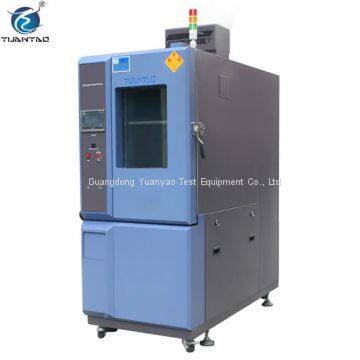

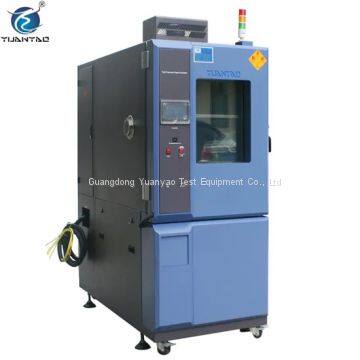

LCD Controller Fast Heating and Cooling Climate Test Chamber
Change Rate Temperature Test Chamber Application:
High and low temperature rapid change, for test the industrial laboratory product, such as bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products.
Change Rate Temperature Test Chamber Advantage:
1. High quality, resonable price.
2. Digital controller
3. Indicton resolution: 0.01° C
4. Excellent performance
5. Stainless steel
Change Rate Temperature Test Chamber Specification
Model | YICT-225 | YICT-306 | YICT-408 | YICT800 | YICT-1000 | ||||
Inner chamber size w×h×d(cm) | 50×75×60 | 60×85×60 | 50×85×80 | 100×100×80 | 100×100×100 | ||||
Exterior chamber size w×h×d(cm) | Depends on inner chamber size | ||||||||
Testing temperature range | -70~150ºC(KS);-40~150ºC(KL);-20~150ºC(KR) | ||||||||
Fast change temperature range | -70ºC kinds:-50~+85ºC(KS);-40ºC kinds:-20~+85ºC(KL);-20ºC kinds:0~+85ºC(KR) | ||||||||
Heating-up&Cooling-down speed | 3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min(Linear or Non-linear) | ||||||||
Performance | Temp.fluctuation | ±2.0ºC | |||||||
Temp.uniformity | ±1.5ºC | ||||||||
Temp.resolution | 0.01ºC | ||||||||
Heating-up time | -70~150ºC<60min;-40~150ºC<50min;-20~150ºC<35min | ||||||||
Cooling-down time | +20~ -70ºC<70min;+20~ -40ºC<55min;+20~ -20ºC<35min | ||||||||
Material | Exterior chamber material | Cold-rolled steel+Powder coating | |||||||
Interior chamber material | SUS#304 Stainless steel | ||||||||
Insulation | PU fiberglass wool | ||||||||
System | Wind circulation | Cooling fan | |||||||
Heating system | SUS#Stainless steel high-speed heater | ||||||||
Refrigeration system | Imported tecumseh compressor+fin type evaporator+air(water)cooling system | ||||||||
Other components | Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable) | ||||||||
Safety protection device | Over-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lamp | ||||||||
Power supply | AC 3phase380V 60/50Hz | ||||||||
Customization service | Non-standard or special requirements are all welcome |
Customization service is available, we can set & design equipments according to your own specific requirements!
