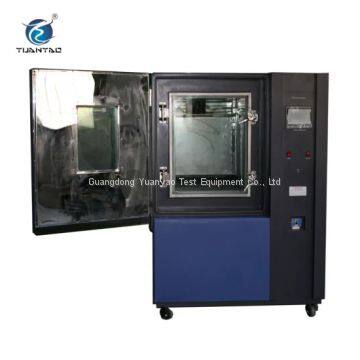

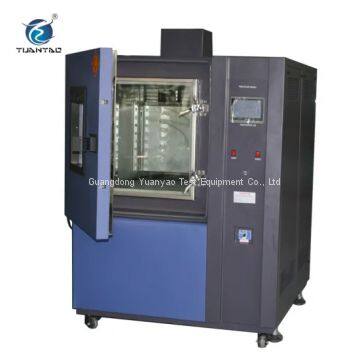

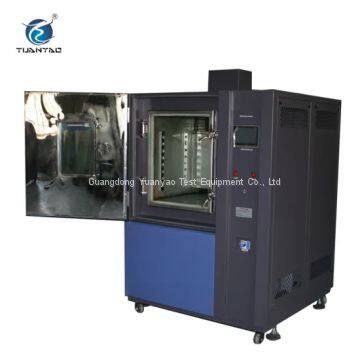

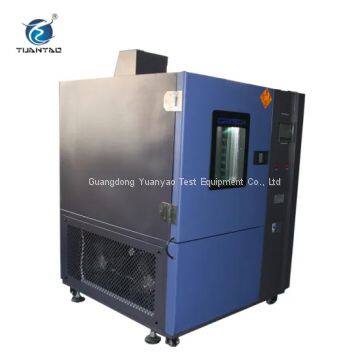

Yuanyao hot selling productsCE Certificate Low Pressure high low temperature Climate Chamber
CE Certificate Low Pressure high low temperature Climate Chamber simulates the high low temperature and low pressure condition to test the temperature and low pressure resistance performace of the products, it is widely applied to aviation, aerospace,electronics, national defense,scientific research and other industries.
Features:
1. True color touch screen PLC controller, English language display, easy operation. 32groupsx800segments/group, 999 cycles program capacity.
2. Can choose fix and program control mode.
3. Seperately do the temperature, humidity and low pressure test; do the temperature low pressure test at the same time.
4. Customization and overseas service are available.
5. One year free parts warranty.
Till now, we received 7 patent certificates for our climate test equipment, now we are applying for the patent certificates for our new research and develop test equipment in 2018.
Thanks a lot for your attention! Any questions, please feel free to contact me, I will be here to reply you within 24hours during the working time.Aircraft Parts High Altitude climate test chamber
Aircraft Parts High Altitude climate test chamber simulates reliable storage and transportation climate of high altitude, sky, plateau area and low pressure high low temperature, it is applied to defense industry, aerospace industry automation components, auto parts, electronics, electrical components, plastic, chemical industry, pharmaceutical industry, food industry and other related products.
Features:
1.High performance and quiet operation
2.Space-saving designed for flush installation to wall
3.Altitude range from ground to 100,000 feet
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5.High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6.Multiple layers of safety device to easy maintenance.
7.Customization service is available.
Technical data
| Model | YCTL-080 | YCTL-150 | YCTL-225 | YCTL-408 | YCTL-800 | YCTL-1000 |
| Internal dimensions W*H*D(cm) | 40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 100*100*80 | 100*100*100 |
| External dimensions W*H*D(cm) | 60*172*120 | 121*160*125 | 121*175*135 | 131*185*155 | 171*200*155 | 171*200*175 |
| Temperature Range | -60ºC ~ +150ºC | |||||
| Temp. fluctuation | ±0.5ºC( room pressure) | |||||
| Temp.accuracy | ±2.0ºC (room pressure) | |||||
| Heat up time | 3ºC/min from +20ºC~+150ºC(RP,emptyload) | |||||
| Cooling down time | 1ºC/min(RP,emptyload) | |||||
| Pressure range | Room pressure ~ 0.5Kpa | |||||
| Pressure control tolerance | ±0.2Kpa( ≤2Kpa),±2(2Kpa~40Kpa),±5%(≥40Kpa) | |||||
| Depressurization time | ≤45 mins | |||||
| Material | Inner chamber SUS#304 stainless steel plate Exterior chamber cold rolled plate+ Power Coated |
|||||
| Heating system | SUS#stainless steel high-speed heater | |||||
| Air cicultation system | Centrifugal fan | |||||
| Refrigeration system | Compressor +evaporator + condenser | |||||
| Other Components | Sample shelves 2pcs, electronical wire 1pcs(3m), pressure test port. | |||||
| Safty protection devices | Overheat circuit-breaker,compressor overload protection,control system overload protection,overload indicator phase sequence protection, high voltage and low voltage protection, over temperature protection, fan overcurrent protection. | |||||
| Power Supply | 3∮380V 60/50Hz(adjustable) | |||||
| Costomization | No-standard or special requirement are all welcome | |||||
