12v Diesel Engine Fuel Stop Solenoid Valve
- Ningbo
- T/T Credit Card
You May Like
-
Forklift Accessories CDB2-F15 2 Way Diverter Valve
-
YJZQ-N High Pressure Hydraulic Ball Valve
-
Pneumatic Pilot Diaphragm Solenoid Valve for Water Cheap Price 12v 24v 110v 220v
-
Low Pressure Electric Solenoid Water Valve 24v 12v 110v 220v
-
Plastic Water Dispenser Purifier Solenoid Valves Mini Pvc 1/4" BSP 12v 24v 110v 220v
-
Pneumatic Small Direct Acting Electric Solenoid Water Valve 1/4 Inch 24v 12v 110v 220v
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | MI-05 | Material | Brass | |
| Structure | Control | Standard or Nonstandard | Standard | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Port Size | 1/8" 1/4" 3/8" 1/2" | |||
| Temperature of Media | Medium Temperature |
Product Description

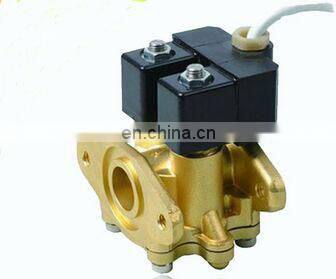

12v Diesel engine fuel stop solenoid valve
Quick Details
Standard or Nonstandard: Standard
Structure: Safety
Pressure: Medium Pressure
Power: Solenoid
Material: Brass
Temperature of Media: Medium Temperature
Media: fuel oils, gas, water and etc
Port Size: flange pitch-row 70, M8
Place of Origin: China (Mainland)
Model Number: JZY25DC01
Medium: fuel oils, gas, water and etc
Overshoot ( closing time): set lead 0.5L pressure when nozzle open:0.115MPa<0.3L
Leakage: 0
Flow rate: >42L/min( high flow rate)
Power supply: 220VAC 50Hz 12VDC 50Hz 24VDC 50Hz,
Voltage deviation: ±30%
Coils grade: H
nsulation strength: ≥20MΩ
Working form 100% lead length: 1.5m (standard)
Explosion-proof mark: Exmb
Specifications
fuel dispenser solenoid valve for diesel and fuel dispenser in service station
Good quality and nice price
Offer soon delivery
fuel dispenser solenoid valve for diesel and fuel dispenser in service station to control speedily and efficiently the high/low oil flow
Medium: fuel oils, gas, water and etc
Overshoot (closing time): set lead 0.5L pressure when nozzle open: 0.115 MPa <0.3L
Leakage: 0
Flow rate: >42L/min( high flow rate)
Power supply: 220VAC 50Hz 12VDC 50Hz 24VDC 50Hz
( Perssure when nozzle close 0.175Mpa)
( Pressure when nozzle open): 3.5-4L/min( small flow rate )
Voltage deviation: ±30% Coils grade: H Insulation strength 20MΩ
Working form 100% lead length: 1.5m (standard) Explosion-proof mark: Exmb Power: 2×5W
Pressure range: 0.35MPa (Max) 0.035 Mpa (Min)
Ambient temperature: -40 ~55
Relative humidity: 95%(+25 )
Medium temperature: -4~50
Working air pressure: 86~106Kpa
Workplace: Applies to Zone 1, Zone 2 including type IIÿgroup T1~T3 explosion gas mixture
Inlet port | Flange connect pitch-row70 |
| Mounting hole φ9 or M8 |
Outlet port | Flange connect pitch-row 70 |
| Mounting hole φ9 or M8 |
Specification
| Pattern: | Two-port two-position | |||
| Principium: | direct acting type | |||
| Control mode: | normally close | |||
| Valve body: | brass | |||
| Diaphragm material: | NBR: ≤80°C ,FKM≤150°C | |||
| Working pressure: | 0~10bar | |||
| Max pressure: | 10bar | |||
| Voltage: | AC220V AC110V DC12V DC24V | |||
| Medium: | Air ,water ,Liquid ,oil ect. | |||
| Application: | Gas protection welder, various types of burners, test equipment small-flow air water control system | |||
| Model | Pipe | Orifice Diameter(mm) | Principium | CV | Body material | Seal | Work Pressure |
| MI-03 | 1/8" 1/4" | 3 | direct acting | 0.3 | Brass , SS304 | NBR,FKM | 0-13bar |
| MI-04 | 3/8" | 4 | 0.58 | NBR,FKM | 0-7bar | ||
| MI-05 | 1/2" | 5 | 0.65 | NBR,FKM | 0-5bar | ||
| MI-08 | 1/2" | 8 | 1.2 | NBR,FKM | 0-1bar |
Dimensions
(mm)
| Orifice(mm) | A | B | C |
| DN3 | 44 | 25 | 80 |
| DN4 | 44 | 25 | 80 |
| DN5 | 50 | 25 | 80 |
| DN8 | 50 | 25 | 80 |
| Materials of construction | |||
| Parts in contact with the medium | |||
| Valve of body | Brass | SS304 | |
| Seals | NBR ,EPDM ,FKM | ||
| Magnetic isolation pipe | SS304 | ||
| Core | Stainless steel alloy | ||
| Spring | SS304 | ||
| The shading | Copper | ||
small brass and plastic non return valves solenoid gas valve
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
