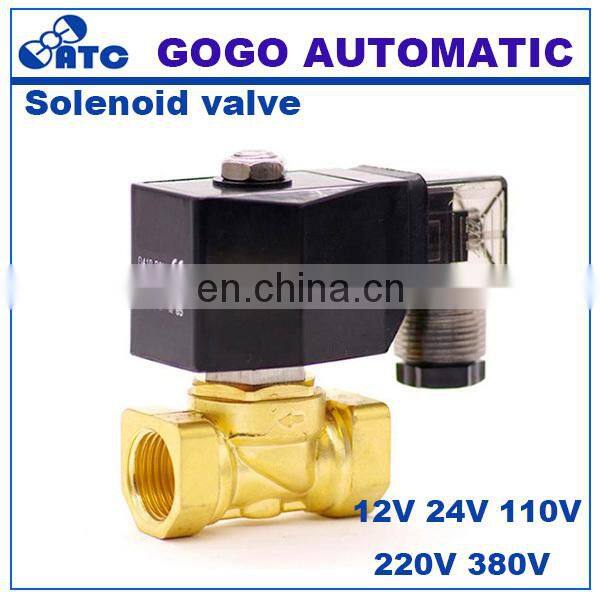

Normally closed Pneumatic brass 15mm water solenoid valve
- 3000 Piece / Pieces per Month
- Ningbo
- T/T Credit Card
- Large water solenoid valve flange type cast iron 12v 24v 110v 220v
- 2 inch water solenoid valve normall close PU-50 50mm Original 2 way NBR FKM
- Normally open water solenoid valve 1 inch PU-25K 25mm 220v
- 1/2 inch water solenoid valve 12 volt PU-15 15mm
- 12v electric water valve low pressure 1/2 inch BSP
- 1 inch water solenoid valve high temperature for steam hot water
Product Details
Brand Name: | GOGO | Place of Origin: | Zhejiang, China | Model Number: | PU-15 |
Application: | General | Structure: | Control | Standard or Nonstandard: | Standard |
Power: | Solenoid | Port Size: | 1/8" 1/4" 3/8" 1/2" 1" 2" | ||
Temperature of Media: | Medium Temperature |
Product Description
Normally closed Pneumatic brass 15mm water solenoid valve
1. Normally closed

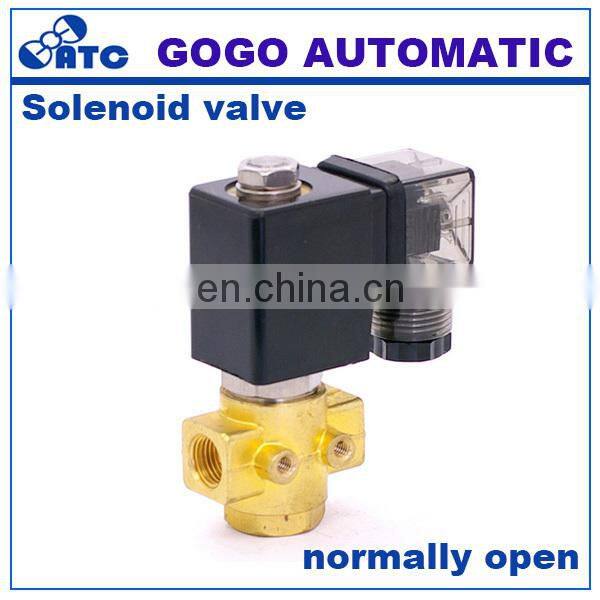

2. Normally open
Specification
Model | Pipe | Orifice Diameter(mm) | Principium | CV | Body material | Seal | Work Pressure |
PU-03 | 1/8" 1/4" | 2.5 | direct acting type | 0.3 | Brass or SS304 | NBR | 0-10bar |
PU-04 | 1/4" | 4 | 0.58 | 0-10bar | |||
PU-05 | 1/4" | 5 | 0.65 | 0-7bar | |||
PU-06 | 1/4" | 6 | 0.8 | 0-5bar | |||
PU-10 | 3/8" | 15 | Kick pilot type | 4.6 | 0-10bar | ||
PU-15 | 1/2" | 15 | 4.6 | 0-10bar | |||
PU-20 | 3/4" | 20 | 8.5 | 0-10bar | |||
PU-25 | 1" | 25 | 12 | 0-10bar | |||
PU-35 | 1-1/4" | 35 | 24 | 0-10bar | |||
PU-40 | 1-1/2" | 35 | 29 | 0-10bar | |||
PU-50 | 2" | 50 | 48 | 0-10bar | |||
PU-25F | Flange | 25 | 12 | 0-10bar | |||
PU-35F | 35 | 24 | 0-10bar | ||||
PU-40F | 40 | 29 | 0-10bar | ||||
PU-50F | 50 | 48 | 0-7bar |

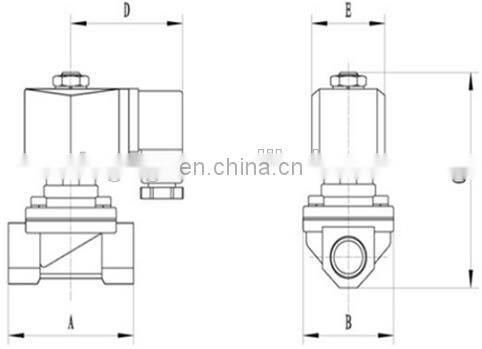

Dimensions
(mm)
Size | A | B | C | D | E |
DN2.5 | 40 | 26 | 66 | 27 | 30 |
DN4/5/6 | 40 | 26 | 75 | 59.5 | 38 |
DN10 | 65 | 47 | 93 | 59.5 | 38 |
DN15 | 65 | 47 | 93 | 59.5 | 38 |
DN20 | 72 | 54 | 100 | 59.5 | 38 |
DN25 | 90 | 70 | 108 | 59.5 | 38 |
DN35/40 | 120 | 90 | 131 | 64.5 | 48 |
DN50 | 150 | 112 | 146 | 64.5 | 48 |
DN35/40(DC) | 120 | 90 | 150 | 65.5 | 63 |
DN50(DC) | 150 | 112 | 165 | 65.5 | 63 |
Materials of construction | |||
Parts in contact with the medium | |||
Valve of body | Brass | SS304 | |
Seals | NBR ,EPDM ,FKM | ||
Magnetic isolation pipe | SS304 | ||
Core | Stainless steel alloy | ||
Spring | SS304 | ||
The shading | Copper |
Normally closed Pneumatic brass 15mm water solenoid valve

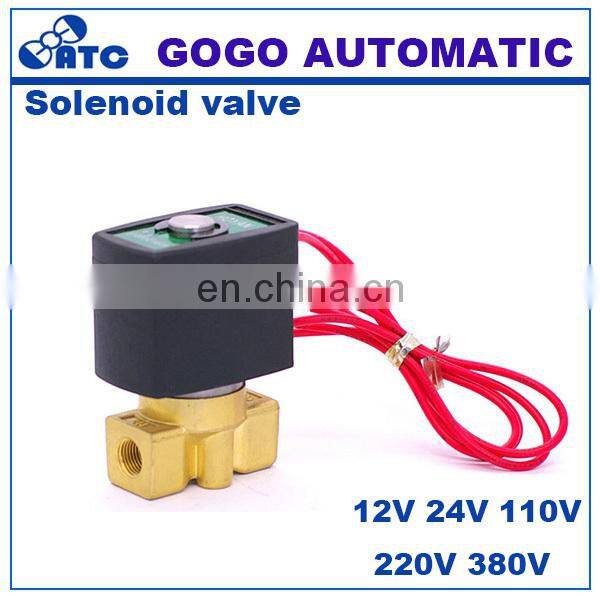

small water solenoid valve

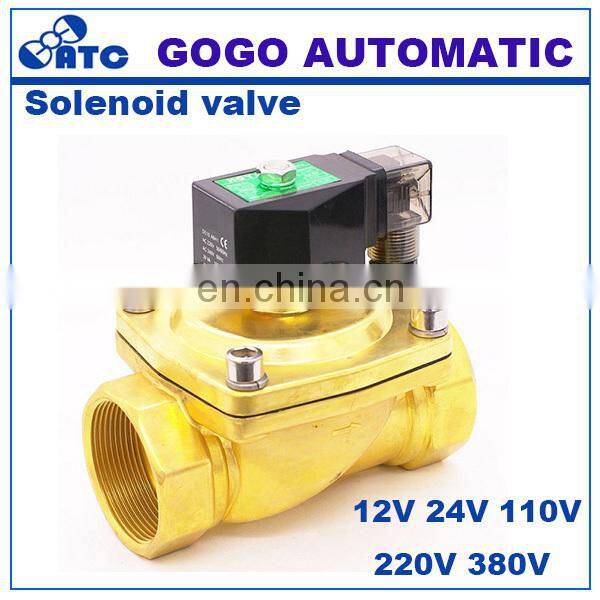

1 inch water solenoid valve

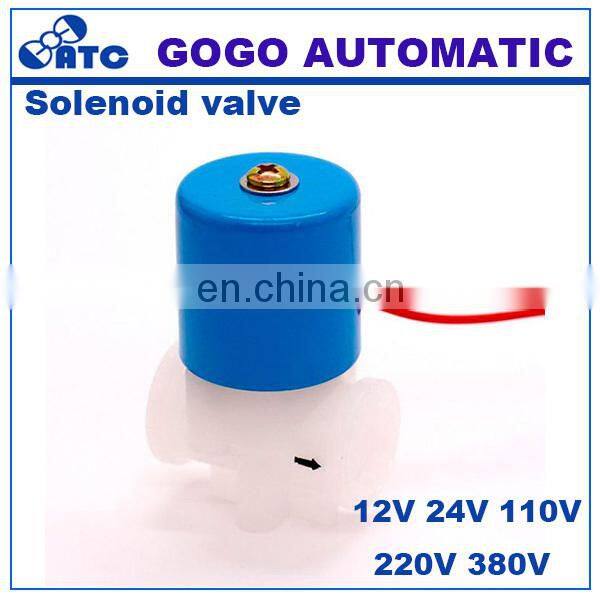

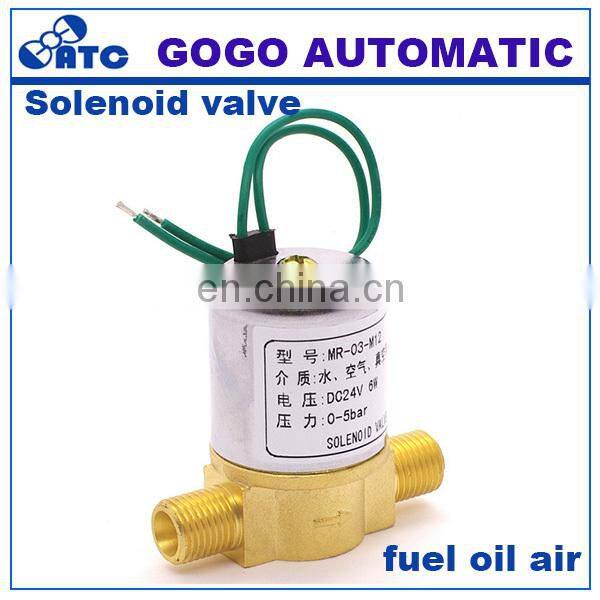

samll wire type water solenoid valve

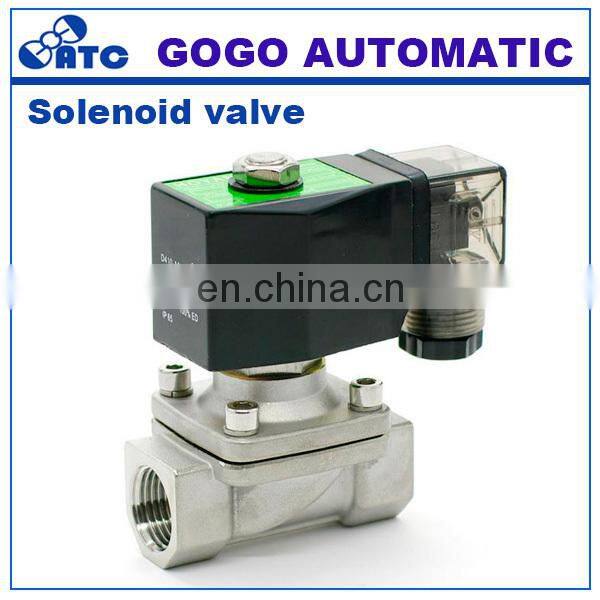

Stainless steel water solenoid valve

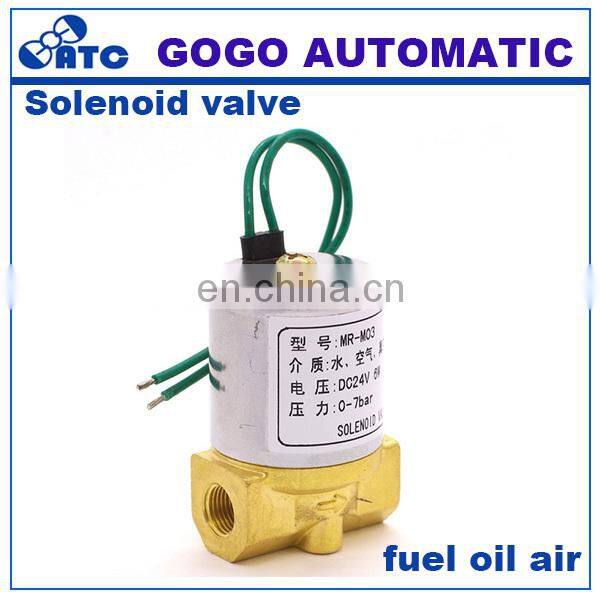

mini water solenoid valve

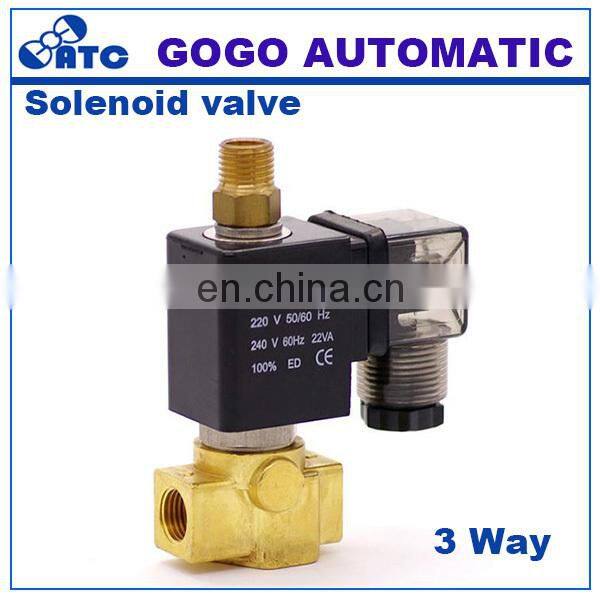

3 way air water solenoid valve
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
Founded in July,2014, Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality, potential and comprehensive strength. The company is located in the Zhejiang Ningbo Science &Technology zone, a unique place with beautiful scenery and gifts of nature.
Main products of our company : automatic parts, pneumatic solenoid valve, air water solenoid valve, hydraulic valves, gear piston or vane pumps, fittings connectors, temperature pressure transmitter, temperature controller, PLC, DCS parts, hardware stainless steel or brass or plastic parts , etc.
Since its foundation, the company keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers. " We are doing everything to offer our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
