Home > Products > Water solenoid valve GOGO > Pneumatic Diaphragm Valve,pneumatic Control Valves,diaphragm Valve
Pneumatic Diaphragm Valve,pneumatic Control Valves,diaphragm Valve
- Ningbo
- T/T Credit Card
You May Like
-
Air Non Return Valve ,brass Non Return Valve China Supplier
-
ZZWP Standard Self Temperature Control Valve Thermostatic Valve Two-way / Three-way
-
Multi-function Solenoid Valve Solenoid Valve Two Pointed Mouth DN15
-
Excavator Pump Control Valve, Excavator Hydraulic Control Valve
-
PF Series Hydraulic Valve Prefill Valve
-
Gate Valve 3 Inch Brass Valve Thickening Z15W-16T
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | MI-05 | Material | Casting | |
| Structure | Control | Standard or Nonstandard | Standard | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Port Size | 1/8" 1/4" 3/8" 1/2" | |||
| Temperature of Media | High Temperature |
Product Description

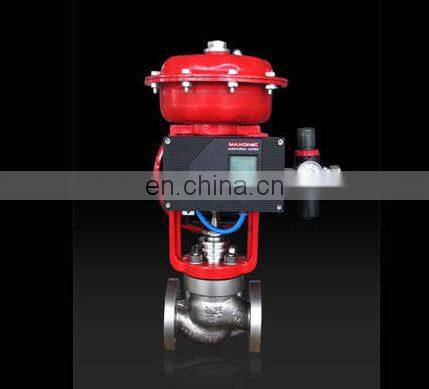

pneumatic diaphragm valve,pneumatic control valves,diaphragm valve
YSIQ10 series of intelligent regulating valve
1) YSIQ10 series of intelligent regulating valve uses modular design with strong compatibility and interchangeability, impact structure and wide variety. The varieties of combination of the components of the trim make it applicable for high pressure head, low noise and high precision to meet the different demand of usage for customers. The modular, double-side valve seat and compressing connection of the valve body, greatly enhance the sealing grade an service life of the valve lead, make it easy to repair and greatly increase the general performance of the regulating valve.
2) The PN class is ANSI are 150and 300, the DN scale 3/4-8inches under the temperature of -190celsius-600celsius. The sealing grade of the metal sealing type is IV-V and the soft sealing VI. There is zero leakage and the flow property is equal percent approximately.
YSIQ10
Characteristics:
The ZM10 multiple springs actuator using modular design can be freely replaced on spot, reacted and the spring can be effectively protected from the corrosion to prolong the service life of actuator for the usage of the customers. The actuator and the intelligent electric valve positioner are connected pipelessly to strengthen the anti-seismic performance, stability and regulating precision meet or precise regulation of the working conditions.
Main Material
Valve body: WCB, CF8, CF3, CF8M, CF3M
Valve seat: 304,304L, 316, 316L
Valve stem: 304, 304L, 316, 316L, 630
Specification
| Pattern: | Two-port two-position | |||
| Principium: | direct acting type | |||
| Control mode: | normally close | |||
| Valve body: | brass | |||
| Diaphragm material: | NBR: ≤80°C ,FKM≤150°C | |||
| Working pressure: | 0~10bar | |||
| Max pressure: | 10bar | |||
| Voltage: | AC220V AC110V DC12V DC24V | |||
| Medium: | Air ,water ,Liquid ,oil ect. | |||
| Application: | Gas protection welder, various types of burners, test equipment small-flow air water control system | |||
| Model | Pipe | Orifice Diameter(mm) | Principium | CV | Body material | Seal | Work Pressure |
| MI-03 | 1/8" 1/4" | 3 | direct acting | 0.3 | Brass , SS304 | NBR,FKM | 0-13bar |
| MI-04 | 3/8" | 4 | 0.58 | NBR,FKM | 0-7bar | ||
| MI-05 | 1/2" | 5 | 0.65 | NBR,FKM | 0-5bar | ||
| MI-08 | 1/2" | 8 | 1.2 | NBR,FKM | 0-1bar |
Dimensions
(mm)
| Orifice(mm) | A | B | C |
| DN3 | 44 | 25 | 80 |
| DN4 | 44 | 25 | 80 |
| DN5 | 50 | 25 | 80 |
| DN8 | 50 | 25 | 80 |
| Materials of construction | |||
| Parts in contact with the medium | |||
| Valve of body | Brass | SS304 | |
| Seals | NBR ,EPDM ,FKM | ||
| Magnetic isolation pipe | SS304 | ||
| Core | Stainless steel alloy | ||
| Spring | SS304 | ||
| The shading | Copper | ||
small brass and plastic non return valves solenoid gas valve
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
Founded in July,2014, Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality, potential and comprehensive strength. The company is located in the Zhejiang Ningbo Science &Technology zone, a unique place with beautiful scenery and gifts of nature.
Main products of our company : automatic parts, pneumatic solenoid valve, air water solenoid valve, hydraulic valves, gear piston or vane pumps, fittings connectors, temperature pressure transmitter, temperature controller, PLC, DCS parts, hardware stainless steel or brass or plastic parts , etc.
Since its foundation, the company keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers. " We are doing everything to offer our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
solenoid gas valve
