Product Details
Brand Name: | GOGO | Place of Origin: | Zhejiang, China | Model Number: | MFZ0101M |
Application: | General | Standard or Nonstandard: | Standard | ||
Power: | Solenoid | Media: | Water | Temperature of Media: | Medium Temperature |
Product Description

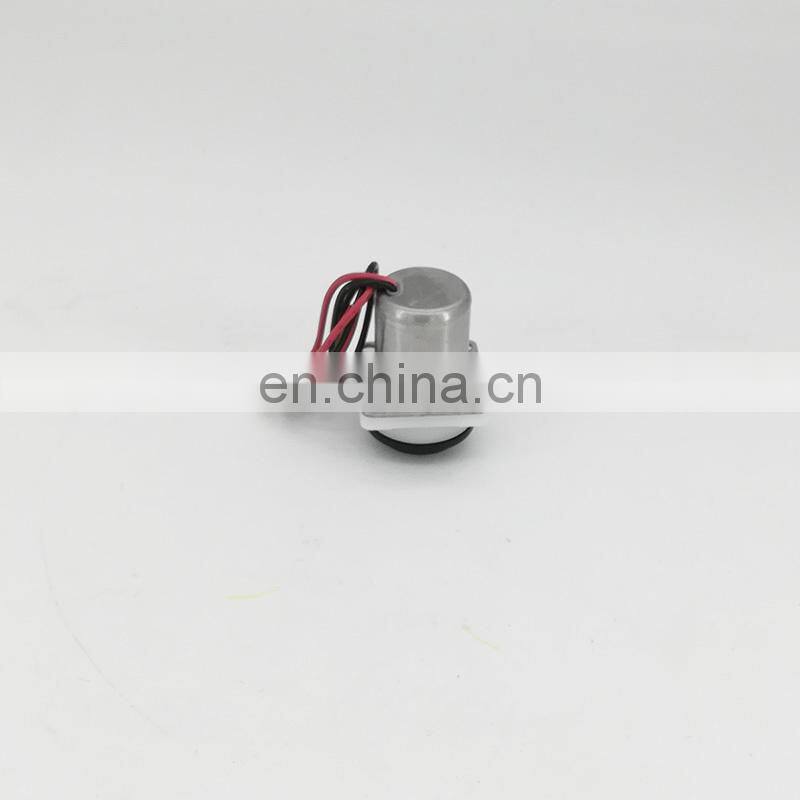

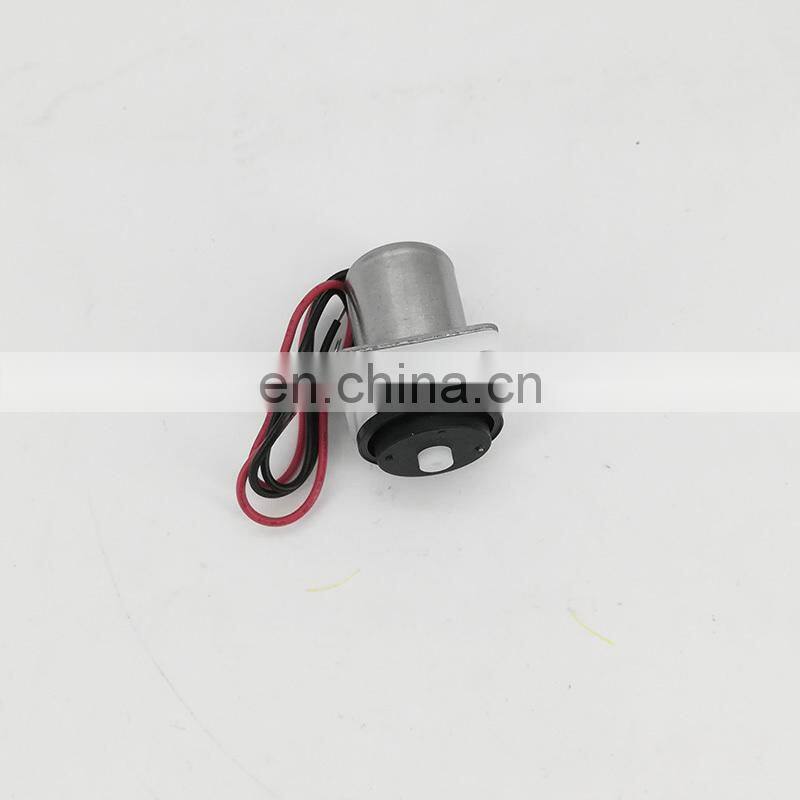

3.6V~6.5V coil / valve solenoid for bistable latching water valve
Product parameters:
Working voltage: DC3.6V~6.5 V
Coil resistance: 9 ohms
Work form: positive pulse open valve, negative pulse off valve
Pulse width: 30ms
Working pressure: 0.03-0.8MPa
Wiring: "+" connects to red, "-" connects to black
life: ≥ 30 million times

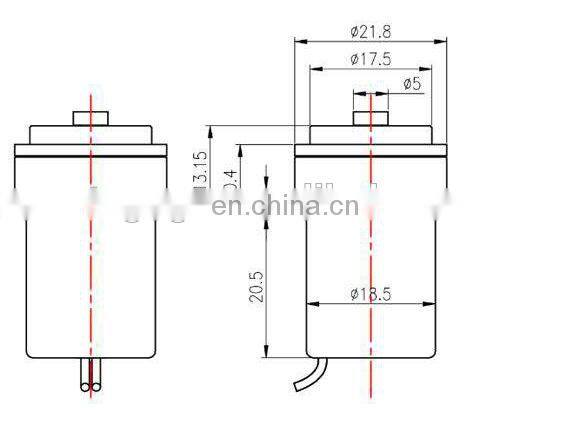

Dimensions:
Picture:
Packing :
one box + one valve solenoid
1.Inner packing: opp bag, then carton box for each product
2.Outer packing: export standard carton, Foam outside protecting the goods against damage
3.Usually we ship your order by sea or by air...
4.We do our best to ship your order within 1 week after receiving your payment
5.We'll tell you the tracking number once your order has been sent
6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
