Home > Products > Water solenoid valve GOGO > 24VDC 220V AC High Quality Electric Drain Timer Connector for Solenoid Valve Automatic Drain Water Controller DIN43650A
24VDC 220V AC High Quality Electric Drain Timer Connector for Solenoid Valve Automatic Drain Water Controller DIN43650A
- T/T Credit Card
You May Like
-
GOGO High Quality 1/2'' Electric Drain Timer Valve With Brass Fitting 220v 24V 2 Way Water Valve Air Compressor Automatic Valve
-
GOGO High Quality 1/2'' Electric Drain Timer 24v Solenoid Valve Water Controller Valve Brass 2 Way Compressor Automatic Valve
-
GOGO 0-90bar 2 Way Water High Pressure Solenoid Valve 1/8" 1/4" BSP Orifice 1.5mm Normally Closed Brass Timer Drain Valve
-
GOGO DN15A Manual Reset 1/2" Nickel-plated Brass Gas Emergency Shut off Solenoid Valves for Home DC6-24V
-
GOGO DN20A Manual Reset 3/4" Nickel-plated Brass Gas Emergency Shut off Solenoid Valves for Home DC9-24V 12V DC
-
DN15 Manual Reset 1/2" / Hose to Hose / Aluminum Alloy Gas Emergency Shut off Solenoid Valves Home Gas Leak Detector Alarm DC9V
Product Details
| Brand Name | 24v solenoid valve water controller, ATC GOGO AUTOMATIC | Place of Origin | Zhejiang, China | |
| Model Number | ETD series, DIN43650A | Structure | Control | |
| Power | Solenoid | Port Size | 1/2", G1/2" | |
| Temperature of Media | Medium Temperature |
Product Description
GOGO High Quality Electric Drain Timer connector
for solenoid valve water controller DIN43650A
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
1.Specification
| Product No. | GG205 |
| Product type | DSQ |
| Supply Voltage | 24VDC 240V AC/38VAC 50Hz/60Hz "CE" Marked Timer |
| Absorption current | 4mA Max |
| Operating temperature | -10~50C |
| Class protection | IP65 |
| Switch hoding voltage | 400V Max |
| Switch capacity | 1A |
| Inrush current | 10A for 10ms |
| Duty cycle | 100%ED |
| Switch life | 3x108 |
| Time ON | from 0.5 to 10s |
| Time OFF | from 0.5 to 45min |
| Indicators | Yellow LED |
| Manual override | Test |
| Termination | DIN43650A |

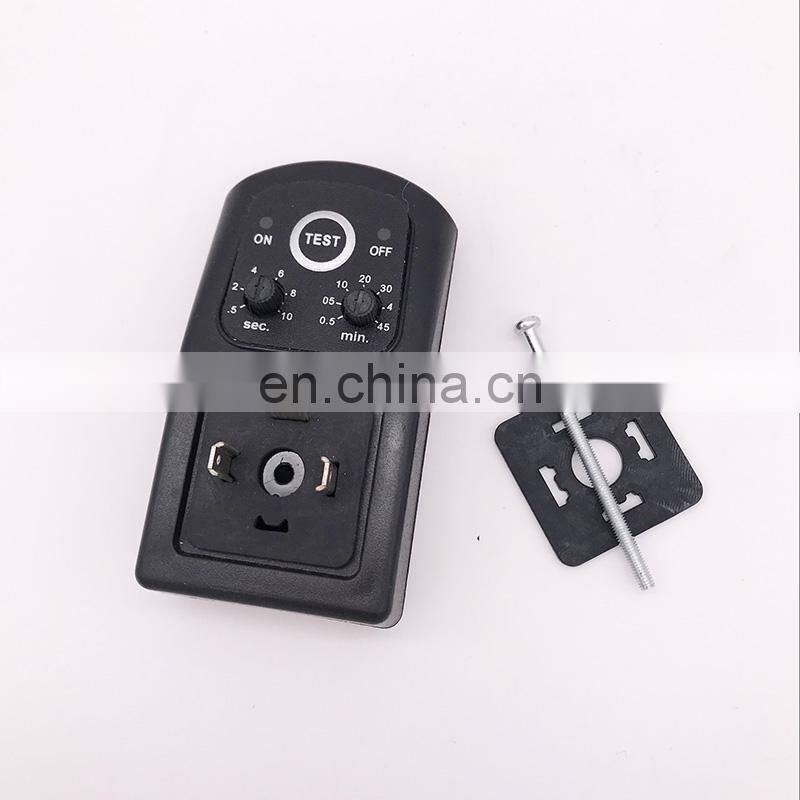

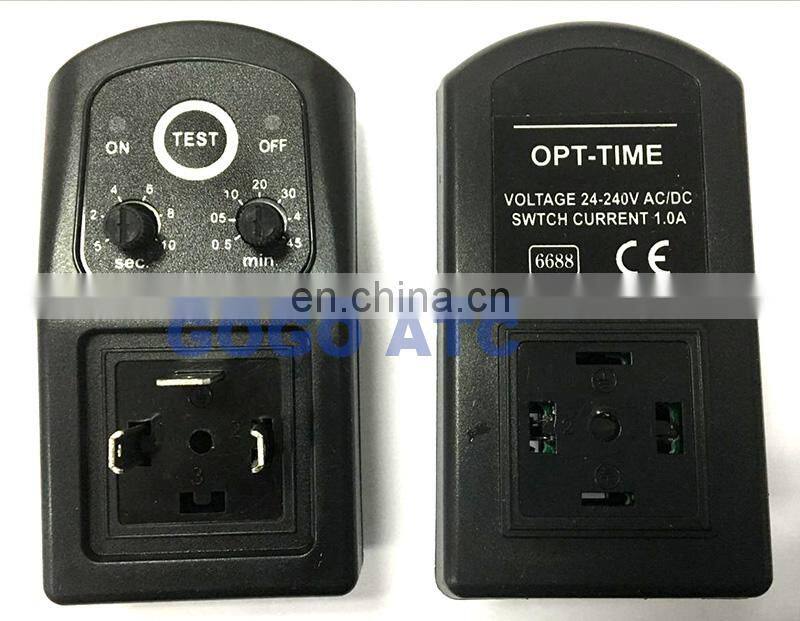

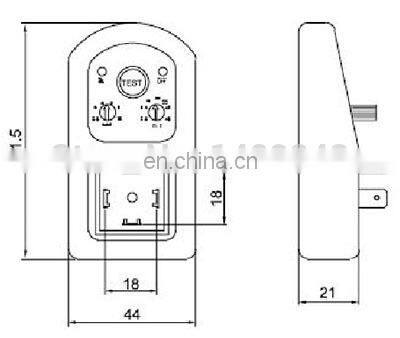

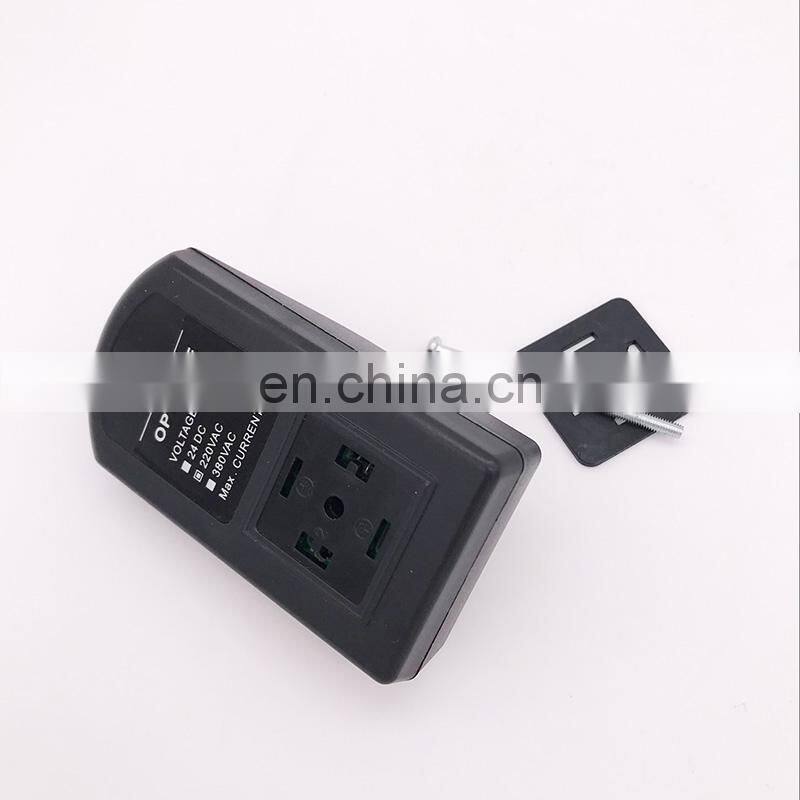

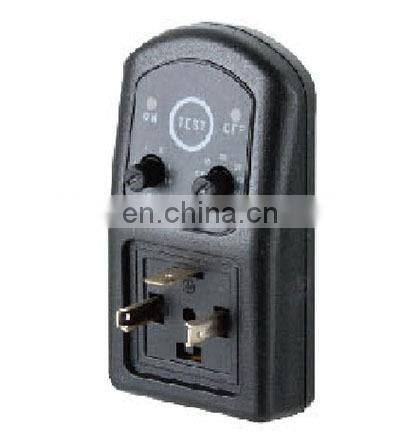

2. Picture
Shipment
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
Founded in July,2014, Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality, potential and comprehensive strength. The company is located in the Zhejiang Ningbo Science &Technology zone, a unique place with beautiful scenery and gifts of nature.
Main products of our company : automatic parts, pneumatic solenoid valve, air water solenoid valve, hydraulic valves, gear piston or vane pumps, fittings connectors, temperature pressure transmitter, temperature controller, PLC, DCS parts, hardware stainless steel or brass or plastic parts , etc.
Since its foundation, the company keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers. " We are doing everything to offer our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
Skype: bagadandan
Drain Timer
