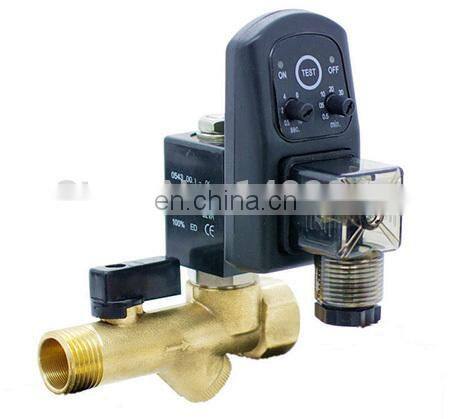

GOGO High Quality 1/2'' Electric Drain Timer 24v Solenoid Valve Water Controller Valve Brass 2 Way Compressor Automatic Valve
- T/T Credit Card
You May Like
-
GOGO 0-90bar 2 Way Water High Pressure Solenoid Valve 1/8" 1/4" BSP Orifice 1.5mm Normally Closed Brass Timer Drain Valve
-
GOGO DN15A Manual Reset 1/2" Nickel-plated Brass Gas Emergency Shut off Solenoid Valves for Home DC6-24V
-
GOGO DN20A Manual Reset 3/4" Nickel-plated Brass Gas Emergency Shut off Solenoid Valves for Home DC9-24V 12V DC
-
DN15 Manual Reset 1/2" / Hose to Hose / Aluminum Alloy Gas Emergency Shut off Solenoid Valves Home Gas Leak Detector Alarm DC9V
-
GOGO DN25A Manual Reset 1 Inch Nickel-plated Brass Gas Emergency Shut off Solenoid Valve for Home DC9-24V 12V DC
-
GOGO DN15 DN20 DN25 Manual Reset G1/2" G3/4" G1" Natural Gas Emergency Shut off Valve Aluminum Alloy for Home DC9-24V 12V DC
Product Details
| Brand Name | 24v solenoid valve water controller, ATC GOGO AUTOMATIC | Place of Origin | Zhejiang, China | |

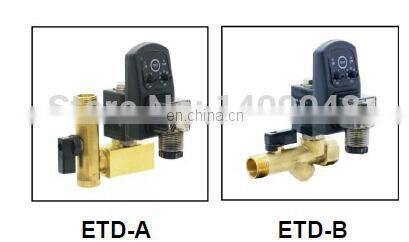

| Model Number | ETD series, ETD-B | Structure | Control | |
| Power | Solenoid | Port Size | 1/2", G1/2" | |
| Temperature of Media | Medium Temperature |
Product Description
GOGO High Quality 1/2'' Electric Drain Timer Valve with
Brass Fitting 2 way 2 position Automatic water valve
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Voltage: DC24V,AC110V,AC220V
2 Position Two Way Electric Drain Solenoid Water Valve
Code Option
Thread Option: G
Standard Voltage Option: DC24V,AC110V,AC220V
Material Option: Brass
Oil Seal Option:NBR,EPDM,FKM
Specication of the Timer | ||
Time interval ( OFF ) | 0.5--45 minutes | |
Discharge time ( ON ) | 0.5--10 seconds | |
Manual test button | micro switch | |
Power supply voltage | 24-380V AC / DC 50 / 60Hz | |
The largest current consumption | 4mA | |
Ambient temperature | -40 °C to 60 °C | |
Water proof grade | IP65 | |
Shell material | Flame retardant ABS plastic | |
Electrical connection | DIN43650A | |
Indicator lamp | LED indicating power on / off | |
Specification of the Valve | ||
Type | Two two direct-acting valve | |
In / out port size | 1/2" | |
Aperture | 3 mm | |
working pressure | 5-16bar | |
Maximum Media temperature | 80°C | |
Valve Material | Forging brass, | |
Insulation class | H | |
Protection grade | IP65 | |
Voltage | 24VDC/110VAC/220VAC | |
Voltage range | 10% | |
- Two position, two way, normal close switch, magnetic solenoid water valve.
- Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.
- Used to control automatically the liquid and gas in the pipeline

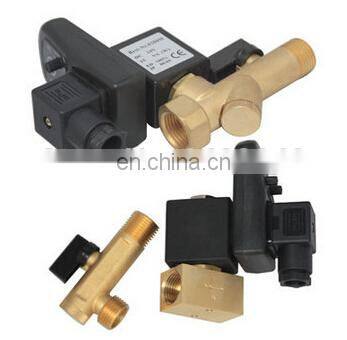

2. Picture
Shipment
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
Founded in July,2014, Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality, potential and comprehensive strength. The company is located in the Zhejiang Ningbo Science &Technology zone, a unique place with beautiful scenery and gifts of nature.
Main products of our company : automatic parts, pneumatic solenoid valve, air water solenoid valve, hydraulic valves, gear piston or vane pumps, fittings connectors, temperature pressure transmitter, temperature controller, PLC, DCS parts, hardware stainless steel or brass or plastic parts , etc.
Since its foundation, the company keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers. " We are doing everything to offer our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
