Home > Products > Water solenoid valve GOGO > Low Energy Consumption Pilot Diaphragm Water Bistable-Latching Solenoid Valve 1 Inch Orifice 25mm NBR GPX-25 150psi Pulse Valve
Low Energy Consumption Pilot Diaphragm Water Bistable-Latching Solenoid Valve 1 Inch Orifice 25mm NBR GPX-25 150psi Pulse Valve
- T/T Credit Card
You May Like
-
G353A045 1.5 Inch Single Diaphragm Air Control Pulse Valve for Bag Dust Removal
-
G353A046 Air Controlled Pulse Valve Bag Cleaning 1.5 Inch Double Diaphragm Valve
-
G353A048 Air Controlled Pulse Valve 2 Inch Dual Diaphragm Dust Control Switch
-
24VDC 220V AC High Quality Electric Drain Timer Connector for Solenoid Valve Automatic Drain Water Controller DIN43650A
-
GOGO High Quality 1/2'' Electric Drain Timer Valve With Brass Fitting 220v 24V 2 Way Water Valve Air Compressor Automatic Valve
-
GOGO High Quality 1/2'' Electric Drain Timer 24v Solenoid Valve Water Controller Valve Brass 2 Way Compressor Automatic Valve
Product Details
| Brand Name | 24v solenoid valve water controller, ATC GOGO AUTOMATIC | Place of Origin | Zhejiang, China | |
| Model Number | ETD series, GPX-25 | Structure | Control | |
| Power | Solenoid | Port Size | 1/2", G1" | |
| Temperature of Media | Medium Temperature |
Product Description

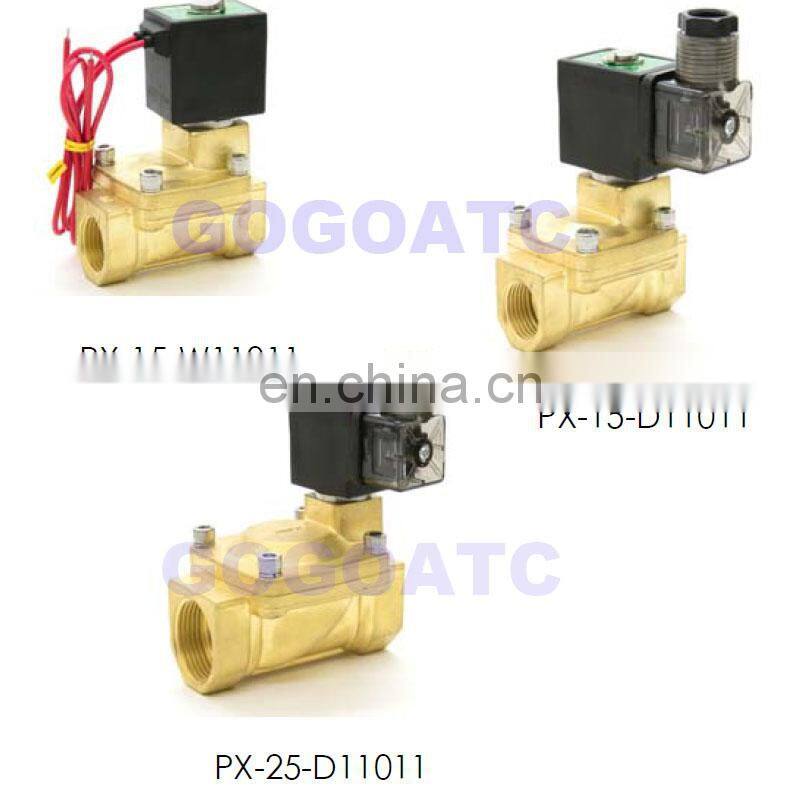

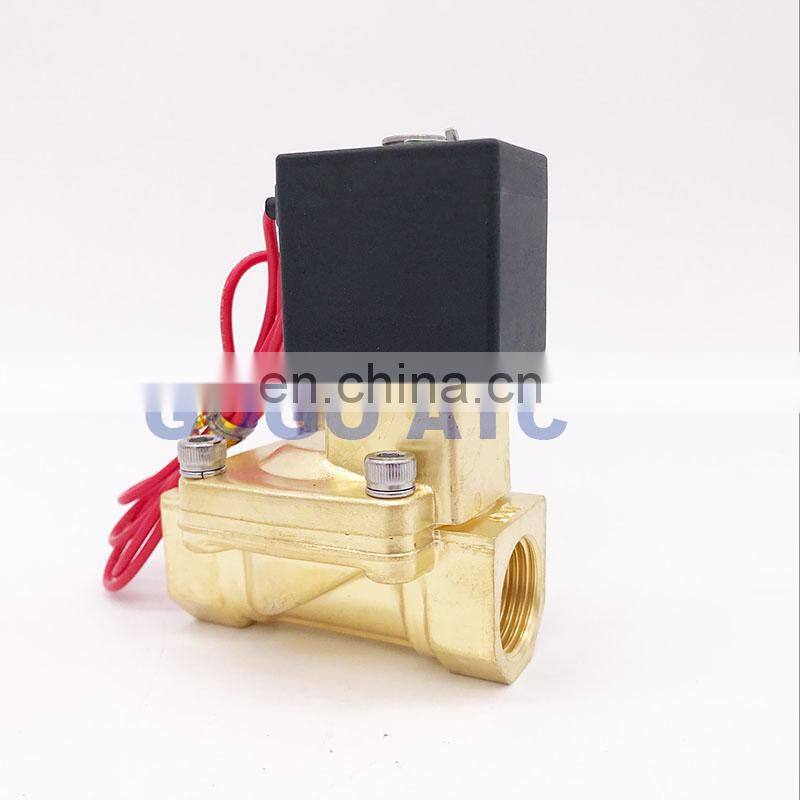

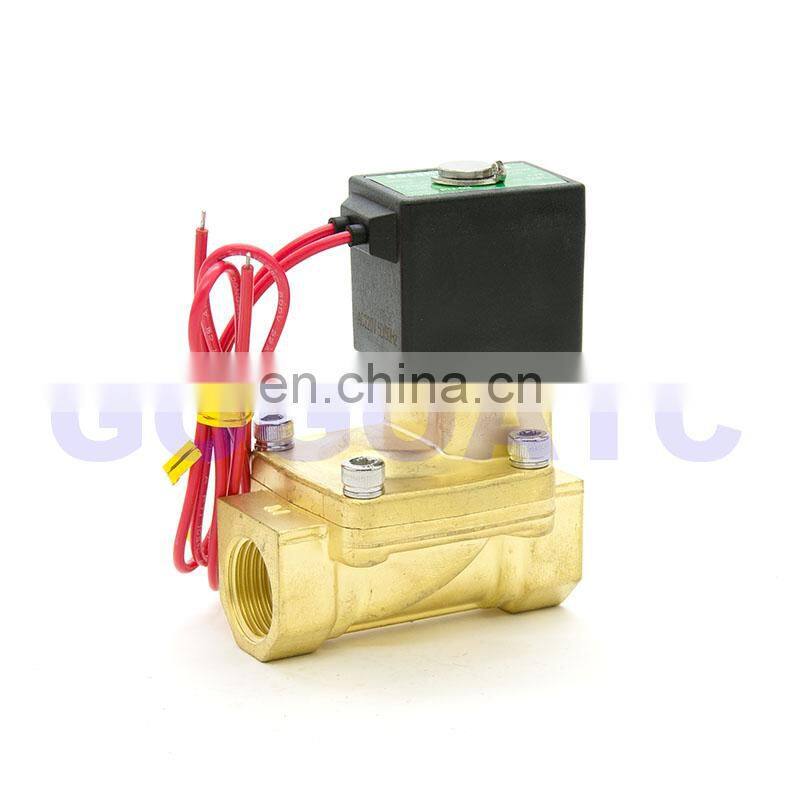

GOGO Bistable-Latching Two Way Pilot Diaphragm Solenoid Valve
Low energy consumption Brass for water Seals: NBR ,Pressure: 0.5~10bar
PX-25 1" BSP Orifice: 25mm
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Voltage: 6VDC,12V DC ,24V DC .

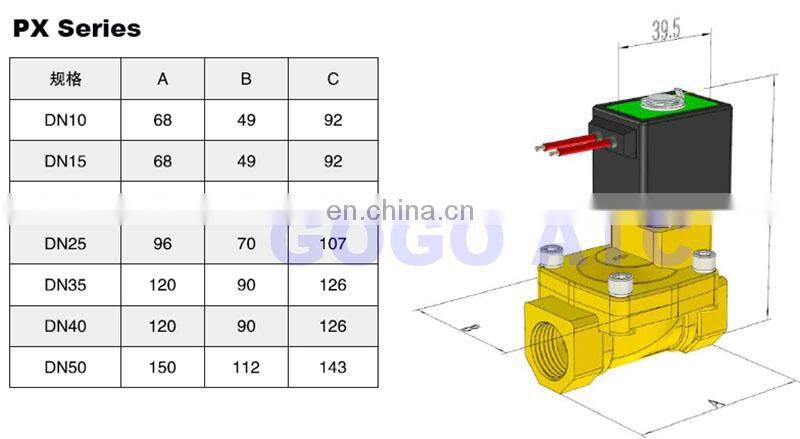

PX Series Pilot Diaphragm Slenoid valve

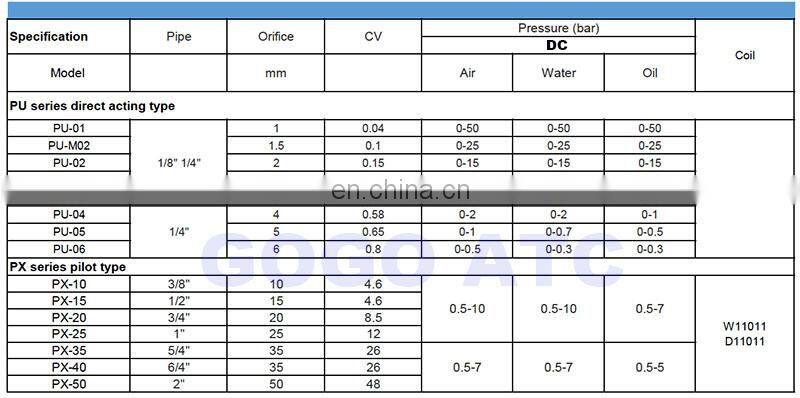

1.Specification
| Pattern: | Two-port two-position | |||
| Principium: | Pilot Diaphragm type | |||
| Control mode: | normally close | |||
| Valve body: | brass ,stainless steel | |||
| Diaphragm material: | NBR: ≤80°C ,EPDM≤120°C ,FKM: ≤150°C ,PTFE≤180°C | |||
| Working pressure: | 0.5~10bar | |||
| Max pressure: | 10bar | |||
| Voltage: | AC220V AC110V DC12V DC24V | |||
| Medium: | Air ,water ,hot water ,Liquid ,oil ect. | |||
| Application: | Medium pressure large-flow air water control system | |||
4.Packing
one pieces valve + a carton
Shipment
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
Founded in July,2014, Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality, potential and comprehensive strength. The company is located in the Zhejiang Ningbo Science &Technology zone, a unique place with beautiful scenery and gifts of nature.
Main products of our company : automatic parts, pneumatic solenoid valve, air water solenoid valve, hydraulic valves, gear piston or vane pumps, fittings connectors, temperature pressure transmitter, temperature controller, PLC, DCS parts, hardware stainless steel or brass or plastic parts , etc.
Since its foundation, the company keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers. " We are doing everything to offer our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
Skype: bagadandan
