Main Parameters of IMO Standard MBR Sewage Treatment Plant
(1)Usage:for treating sewage on board ,shipyard or dock
(2)“MBR” technology, have impact structure to match limited space of cabin
(3)International standard:IMO resolution MEPC227(64)
(4) Discharge standard:TSS≤35mg/L,BOD5≤25mg/L,COD≤125mg/L,Coliform≤ 100pc/100ml,PH: 6~8.5
(5)Electricity:AC380v/50HZ/3Φ AC440V/60HZ/3Φ (the electricity can be changed according to your requirement )
(6)Capacity:from 15~440 persons
(7)Certificate:EC,CCS,BV,LR MBR Sewage Treatment Plant
The different effluent standards
|
Discharge standard Convention |
IMO Old standard |
IMO New standard |
USCG |
Alaska |
TSS (mg/l) |
50 |
35 |
150 |
30 |
BOD5 (mg/l) |
50 |
25 |
NR |
30 |
COD (mg/l) |
NR |
125 |
NR |
NR |
Coliform (per 100ml) |
250 |
100 |
200 |
20 |
PH |
6~9 |
6~8.5 |
NR |
6~9 |
Residual chlorine (mg/l) |
NR |
NR |
10 |
|
Type approval Test days |
10 |
10 |
10 |
30 |

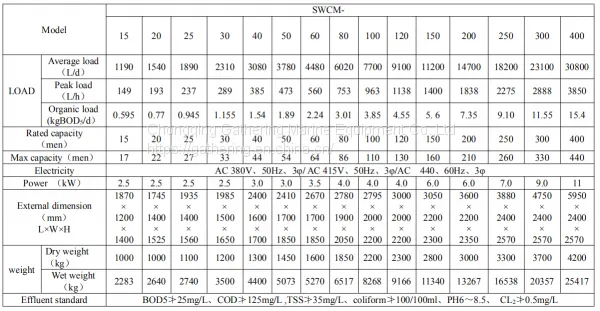

Technical Specification of IMO Sewage Treatment Plant
