External Fire fighting FIFI System
The Marine External Fire Fighting System (FIFI System) are used for AHTS, AHT, PSV, FPSO, FSO, Offshore Vessels, Platforms,
Maintenance Vessels, Supply Vessels, Fire Fighting Vessels, Escort Tugs, Tugs, etc. With CCS, BV, RINA, ABS, DNV and other Class Certificates.
Introductions

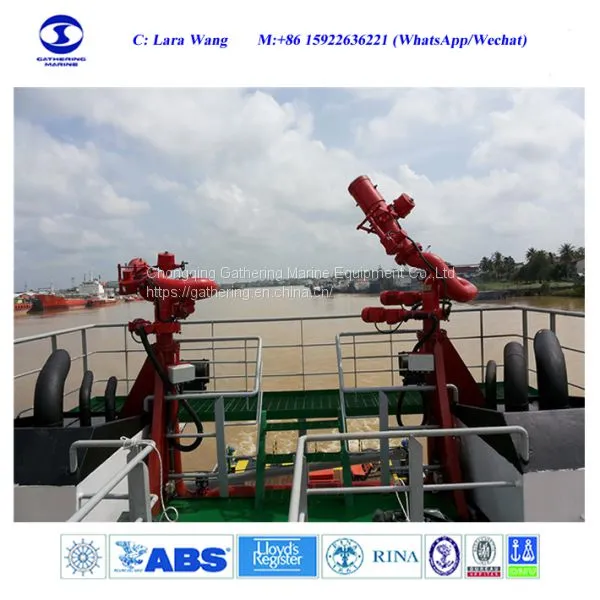

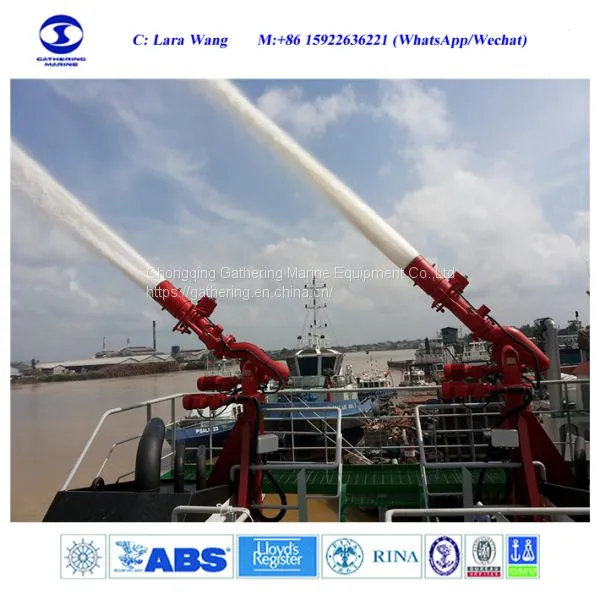

1. Manual Fire Fighting Monitors Approval: CCS,BV,ABS etc
2. Automatic Firefighting Monitor material: stainless steel 316 or 304
3. Capacity of fire monitor/fire pump: 160m3/h, 180m3/h,360m3/h ,600m3/h, 900m3/h, 1200m3/h, 3600m3/h,etc
4. Ship firefighting equipment Type: Supply external Fire Fighting Systems, FiFi1/4, FiFi1/2, FiFi 1, FiFi 2, etc
5. MARINE Fire Fighting System Engine: Diesel Engine or the demands you need
6. Vessel Fire fighting equipment Include:fire pump,fire monitor,with Cummins Engine
7. Fire fighting equipment color:red
Technical Parameters
Water Spray System is designed according to customer’s requirement
Suitable Medium: Seawater, Freshwater, AFFF, Fiuor-foam

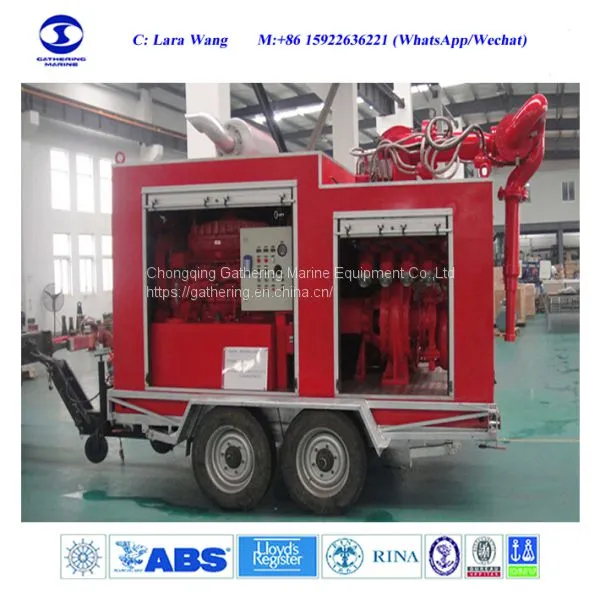

Containerized FIFI System Unit
Model |
MK200 |
MK330 |
MK500 |
Capacity(m3/h) |
600 |
1200 |
1800 |
Pressure (Bar) |
12 |
12 |
12 |
Throw Length (m) |
120 |
150 |
170 |
Throw Height (m) |
50 |
65 |
75 |
Outlet |
8*DN80 2*DN150 |
10*DN80 1*DN150 1*DN200 |
8*DN100 2*DN200 |
AFFF Inlet |
1*DN50 |
1*DN80 |
1*DN100 |
Medium |
Water /AFFF |
Water /AFFF |
Water /AFFF |
Pump Suction Inlet |
3*DN150 |
5*DN150 |
5*DN200 |
Suction Height (m) |
3.5-5 |
3.5-5 |
3.5-5 |
Weight (Ton) |
6 |
8 |
11 |
