Help Center1X 0.5X 0.35X Microscope Camera Adapters C-mount Lens Photographic CCD Camera Adapter for Zeiss Trinocular Microscope
Related Products
-
1X 0.5X 0.35X Microscope Adapter Trinocular Camera CCD Interface Adaptor for Leica Stereo Microscope MS5 MZ6 M125 M205 M165 S6D S9DUS$ 150 - 180MOQ: 1 Piece -
Canon EOS Nikon SLR Digital Camera M42 to C Mount Adapter Lens Photograph CCD to M42 Microscope Camera AdaptersUS$ 80 - 90MOQ: 1 Piece
-
Microscope Adapter Ring C-mount to 23.2mm to 30mm 30.5mm 1.25 Inch to C Mount Adapters for Microscope CCD Camera Reduction LensUS$ 0.9 - 3.9MOQ: 1 Piece
-
M25 M26 M27 M32 to RMS Thread Microscope Objective Lens Adapter Ring for Olympus Zeiss Mitutoyo MicroscopeUS$ 1.9 - 3.9MOQ: 1 Piece
-
RMS Thread Objective Lens Extension Ring Parfocal Length Extenders Adapter for Microscope ObjectiveUS$ 1.9 - 3.9MOQ: 1 Piece
Features

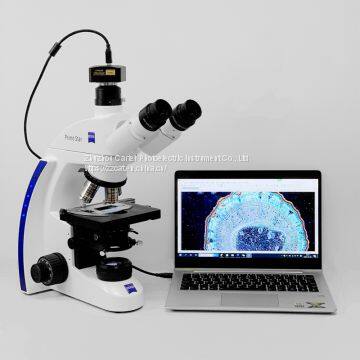

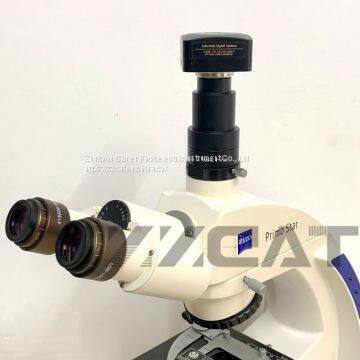

(1).Convert the Zeiss trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch)outer diameter for the insertion end to phototube) to traditional C Mount type (25.4 mm or 1 inch diameter with 32 threads per inch); (2).With different built-in reduction lens (1X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips); (3).Can be installed in Zeiss UIS trinocular tube such as:Zeiss PrimoStar series and Zeiss Primo vert series (4).Build of material: anodized aluminum; (5).Telecentric optics with low light deficiency; (6).Parfocal with different microscope objective lenses; (7).Diffraction limited MTF; (8).Aperture totally coupled with UIS microscope objective’s exit pupil

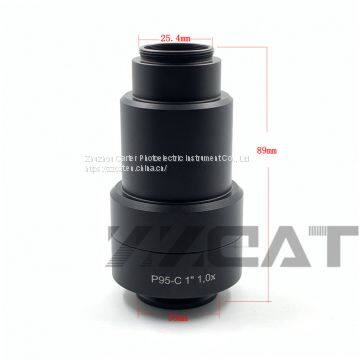

1.Product Description for 1X Adapter
(1).Magnification:1X (2).Sensor Size:1'' , 2/3'' (3).Mount Type:C-mount (4).Material:Metal (5).Please Note:There is no lens in 1X adapter. (6).Package: 1 * Adapter only (others are not included)
2.Product Description for 0.5X Adapter
(1).Magnification:0.5X (2).Sensor Size:1/8'',1/2'',1/2.5'' (3).Mount Type:C-mount (4).Material:Metal and Optical Glass (5).Package: 1 * Adapter only (others are not included)
3.Product Description for 0.35X Adapter
(1).Magnification:0.35X (2).Sensor Size:1/3'',1/4'',1/5'' (3).Mount Type:C-mount (4).Material:Metal and Optical Glass (5).Package: 1 * Adapter only (others are not included)
Our company is a professional C-mount adapter manufacturer. We also provide adapter for Nikon, Canon, Zeiss, Leica microscope and other SLR camera adapter ring. If you are interested in more products and details, please contact us. thank you
