Microscope Adapter Ring C-mount to 23.2mm to 30mm 30.5mm 1.25 Inch to C mount Adapters for Microscope CCD Camera Reduction Lens
(1).Material: Metal (2).Package Included: 1 * Adapter Ring only (Others accessories are not included)
CS to C
(1).Application: to increase the distance between the lens and image sensor. (2).The CS-C adapter ring is an adapter which is used to increase the distance between the lens and the image sensor. In addition to the focal length, there is a perfect distance between the lens and the image sensor. The C-mount distance from the datum to the focus is 17.562mm, but the CS-mount distance from the datum to the focus is 12.5mm. The distance gap between CS mount and C-mount is about 5mm. If you need to install CS mount lens to C-mount camera, and you want to see a great and perfect image, then you need a CS-C adapter ring
1.25 Inch to C
(1).Top Outside Mount Thread: C/CS mount (25.4 mm) (2).Bottom Inner Thread: M28 x 0.6mm (3.)Bottom Outer Diameter: 1.25 inches (31.7 mm)

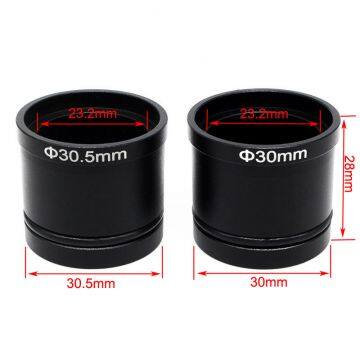

23.2mm to 30mm 30.5mm
(1).Type: 23.2mm to 30mm 23.2mm to 30.5mm (2).The inner diameter of one side is 23.2 mm, the outer diameter of the other side is 30mm or 30.5 mm (3).Suitable Microscope: biological microscope, stereo microscope, metallographic microscope

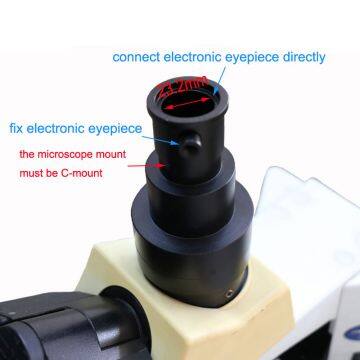

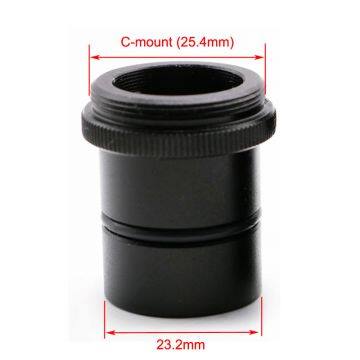

23.2mm to C
(1).One side is C-Mount thread, the outer diameter of the other side is 23.2 mm (2).Suit Microscope: biological microscope
C to 23.2mm
(1).Inner Diameter: 23.2mm (2).Bottom Diameter: Standard C-mount
We are Microscope Adapter Ring manufacturer directly. We supply different kinds of Adapter ring, such as RMS, C-mount, 23.2mm 30mm 30.5mm 1.25inch M25 M26 M27 M30 M31 M32 M42 SLR camera adapter,etc. More details, please contact us. thank you.
