Product Introduction
The KQ11F (2P) threaded ball valve is a valve that is 90 degrees perpendicular to the channel. The ball rotates around the center line of the valve body to achieve opening and closing. The ball valve is mainly used in the pipeline to cut off, distribute and change the flow direction of the medium.

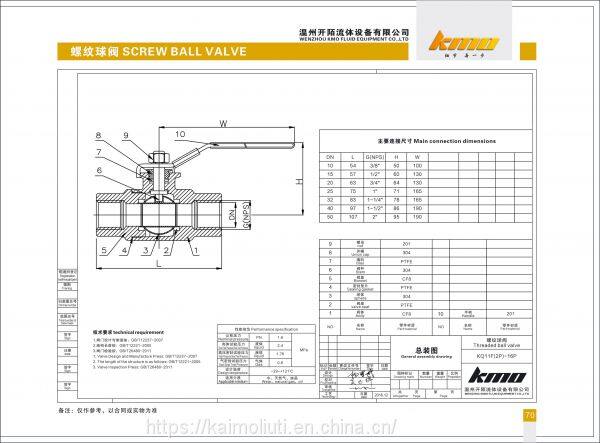

Body Material: CF8+304(more details please check the follow drawing)
Surface material: CF8+304
Applicable medium: water, oil, natural gas
Diameter: DN10-50mm
Nominal Pressure: 1.0-6.4MPa
Design temperature: -29～+121℃
Connection type: Screw thread
Design Standard: GB/T12237-2007
Structure Standard: GB/T12221-2005
Features of product
The fluid resistance is small, and the resistance coefficient is equal to that of the pipe section of the same length.
Simple structure, small size and light weight.
It is tight and reliable. The sealing surface material of ball valve is widely used with plastic and has good sealing performance. It has also been widely used in vacuum system.
It is easy to operate and quick to open and close. It only needs to rotate 90° from fully open to fully closed, which is convenient for remote control.
The maintenance is convenient, the structure of the ball valve is simple, the sealing ring is generally movable, and the disassembly and replacement are more convenient.
When fully open or fully closed, the sealing surfaces of the ball and the valve seat are isolated from the medium. When the medium passes through, it will not cause corrosion of the valve sealing surface.
FAQ:
Q: Are you manufacture or trading company?
A: We are manufacture and our factory is in in Oubei Town, Yongjia County, Wenzhou City, Zhejiang Province.
Q: What is your products' MOQ?
A: 10pcs.
Q: Can you provide the sample for free?
A: Yes, we can provide the sample for free, but you need bear the delivery cost.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.
Q: If the product can be customized?
A: Yes, just let me know if you have any requirements, like applicable medium and size, etc.
