Product Introduction

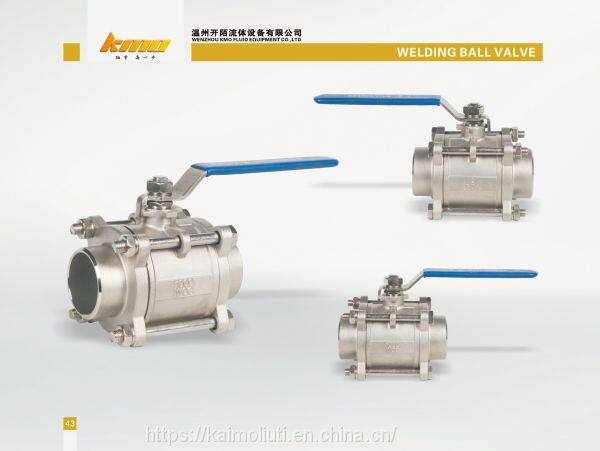

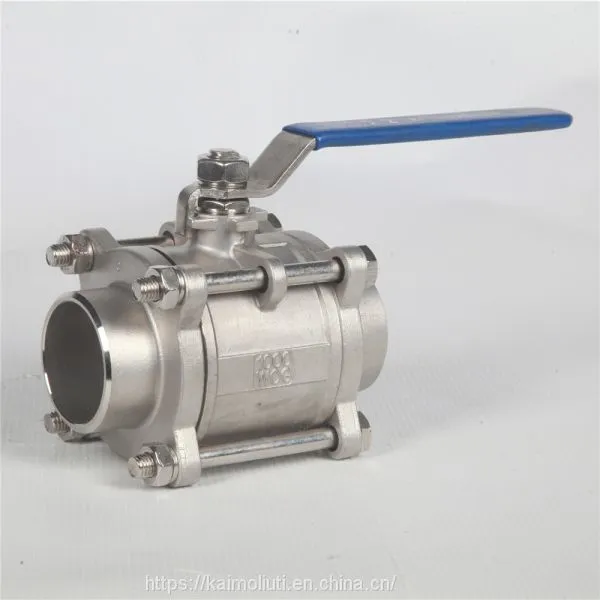

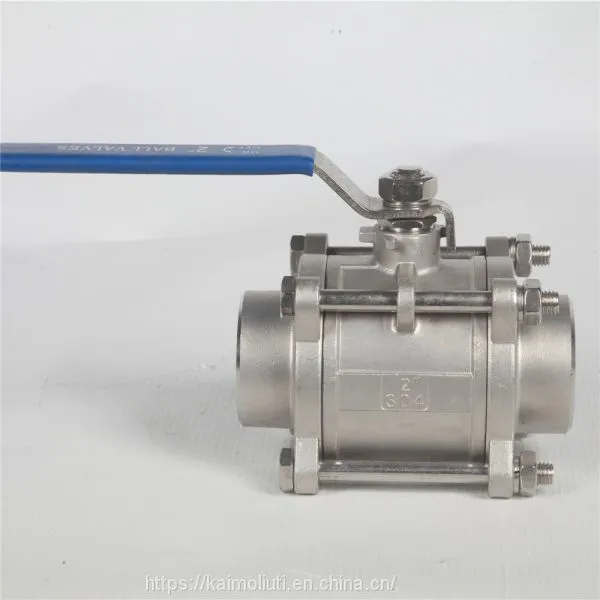

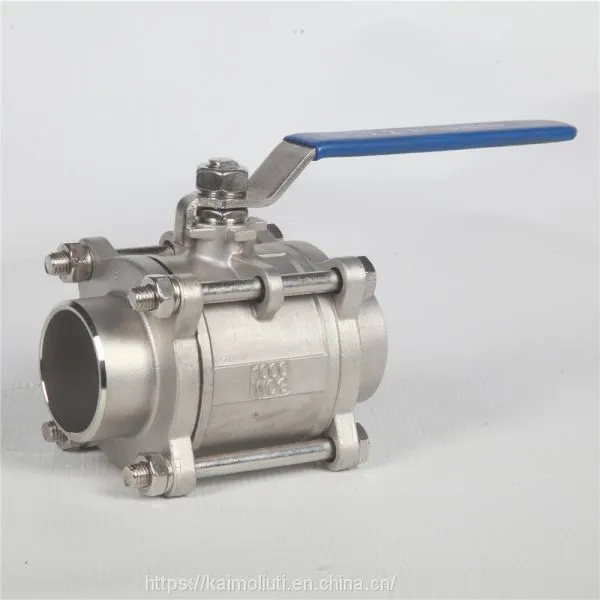

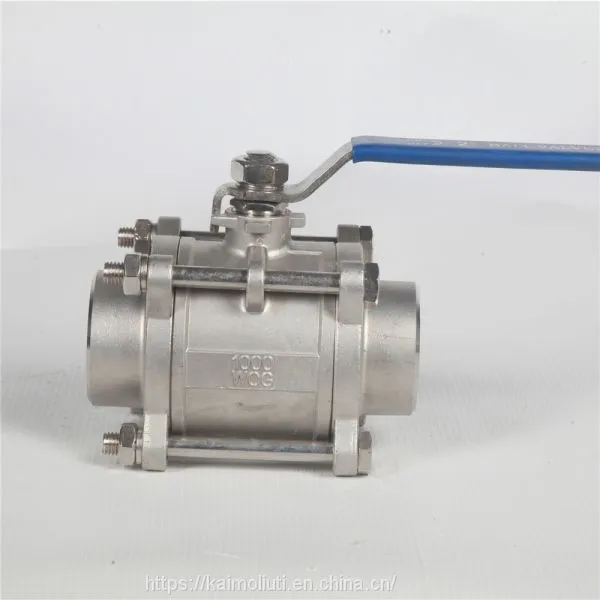

The KQ61F (3P) welded ball valve is a kind of ball valve that is 90 degrees perpendicular to the channel. The ball rotates around the center line of the valve body to open and close. The ball valve is mainly used in the pipeline to cut off, distribute and change the flow direction of the medium.

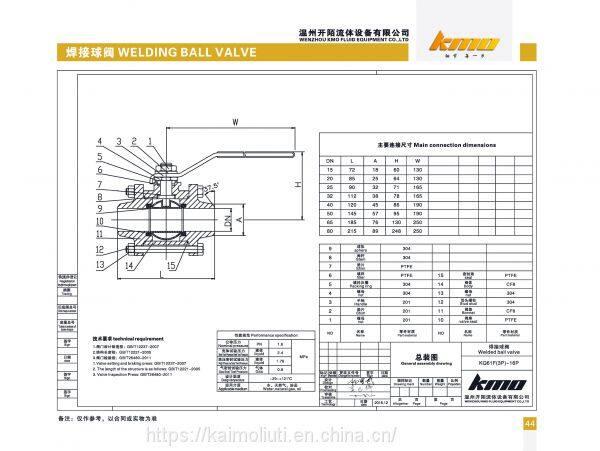

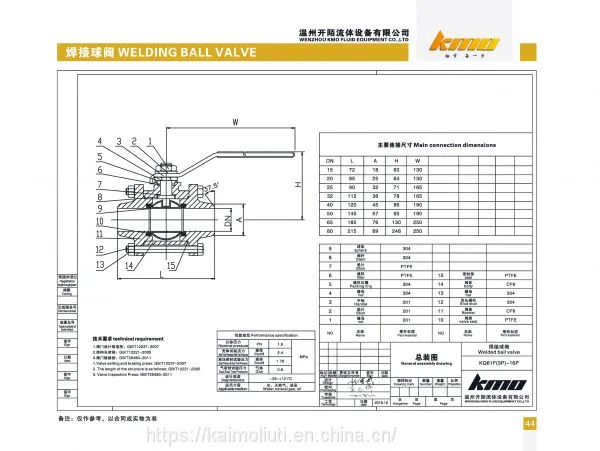

Body Material: stainless steel (more details please check the follow drawing)
Surface material: body: stainless steel
Applicable medium: water, oil, natural gas
Diameter: DN15-100mm
Nominal Pressure: 1.0-6.4MPa
Design temperature:-29ºC~ +121ºC
Connection type: Welding
Design Standard: GB/T12237-2007
Structure&Length Standard: GB/T12221-2005
Flange Standard: GB /JB / HG / DIN
Threaded Ball Valve Has the Following Advantages
The fluid resistance is small, and the resistance coefficient is equal to that of the pipe section of the same length.
Simple structure, small size and light weight.
It is tight and reliable. The sealing surface material of ball valve is usually made of plastic, which makes the product having good sealing performance. It is also widely used in vacuum system.
It is easy to operate and quick to open and close. It only needs to rotate 90° from fully open to fully closed to facilitate remote control.
The maintenance is convenient, the structure of the ball valve is simple, the sealing ring is generally movable, which makes the disassembly and replacement more conveniently.
FAQ:
Q: Are you manufacture or trading company?
A: We are manufacture and our factory is in in Oubei Town, Yongjia County, Wenzhou City, Zhejiang Province.
Q: What is your products' MOQ?
A: 10pcs.
Q: Can you provide the sample for free?
A: Yes, we can provide the sample for free, but you need bear the delivery cost.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.
Q: If the product can be customized?
A: Yes, just let me know if you have any requirements, like applicable medium and size, etc.
