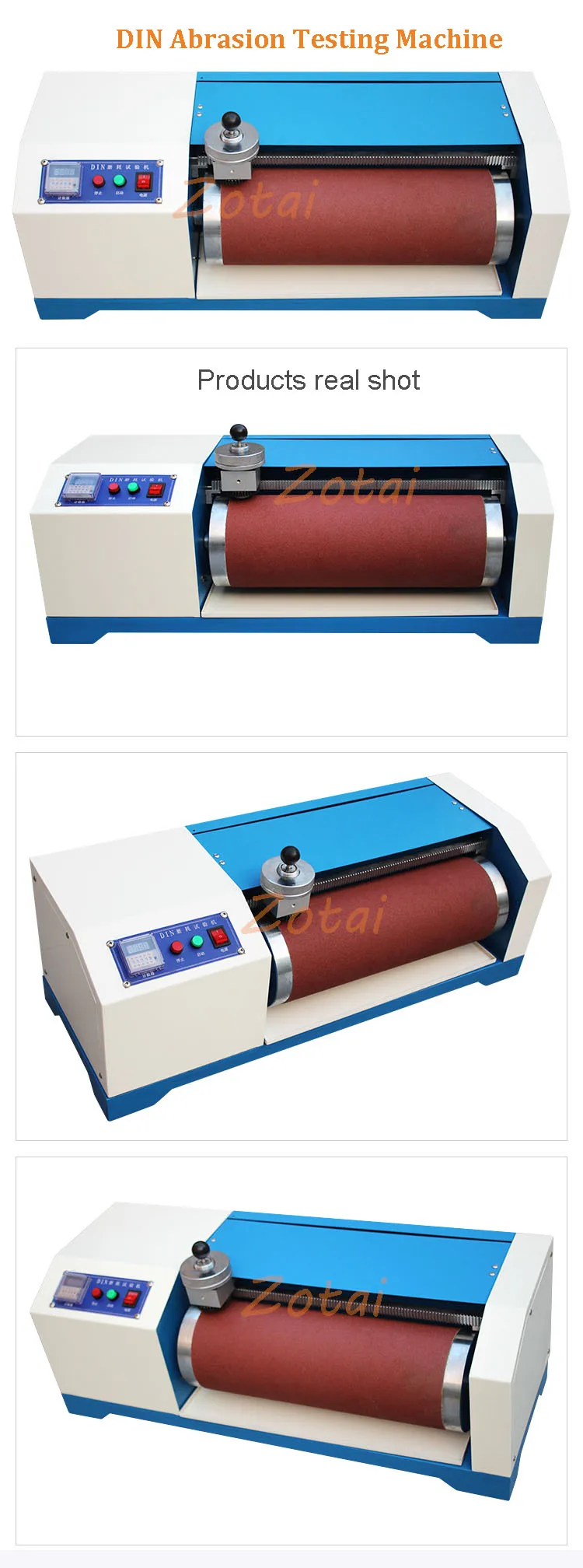

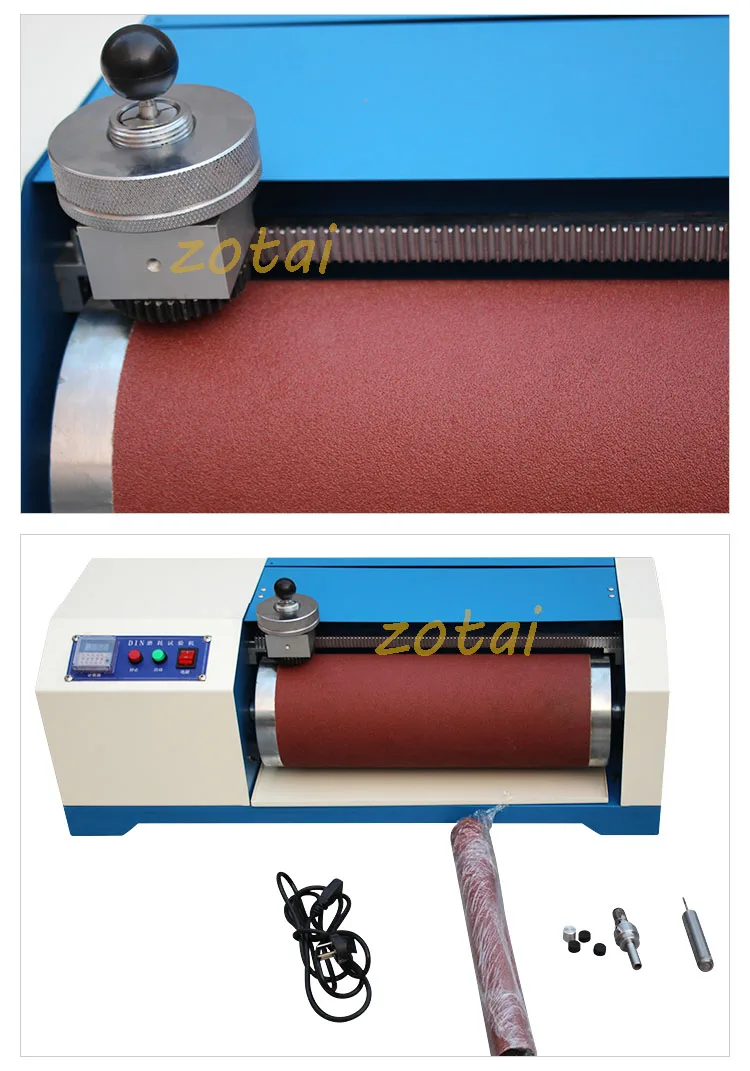

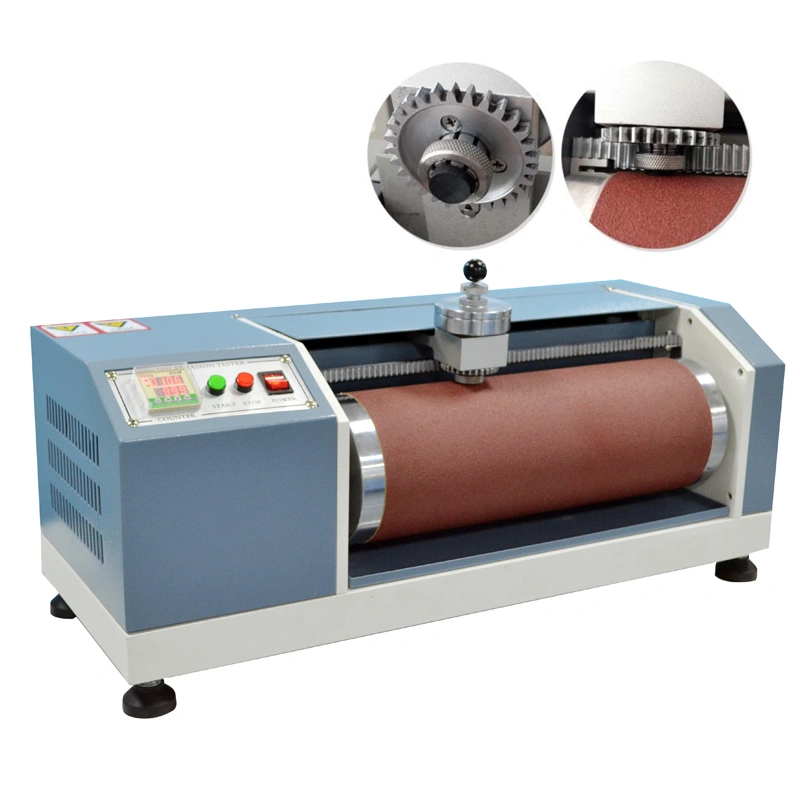

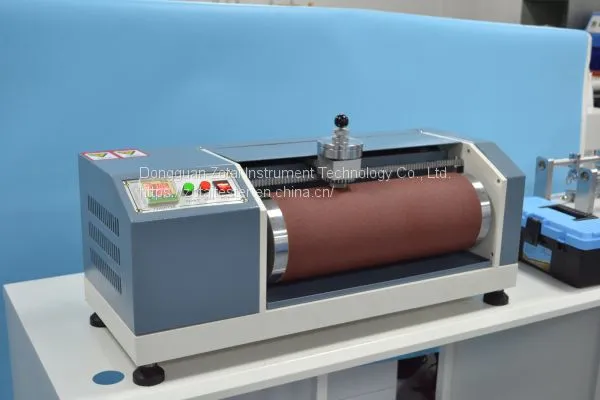

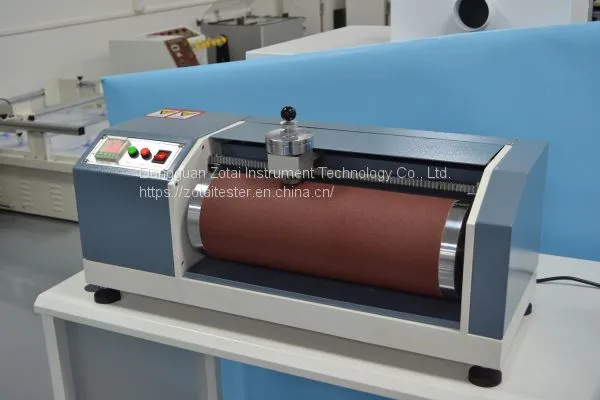

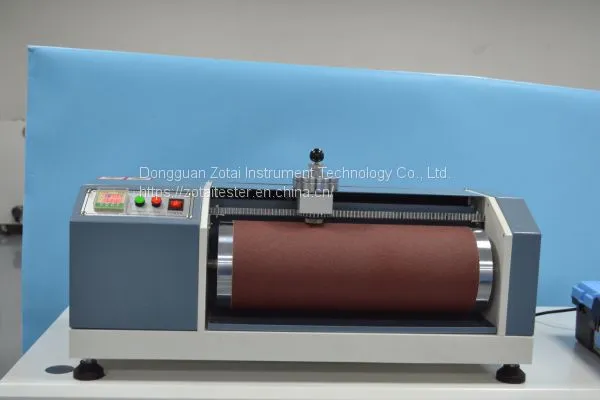

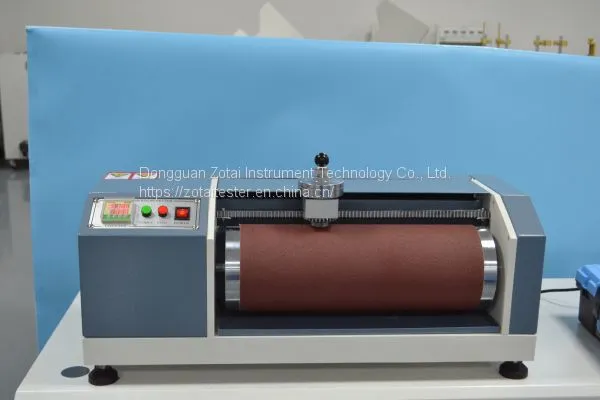

Universal DIN Rubber Abrasion Friction Tester, DIN Wear Resistance Test Machine
Applicable industry:
DIN Abrasion Wear Resistance Tester applied to test leather performance in shoes, clothing,
luggage handbag industry, research laboratories, commodity inspection, arbitration and technical
supervision departments.
Technical parameters:
dler |
150mm |
|
Abrasion stroke |
40 ± 0.2M |
|
Horizontal displacement |
4.2mm / rotate |
|
Stroke |
20m/40m presetting |
|
Grips lateral displacement |
4.2 ± 0.04rpm |
|
Idler wheel speed |
40 ± 1cpm |
|
Measuring way |
Auto/Manual presetting |
|
load |
2.5 ± 0.1N,5 ± 0.1N,10 ± 0.1N |
|
Specimen size |
dia 16mm, thickness at least 6mm |
|
Emery cloth Specification: |
60 #, seam is less than 2mm. |
|
Sand paper |
60 Germany |
|
Dimension |
95*66*31cm |
|
Power |
220v 50hz |
|
Machine Specifications:
| Test-arm weight | 250 ± 5 (g) |
| Testing Load | 2.5N, 7.5N |
| Diameter abrasive wheel | dia 150 ± 450L (mm) |
| emery cloth | 60 #, 425 ±473 ±1.5 (mm) |
| Wheel Speed | 40 ± 1RPM |
| Shift screw | 6 teeth / inch |
| Limit rotation | 85 rotate |
| Set rotation | 84 rotate (about 40M) |
| Return form | Electric automatic reset |
| Drive Power | 40W; 1 / 30 |
| Power | 220V 50HZ |
| Machine Dimensions | 600 ±330 ±420 (mm) |
| Machine Weight | 75kg |
Corresponding standard:
GB/T9867, GB/T 20991, GB/T 26703, EN ISO 20344, ISO 4649, DIN 53516, BS 903:A9, SATRA TM147

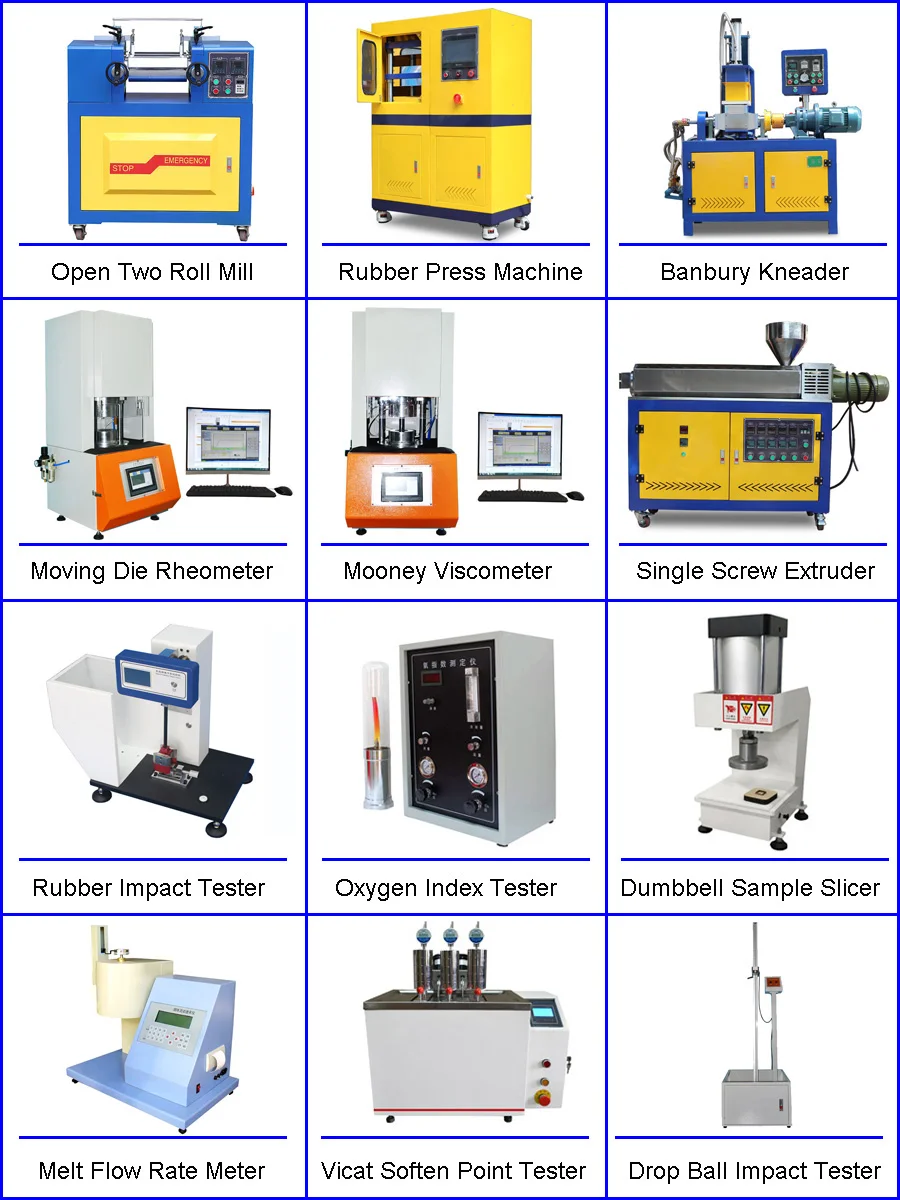

We can prodcue all kinds of rubber test machines:
1. Zotai Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.
2. Onsite Service:
A. Device installation;
B. Equipment Operation Test Technology training;
C. Equipment Calibration;
D. Daily maintenance and maintenance of equipment
3. Free technical training for visiting factories
4. 24-hour Online contact
5. Free software upgrades
6. Free information:
A.Product Instruction;
B.Product operation instruction/video;
C.Experiment Test (test application, test report)
7. Device Problem Handling:
A. Social media 24 hours online communication;
B. Mail Seamless Docking;
C. Video Conferencing;
D. Artificial free door-to-door service

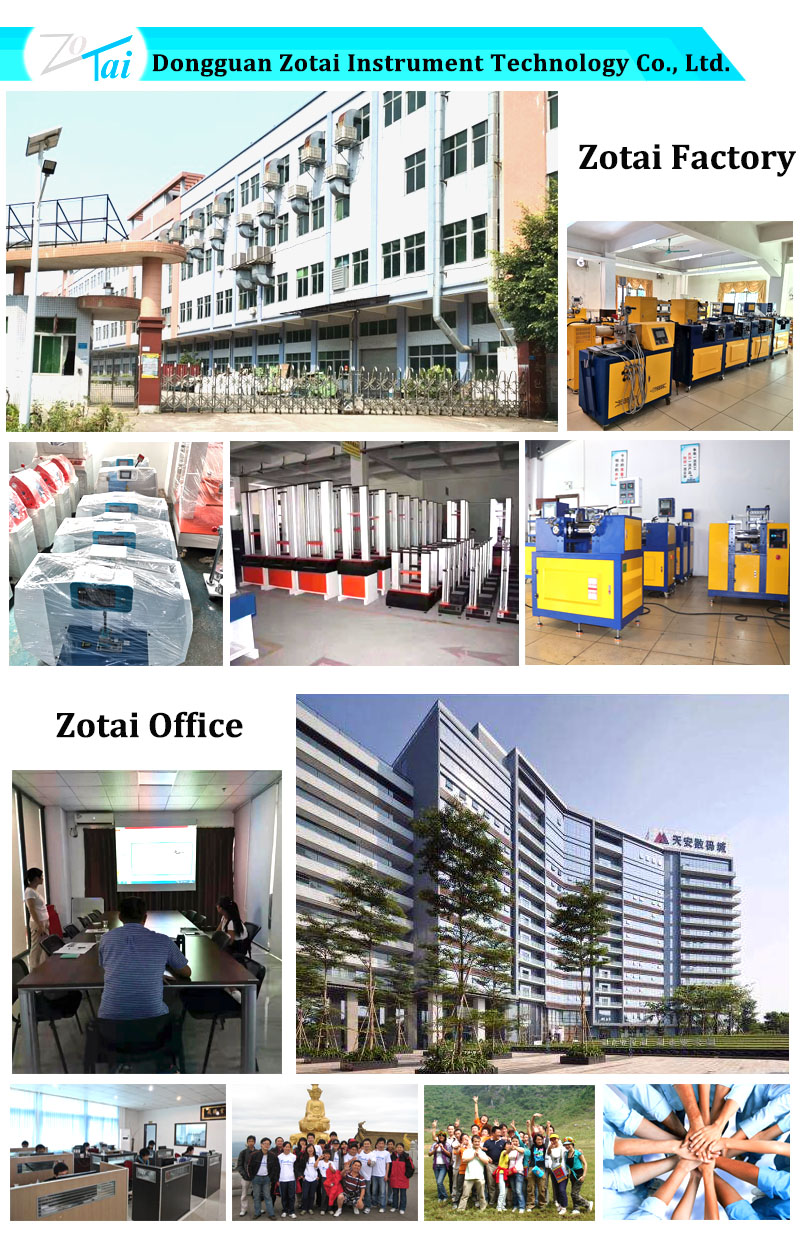

Dongguan Zotai Instrument Technology Co., Ltd. specializes in rubber and plastic testing machine, metal detector, textile testing machine and shoe testing machine for more than 12 years. With advanced technology, excellent product quality and best customer service, the products are exported to more than 100 countries and regions have won praises from customers around the world.
We have a professional design team that can customize individual products according to customer requirements.
If you have any questions or concerns, the sales and after-sales service department will respond to you within 24 hours.
1.Are your company a trading one or a factory?
Factory + trade (integration), began to engage in the R & D and production of test instruments in 2011 and established the foreign trade department in 2013. OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
