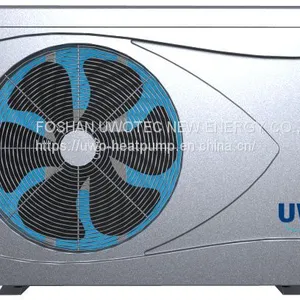

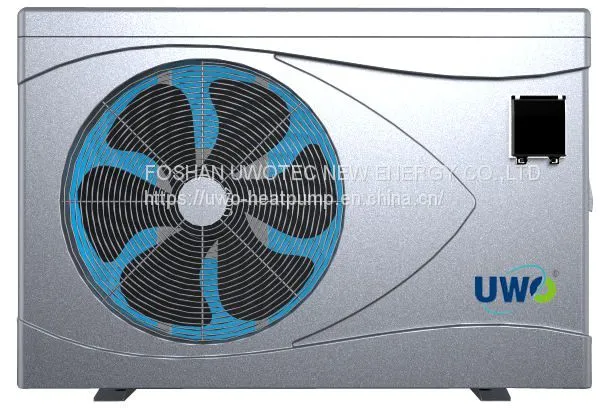

Pool Heat Pump ABS Plastic 5,6kW

US$ 430 - 450 MOQ: 1 Set

Key Specifications

Place of Origin:

China

Model Number:

UHP056CSP32

Certification:

CE, ROHS

Foshan Uwotec New Energy Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

FOSHAN

Delivery Detail:

30 days

Place of Origin China

Model Number UHP056CSP32

Certification CE, ROHS

Type Air Source Heat Pump

Use Swimming Pool Heater

Installation Freestanding

Housing Material Plastic

Storage / Tankless Instant / Tankless

Descripition
1.Swimming pool heat pump, ABS Plastic Cabinet, Heating&Cooling with reversible circle defrosting, CE standard.

2.220~240V / 50Hz / 1Ph., GMCC compressor. Fixed speed. With LCD display controlling panel, and installation suits.
Specification

Factory Model No.		UHP033CS32	UHP056CS32	UHP072CS32	UHP094CS32	UHP120CS32	UHP140CS32	UHP170CS32

Heating capacity	kW	3.34	5.56	7.24	9.43	11.7	13.6	16.8
Power consumption	kW	0.68	1.09	1.45	1.85	2.3	2.72	3.36
C.O.P.	W/W	5.0	5.0	5.0	5.1	5.1	5.0	5.0

Heating capacity	kW	2.32	3.67	4.73	6.65	8.04	9.27	11.45
Power consumption	kW	0.58	0.90	1.15	1.58	1.91	2.21	2.79
C.O.P.	W/W	4.0	4.1	4.1	4.2	4.2	4.2	4.1

Compressor type		Rotary type with R32 refrigerant, GMCC or the similar class brand.
Voltage		220-240V~50Hz/1PH		220-240V~50Hz/1PH
Rated Current	A	3.0	4.8	8.1	9.9	11.2	14.0	14.5
Max. Current	A	5.5	7	10	14	17	19	24
Advised pool volume (covered)	m³	0-10	10-16	15-26	25-32	30-60	40-68	55-80
Advised water flux	m³/h	2	2.5-3.2	2.5-3.7	2.6-5.1	3.5-7.1	4-7.9	4.6-9.3
Water Pressure Drop	KPa	12	12	12	12	15	15	16
Heat exchanger		Sprial Titanium Tube in PVC shell
Water connection	mm	50	50	50	50	50	50	50
No. of Fan		1	1	1	1	1	1	1
Air side heat exchanging type	Side discharge
Net Weight	kg	34	38	48	53	63	75	79
Gross Weight	kg	36	40	51	57	67	79	88
Net Dimension (WxDxH)	mm	759300510	759300510	942363550	942363550	1049413702	1049413702	1049413702
