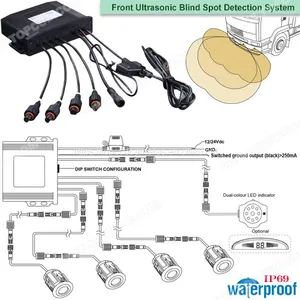

IP69 Frontscan Ultrasonic Detection System - 4 SENSORS
Model No.: TOP-FTWB3-4-LBP
• 4 sensor system fitted to front of vehicle. Particularly relevant for front blind spot on high cabs where low objects or pedestrians can be hidden.
• 2.0/1.0m detection range - outer sensors can be reduced to 0.6m (selectable via dip switches)
• 2 levels of sensitivity (selectable via dip switch)
• Gradual visual and audible distance warning display
• Self-diagnostic function
• Improved anti-interference function
• All weather design

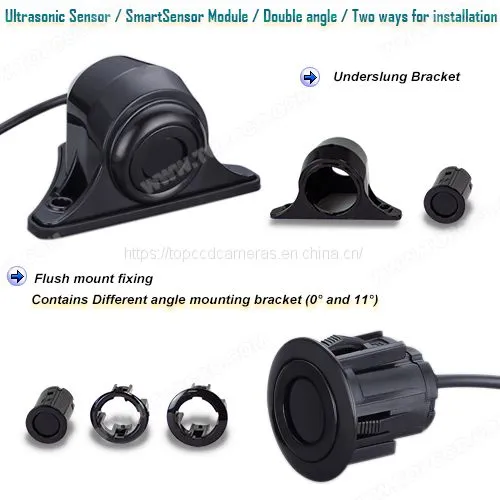

• 4pcs ultrasonic waterproof sensors with SmartSensor module
• Underslung and flush-mount fixings included,Different angle mounting bracket (0° and 11°)
• 4*2.5m sensor cables
• In Cab warning buzzer with 2.5M cable.(Buzzer with audible distance warning, LED & volume control)
• Industrial cables and connectors, Microchip MCU.
• Voltage rating: 12-24Vdc
• Mechanical vibration: 5G
• Mechanical shock: 10G
• Operating temperature: -30 to +80°C
• Waterproof control box to IP69K
• Sensor & connector protected to IP68
• 3 year warranty
★ Optional Extra: Low Speed Trigger Module -System activated below designated speed
