Home > Electrical & Electronics > Sensor > Other Sensors > TURCK FKFD 4.4-2 Actuator and Sensor Receptacle – Rear Mount

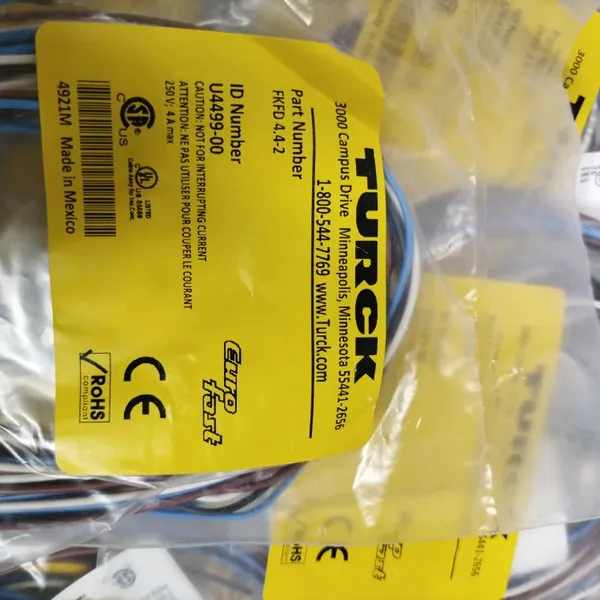

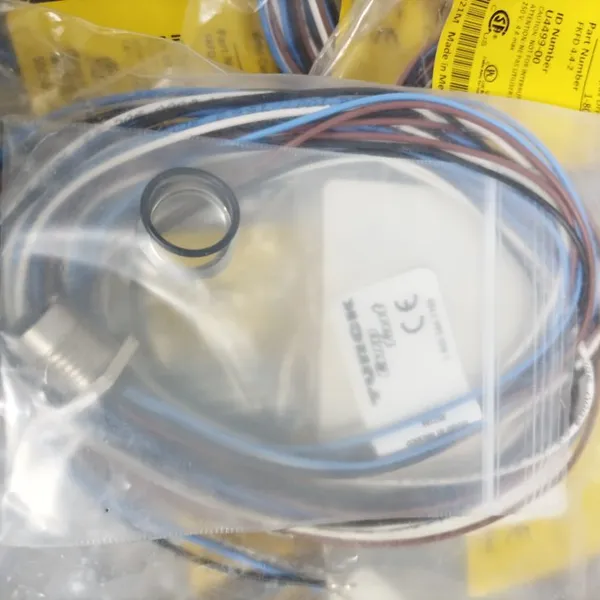

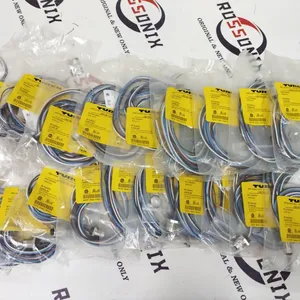

TURCK FKFD 4.4-2 Actuator and Sensor Receptacle – Rear Mount
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand:
TURCK
Model:
FKFD 4.4-2
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Eaton ETR4-69-A (XTTR6A100H69B) Time RelayNegotiableMOQ: 1 Piece -
NSK 20TAC47CSUHPN7C Thrust Ball Bearing, Angular Contact For Ball Screw SupportNegotiableMOQ: 1 Piece
-
PANASONIC AC SERVO MOTOR MSMA012A1NNegotiableMOQ: 1 Piece
-
INA RWU45-E-G2-V3 Linear Guide Bearing Carriage BlockNegotiableMOQ: 1 Piece
-
Siemens 3RA6120-1BP32 SIRIUS Compact Load Feeder DOL StarterNegotiableMOQ: 1 Piece
Brand
TURCK
Model
FKFD 4.4-2
Type FKFD 4.4-2
ID U4499-00
Connector A Female, M12 × 1, A-code
Design specification Acc. to IEC 61076-2-101
Number of contacts 4
Contacts Bronze, CuSn, Gold-plated
Contact carriers Plastic, TPU, Black
Connector seal O-ring, Plastic, FKM/FPM
Housing material/finish Brass, CuZn, Nickel-plated
Tightening torque (range) 0.4 … 1.8 Nm
(note max. torque of mating connector!)
Mounting orientation Rear mount
Panel seal O-ring, NBR
Mounting thread PG9
Locknut Brass, CuZn, Nickel-plated
Receptacle mounting torque 2.5…6.8 Nm
Mechanical life > 100 Mating cycles
Pollution degree 3
Protection class (When coupled) IP68
NEMA: 1, 3, 4, 6P
Total number of conductors 4
Length (L) 2 m
Conductor material TC (tinned copper)
Conductor insulation material PVC
