Automatic Busduct Inspection Machine

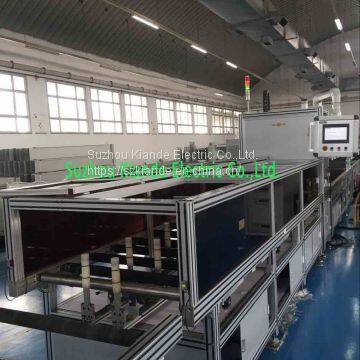

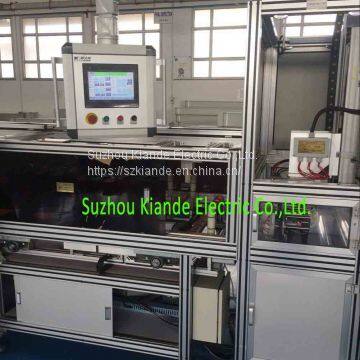

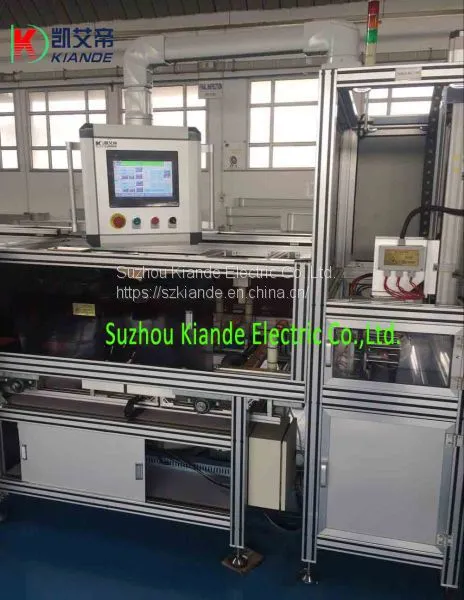

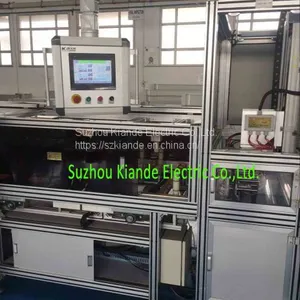

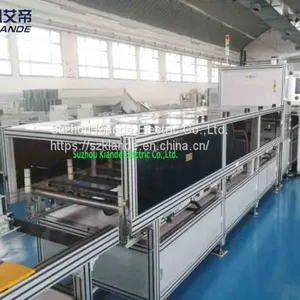

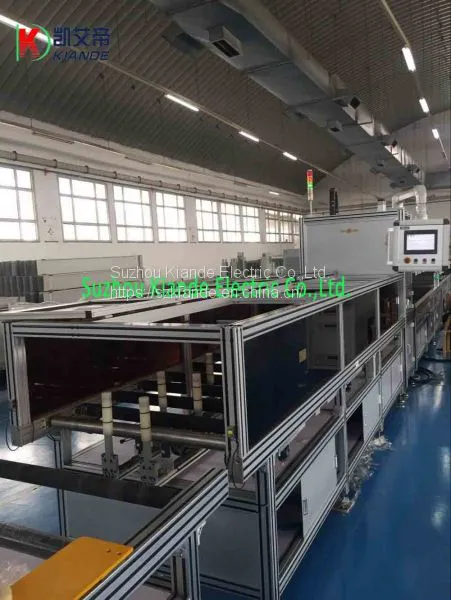

Automatic inspection machine is composed of three parts, feeding positioning station, inspection station and discharge station. When the busbar enters the feeding position, the control system will select the right testing fixture to start testing from the information identified by bar code or previous assembly line. Three tests will be performed including HV withstanding test, insulation resistance test and grounding test. After test is finished, testing report will be generated. This report can be saved, printed on site and recorded remotely. Its format can be set according to customer’s requirements. Automatic inspection machine is mainly used for batch inspecting on the straight busbar. Elbow busbar type shall be tested on manual inspection machine.
Equipment data on automatic busbar inspection line:
序号No. |
参数 Parameters |
设备型号 Model |
KD-JCX/NC-E/H-6 |
母线高度Busbar Height |
100mm~650mm |
母线长度Busbar Length |
1200mm~6000mm |
检测母线类型 Busbar Type |
直线端母线 Straight length type |
定位型式 Position Type |
单边或居中Unilateral / Middle |
|
生产效率 Working Efficiency |
2分钟/节(时间根据测试要求来定) 2 min/piece(testing time is adjustable.) |
伺服数量Servo Nos |
2轴（Z轴、X轴）2 axis( Z axis/X axis) |
|
视觉系统 Vision System |
相位误差进行判断（可选） Phase error judgment( optional) |
|
打印系统 Printing System |
条码打印或报告打印（可选） Bar code printing/ Report printing( optional) |
|
耐压检测 High Voltage Withstanding Test |
0~5000V |
绝缘检测 Insulation Test |
1~1000V |
接地检测 Grounding Test |
0~25A |
|
电源 Power |
380~415VAC 50~60Hz 5kW |
设备外形尺寸Equipment Dimension |
L12000mm*W1200mm*H1900mm |
