Home > Products > Busbar Fabrication Machine > Mylar film forming machine, Polyester insulation film folding machine
Mylar film forming machine, Polyester insulation film folding machine
- 50 Set / Sets per Month
- Shanghai
- T/T L/C
- 40 days
Product Details
Brand Name: | Kiande | Place of Origin: | China | Model Number: | KDEQ-E-005 |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description

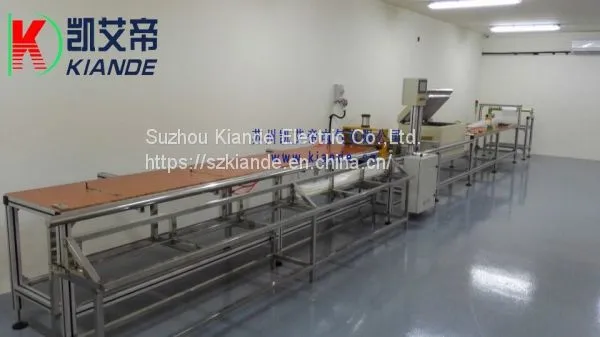

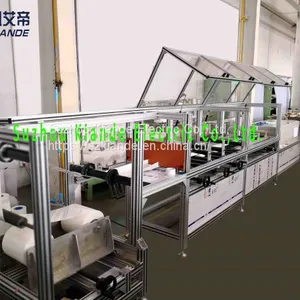

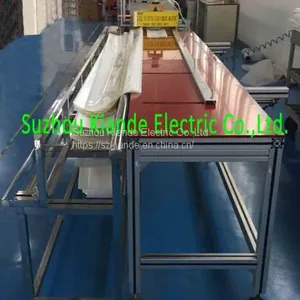

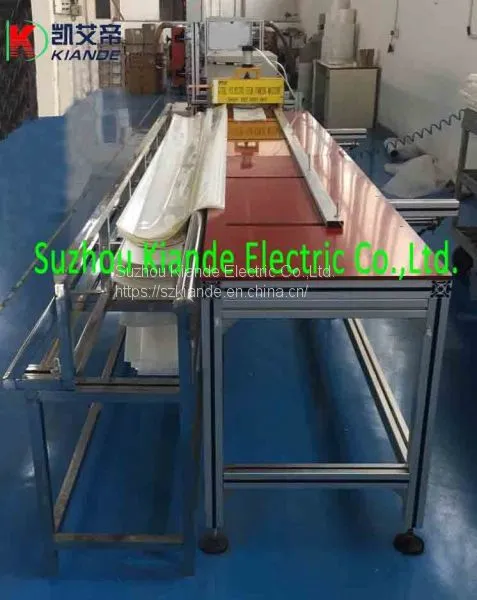

Mylar Film Forming Machine, Polyester film folding machine
Mylar film forming machine is to form the polyester film used in compact busbar by heating workmanship. The working procedure includes feeding, pre-forming, heating, forming, cutting, discharging and etc..
This machine can realize unmanned operation.
Operator only needs to input the required data on the touch screen such as conductor width, heating temperature, cutting length and formed quantity and etc. before machine starts working. The key advantages of this machine are that formed round corners are smooth, metered blanking can save materials and labor cost is saved as one operator can control several machines in the same time.
Equipment data on mylar forming machine:
序号No. | 参数 Parameters | |
设备型号 Model | KD-CXJ/D(E)-250 | |
薄膜厚度Mylar Film Thickness | 0.10mm~0.35mm | |
薄膜宽度 Mylar Film Width | 30mm~250mm(可定制其它尺寸) 30mm~250mm (other size can be customized.) | |
双层包覆 Double Layer Forming | 可以Achieved | |
薄膜宽度调整 Mylar Film Thickness Adjustment | 高档型为数控式 Digital (advanced type) | 经济型为手工式 Manual (economic type) |
控制方式 Control Mode | 数控式 Digital control | |
温度控制 Temperature Control | 自动恒温Automatic constant temperature | |
电源 Power | 380~415VAC 50~60Hz 6kW | |
设备外形尺寸 Equipment Dimension | L6000mm*W1500mm*H800mm |
