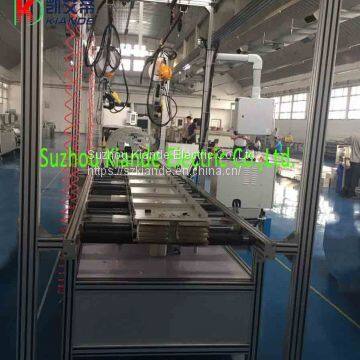

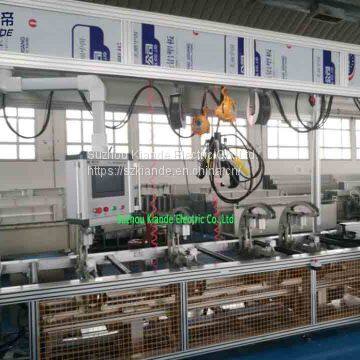

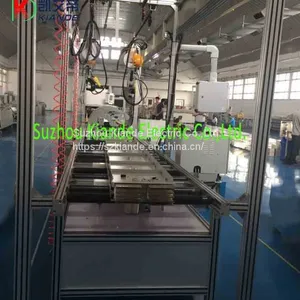

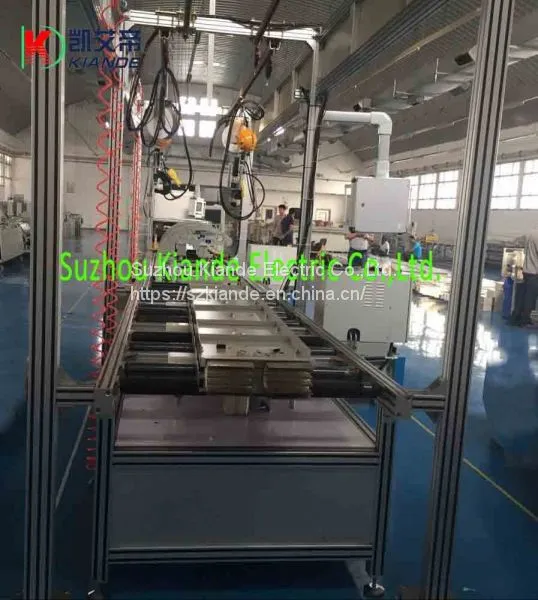

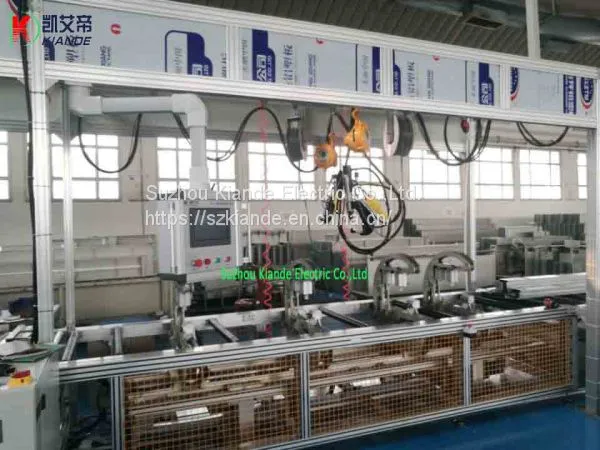

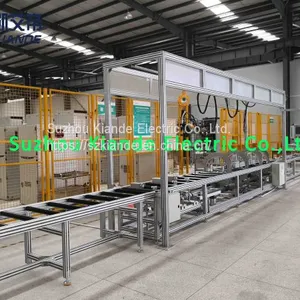

Semi-automatic Busduct Assembly Line
Semi-automatic assembly line is composed of three parts, pre-assembly station, automatic reversal station and accessory assembly station.
Pre-assembly station: Operators will pre-assemble and fix busbar main parts by the fixtures and transfer the busbar to the automatic reversal station manually.
Automatic reversal station: When busbar arrives in the reversal station, operator shall fix the busbar by clamp and start riveting on one side. After one side is done, rotators will be reversed 180 degrees for other side’s riveting.
Accessory assembly station: After busbar is riveted, operator will assemble the busbar accessories at this station.
Equipment data on semi-automatic busbar assembly line:
序号No. |
参数 Parameters |
设备型号Model |
KD-ZDX/H-4-6（4.5） |
|
最大母线高度 Max. Busbar Height |
330mm（单层） 330mm (Single Layer) |
|
最大母线长度 Max. Busbar Length |
6000mm |
|
生产效率 Working Efficiency |
约3米/4分钟 Around 3000mm/4min |
铆枪Riveting Machine |
不包含Not included |
转盘数量Rotator Nos |
4个（标配） 4 sets (standard) |
|
翻转部位长度 Length of Reversal Part |
4500mm |
|
手动升降数量 Manual Lifting Fixture Nos |
3个 3 pieces |
|
手动装配母线长度 Manual Operation Station Length |
1500mm |
吊架材质Hanger Material |
铝合金吊架 Aluminum hanger |
铆接类型Riveting Type |
人工铆接 Manual riveting |
电源Power |
380~415VAC 50~60Hz 5kW |
设备外形尺寸Equipment Dimension |
L18000mm*W800mm*H1900mm |
